NJU7201: Description5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3; Categorysemiconductor Power management; File Size203KB，6 Pages; ManufacturerNew JRC; Websitehttps://www.njr.com

Download Datasheet Parametric Compare View All

NJU7201 Overview

5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3

NJU7201 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	3
Maximum output voltage	5.25 V
Minimum output voltage	4.75 V
Maximum input voltage	12 V
Minimum input voltage	6 V
Processing package description	SOT-89, 3 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	DISCONTINUED
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	FLAT
Terminal spacing	1.5 mm
terminal coating	Tin BISMUTH
Terminal location	single
Packaging Materials	Plastic/Epoxy
Maximum voltage difference	0.6000 V
Adjustment type	Fixed Positive Voltage Low Dropout Linear Regulator Regulator
Rated output voltage	5 V

Preview

Download Datasheet

View All

NJU7201 Series

C-MOS 3-TERMINAL POSITIVE VOLTAGE REGULATOR

■

GENERAL DESCRIPTION

The

NJU7201 series

is a C-MOS 3-terminal positive voltage

regulator which contains internal accurate voltage reference, error

amplifier, control transistor and output voltage setting resistor.

The regulation voltage is fixed by internal circuits and the following

line-up of different output voltage versions are available.

The

NJU7201 series

is suitable for battery operated items and

battery back-up systems because of low operating current and low

dropout voltage.

■

FEATURES

•

Low Operating Current

(19µA typ.)

•

Wide Operating Voltage Range

•

Low Dropout Voltage

(∆V

< 0.3V 1.2 to 1.5V output, I

OUT

= 0.5mA)

(∆V

< 0.6V 2.5 to 3.5V output, I

OUT

= 20mA)

(∆V

< 0.6V 4.0 to 5.5V output, I

OUT

= 40mA)

•

Small Temperature Coefficient of Output Voltage

•

Package Outline

(TO-92/SOT-89)

•

C-MOS Technology

■

PACKAGE OUTLINE

NJU7201L(TO-92)

NJU7201U(SOT-89)

■

TERMINAL DESCRIPTION

No.

Description

GND

Input

Output

■

OUTPUT VOLTAGE LINE-UP

Output Voltage

TO-92 Type

SOT-89 Type

Output Voltage

TO-92 Type

SOT-89 Type

+1.2V

NJU7201L12

NJU7201U12

+3.5V

NJU7201L35

NJU7201U35

+1.5V

NJU7201L15

NJU7201U15

+4.0V

NJU7201L40

NJU7201U40

+2.5V

NJU7201L25

NJU7201U25

+4.5V

NJU7201L45

NJU7201U45

+2.7V

NJU7201L27

NJU7201U27

+5.0V

NJU7201L50

NJU7201U50

+3.0V

NJU7201L30

NJU7201U30

+5.2V

NJU7201L52

NJU7201U52

+3.2V

NJU7201L32

NJU7201U32

+5.5V

NJU7201L55

NJU7201U55

Note1) The SOT-89 type name is different from the marking, so it refer to attached paper correspondence table.

■

EQUIVALENT CIRCUIT

OUT

REF

GND

Ver.2003-07-23

-1-

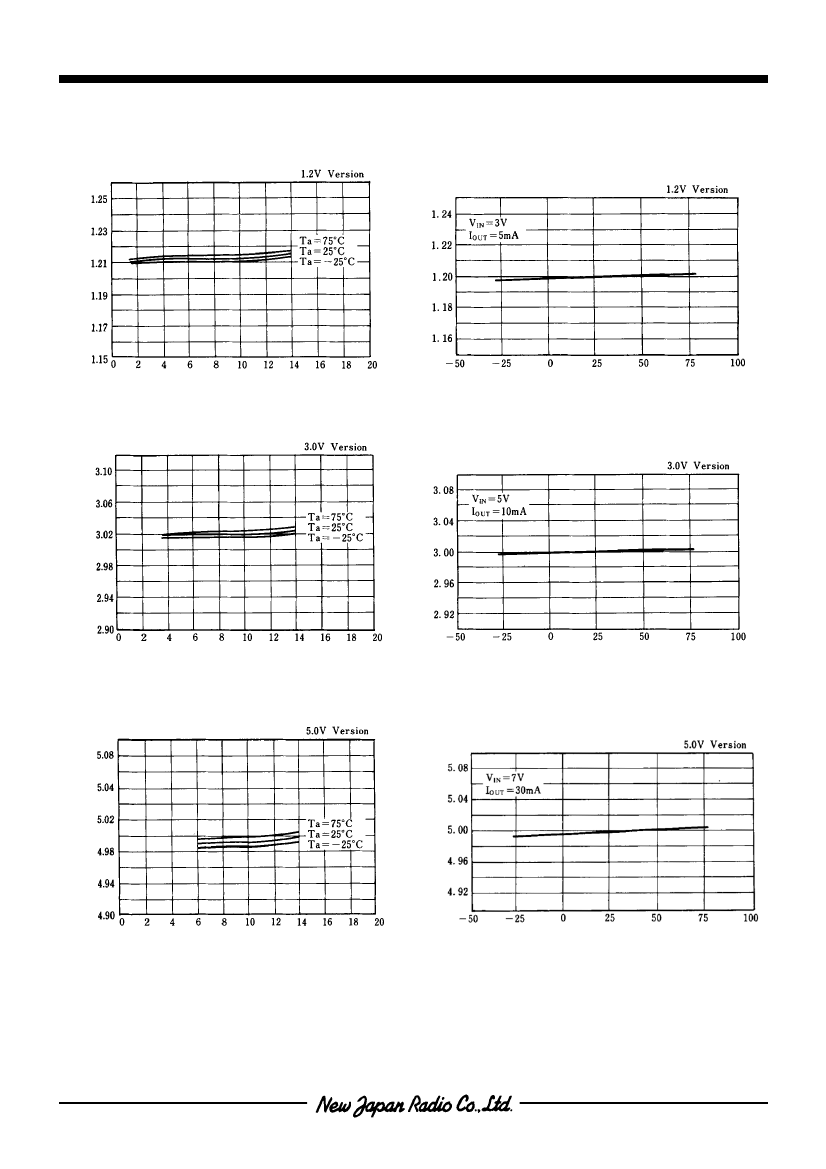

NJU7201 Related Products

	NJU7201	NJU7201L52	NJU7201L35	NJU7201L30	NJU7201L25	NJU7201L15	NJU7201L50	NJU7201L45	NJU7201L40	NJU7201L27
Description	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	3.5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PBCY3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3	5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Maximum input voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Minimum input voltage	6 V	6 V	4.5 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Processing package description	SOT-89, 3 PIN	SOT-89, 3 PIN	TO-92, 3 PIN	SOT-89, 3 PIN	SOT-89, 3 PIN	SOT-89, 3 PIN	SOT-89, 3 PIN	SOT-89, 3 PIN	SOT-89, 3 PIN	SOT-89, 3 PIN
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	DISCONTINUED	DISCONTINUED	Active	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED
Craftsmanship	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
packaging shape	Rectangle	Rectangle	ROUND	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle
Package Size	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	Yes	Yes	NO	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Terminal form	FLAT	FLAT	THROUGH-HOLE	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal spacing	1.5 mm	1.5 mm	1.27 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
terminal coating	Tin BISMUTH	Tin BISMUTH	TIN BISMUTH	Tin BISMUTH	Tin BISMUTH	Tin BISMUTH	Tin BISMUTH	Tin BISMUTH	Tin BISMUTH	Tin BISMUTH
Terminal location	single	single	BOTTOM	single	single	single	single	single	single	single
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	PLASTIC/EPOXY	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
Adjustment type	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator	Fixed Positive Voltage Low Dropout Linear Regulator Regulator
Maximum output voltage	5.25 V	5.25 V	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum output voltage	4.75 V	4.75 V	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Lead-free	Yes	Yes	-	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Maximum voltage difference	0.6000 V	0.6000 V	-	0.6000 V	0.6000 V	0.6000 V	0.6000 V	0.6000 V	0.6000 V	0.6000 V
Rated output voltage	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V
