384708: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

384708 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

384708 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.456 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

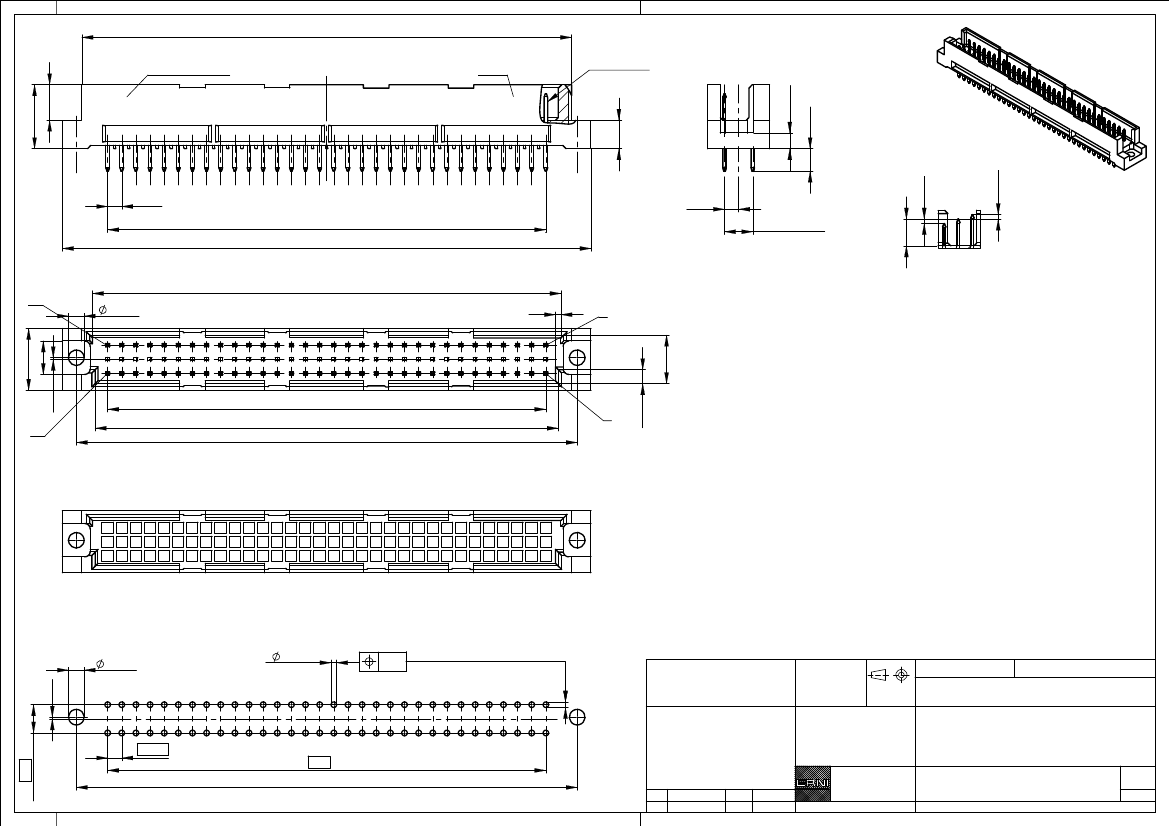

-0,2

Anforderungsstufe

class

max.11,6

6,4

-0,1

RC 1

Datum

date

ERNI

mating length

2,9

-0,3

5,2

-0,1

a b c

Stecklänge /

mating length

0,8

±0,1

0,8

±0,1

Stecklänge

XXXXXXX

2,54

78,74

max.95

±0,2

2,54

2 x 2,54 = 5,08

4,8

+0,2

L S E

84,2

a32

2,8

+0,1

+0,2

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

max.11,1

8,7

+0,1

0,3

31x2,54=78,74

83,2

±0,1

+0,4

2,5

-0,2

Lötanschluß 0,6x0,6mm /

c32

Solder Terminal 0,6x0,6mm

Isolierwerkstoff /

housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen /

performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 /

DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Bedruckung siehe Zeichnung 294905

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Marking see drawing 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

0,3

+0,1

±0,1

0,05

alle Löcher

Proprietary notice pursuant to ISO 16016 to be observed.

all holes

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2 x 2,54 = 5,08

2,54

31 x 2,54 = 78,74

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste R 64 Löt

Male Connector R 64 Solder

www.ERNI.com

Index

Date

384708

Class

STVR
