KUSB-AS-2-N-BLK datasheet, PDF

Datasheet> All Categories > The connector> The connector> KUSB-AS-2-N-BLK

KUSB-AS-2-N-BLK: DescriptionUSB Connectors A TYPE RECEPTACLE STACKED BLACK; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KUSB-AS-2-N-BLK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KUSB-AS-2-N-BLK	-	-	View	Buy Now

KUSB-AS-2-N-BLK Overview

USB Connectors A TYPE RECEPTACLE STACKED BLACK

KUSB-AS-2-N-BLK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kycon
Reach Compliance Code	compliant
Other features	OTHER STACKING CONNECTOR: 4 CONTACTS
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.614 inch
subject depth	0.669 inch
body length	0.571 inch
Body/casing type	JACK
Connector type	USB CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	USB, SER A FLAT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	1500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	35.1392 N
Insulation resistance	1000000000 Ω
insulator material	PBT THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	TWO
PCB row number	2
Number of ports	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.6162 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN LEAD
Shell material	BRASS
Terminal length	0.11 inch
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	10.2304 N

Preview

Download Datasheet

View All

2.00

2.50

3.07

pos. 1 (top)

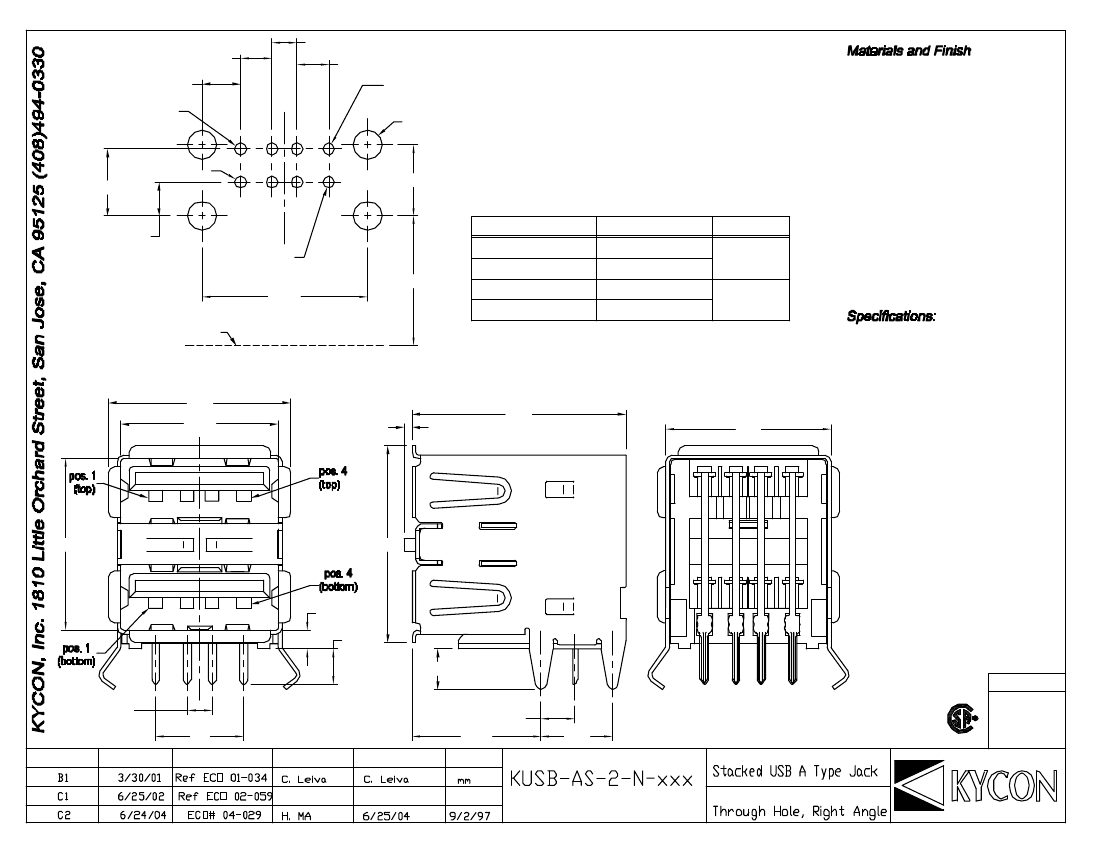

4-Ø2.30±0.08

Insulator: PBT thermoplastic,

UL94V-0 rated, black or white color

Contact Material: phosphor bronze

5.68

Contact Plating Options:

Standard: gold flash on contact area,

120u" tin-lead on soldertails, all over

Part Number

2.71

pos. 4 (bottom)

10.28 ref.

13.14

KUSB-AS-2-N-WHT

KUSB-AS-2-N-WHT-30

KUSB-AS-2-N-BLK

KUSB-AS-2-N-BLK-30

Gold Flash (standard)

30u" Gold (-30 option)

Gold Flash (standard)

30u" Gold (-30 option)

Black

White

Contact Area Plating

Insulator Color

50u" nickel underplate

-30 Option: 30u" gold on contact area,

120u" tin-lead on soldertails, all over

50u" nickel underplate

2.50

8-Ø0.92±0.08

pos. 4 (top)

Shell: brass, 0.3mm thick,

120u" tin-lead plated over

50u" copper underplate

pos. 1 (bottom)

5.33

PCB Edge

Rated Voltage: 30V AC (rms)

Contact Current Rating: 1A max.

Contact Resistance: 30 milliohms max.

Recommended PCB Layout

(top view)

14.5

12.50

17.0

0.6

13.1

Insulation Resistance: 1000 megohms min.

Dielectric Withstanding: 500V AC

Insertion Force: 3.57kg max.

Extraction Force: 1.02kg min.

Operating Temperature: -25°C to +80°C

13.62

15.6

Durability: 1500 mating cycles min.

1.5

2.8

3.2

Tolerances

X.X ± 0.35

X.XX ± 0.25

Unless Stated

Otherwise

2.0

7.0

REVISION

DATE

DESCRIPTION

DRAWN BY

REV CHECK BY

10.25

UNITS

2.71

5.68

LR78160

REVISED BY

REV CHECK DATE

DATE
