1.02
26.0
1.16
29.5
0.63
16.0
FLANGE
SEE TABLE
FOR FINISH
1.22
31.0
2X
0.268
6.8
REF
DUST CAP
(2) PLACES
SEE TABLE
0.748
19.0
0.945
24.0
0.138
3.5
(2) PLACES
RECOMMENDED
PANEL CUT-OUT
NUT
LOCKWASHER
0.093 REF
2.4
0.945
24.0
0.138 [3.5] THRU
0.230 [5.8] X 82°
(2) PLACES
ST2 ADAPTER
SEE TABLE
NOTES:
1. INSERTION LOSS: 0.25 dB MAX.
2. OPERATION TEMP: -40 C TO +80 C.
3. MATERIALS:
ST2 ADAPTER:
BODY - ZINC ALLOY
RETENTION WASHER - BRASS, NICKEL PLATED
SLEEVE - CERAMIC, SINGLE-MODE
- COPPER ALLOY, MULTI-MODE
DUST CAPS - PVC
NUT - COPPER ALLOY, NICKEL PLATED
LOCKWASHER - STEEL, NICKEL PLATED
FLANGE - ZINC ALLOY
4. THIS PRODUCT IS RoHS COMPLIANT.
PART
NUMBER
EHST2
EHST2M
EHST2B
EHST2MB
ST2 ADAPTER
SEE NOTE 3
SINGLE-MODE
DOUBLE-MODE
SINGLE-MODE
DOUBLE MODE
DUST CAP
COLOR
RED
BLACK
RED
BLACK
FLANGE FINISH
NICKEL
NICKEL
BLACK CHROME
BLACK CHROME
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
B
A
REV
SIZE
FINISH
WIDTH
MULT
MATERIAL
SPEC No.
SCALE
LBS/M
TEMPER
0.02
0.005
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
1.5:1
27621
26306
ECO NUMBER
12-4-15
12/1/08
DATE
TO
RS
BY
TJK
TJK
APVD
5/12/08
JGK
RS
6/2/09
TJK
7/16/09
PART No.
APVD
SHEET
1
OF
REVISIONS
DO NOT SCALE DRAWING
NAME

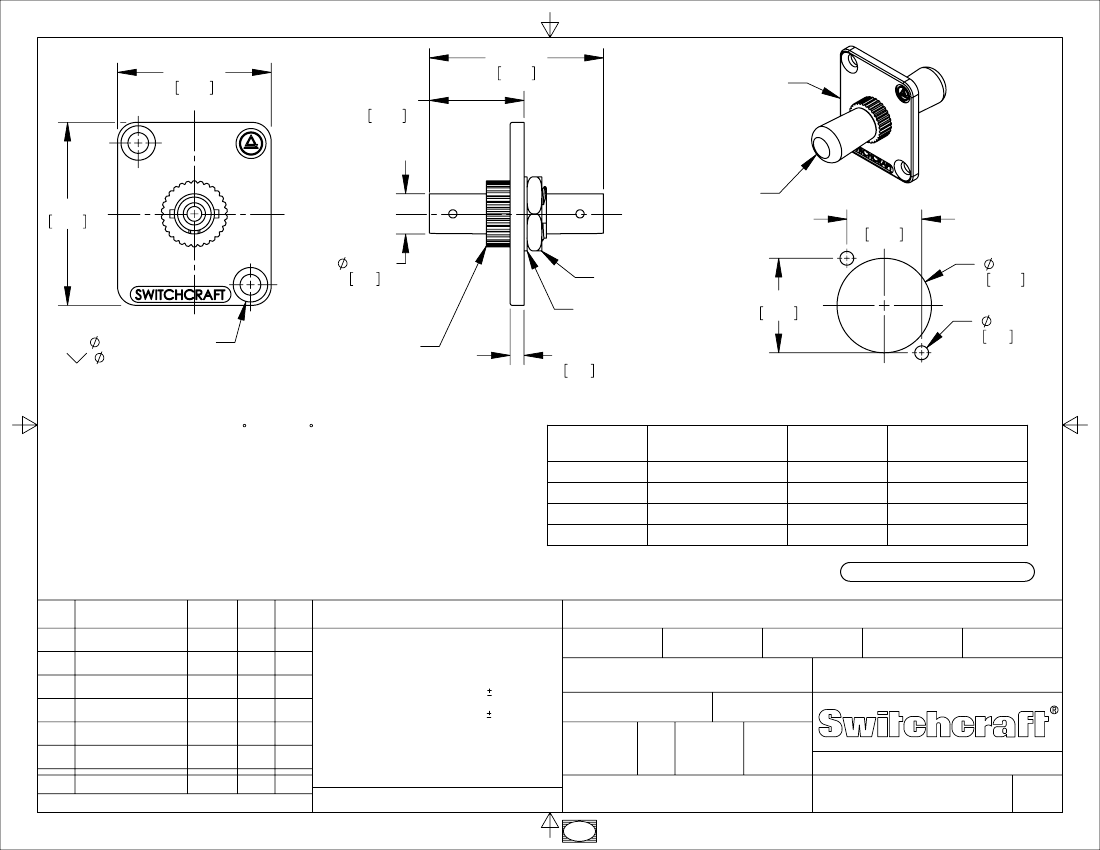

E SERIES ST2
FIBER OPTIC ADAPTER, RoHS
A
1
REV
EHST2_SERIES
SolidWorks CAD File
B
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Switchcraft
:
EHST2M EHST2 EHST2MB EHST2B
