HC5117-156 datasheet, PDF - EEWORLD Datasheet

HC5117-156: DescriptionRegulator, 1 Output, Hybrid,; CategoryPower/power management The power supply circuit; File Size367KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

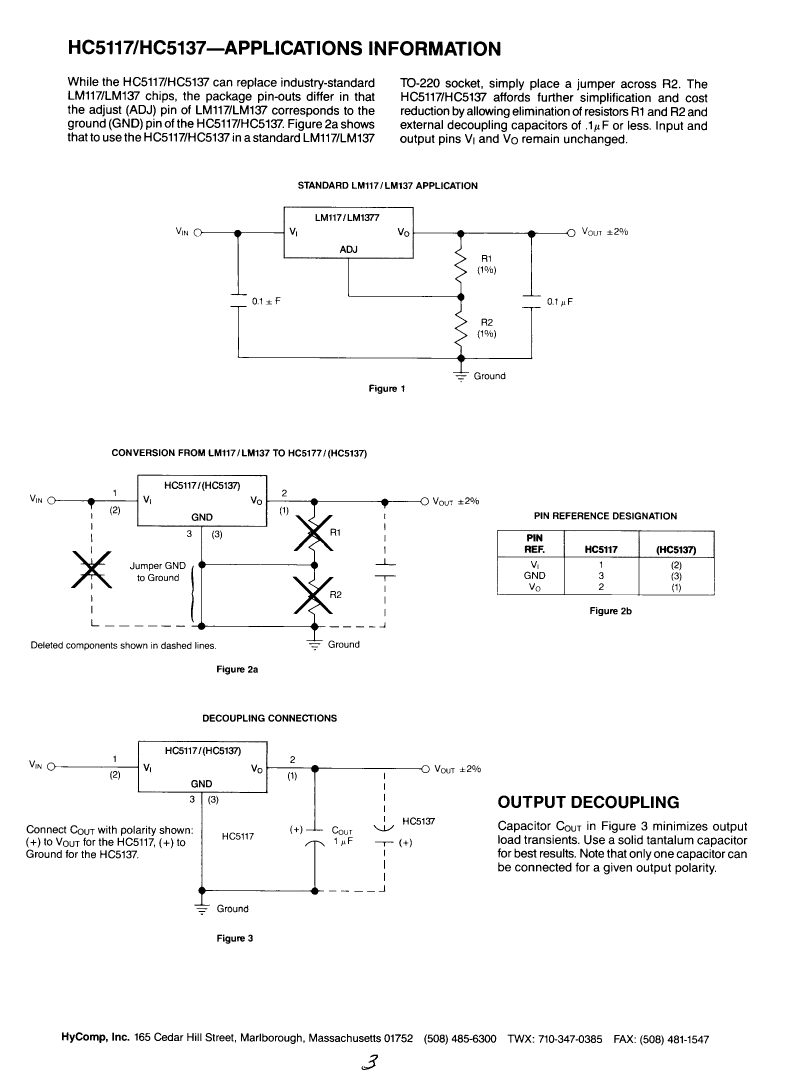

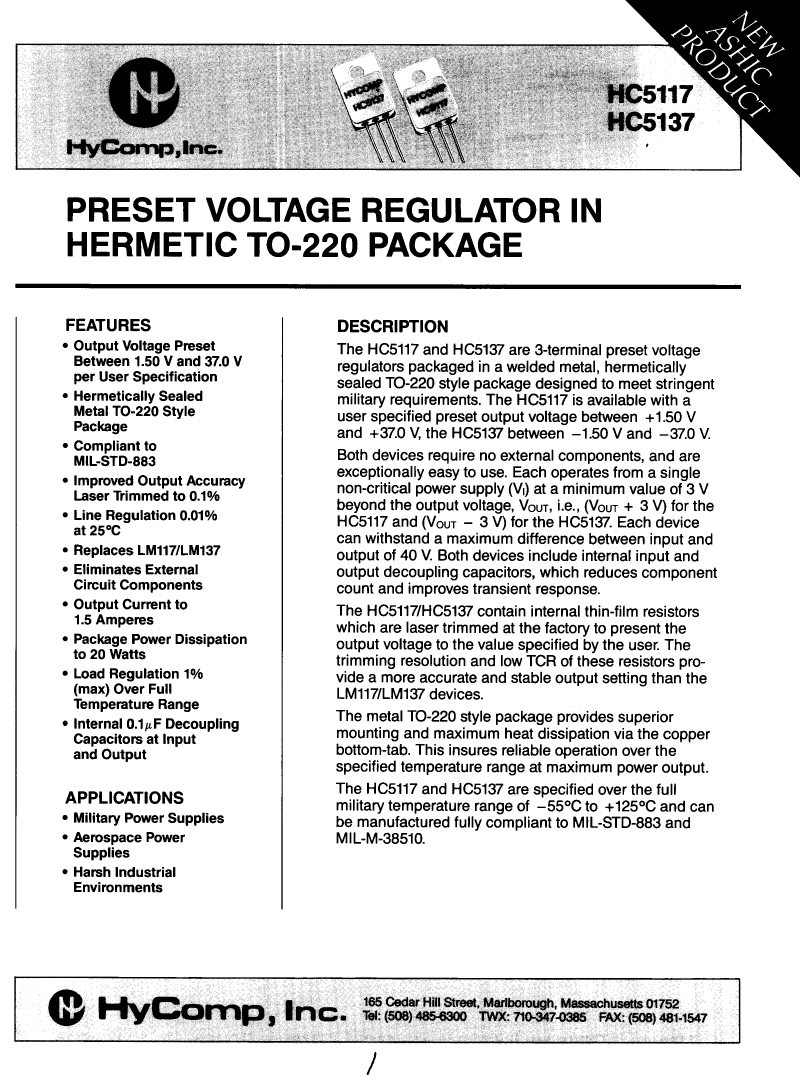

HC5117-156 Overview

Regulator, 1 Output, Hybrid,

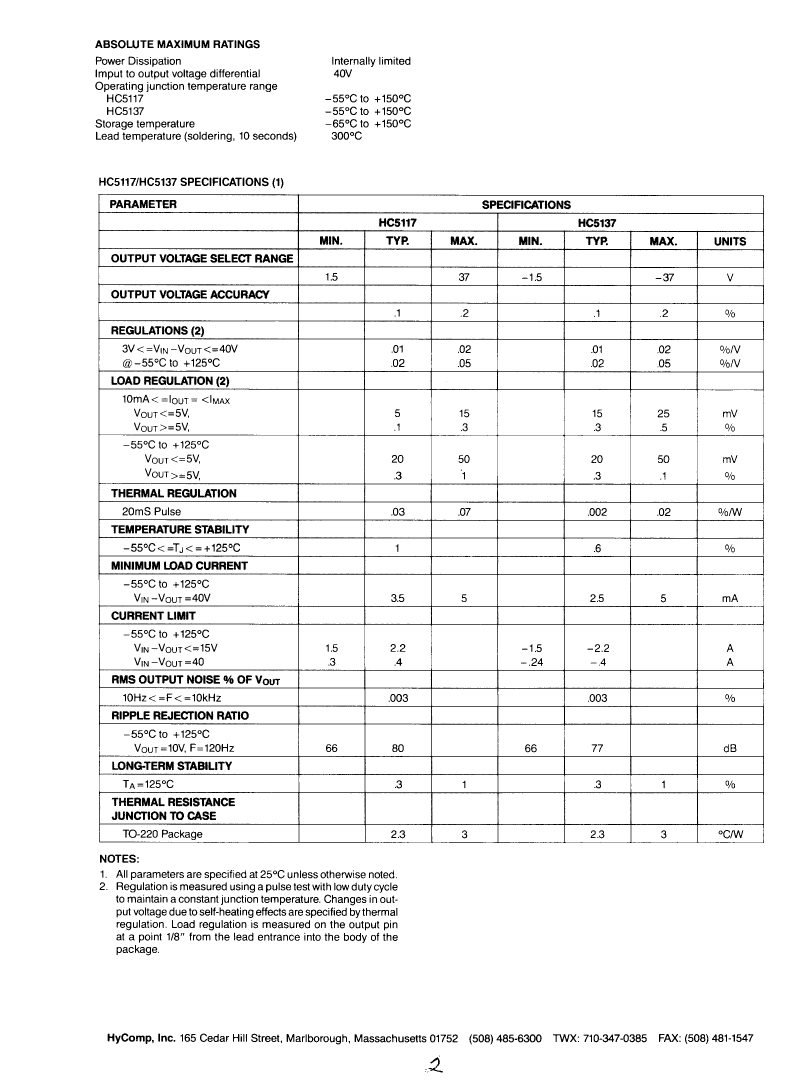

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave

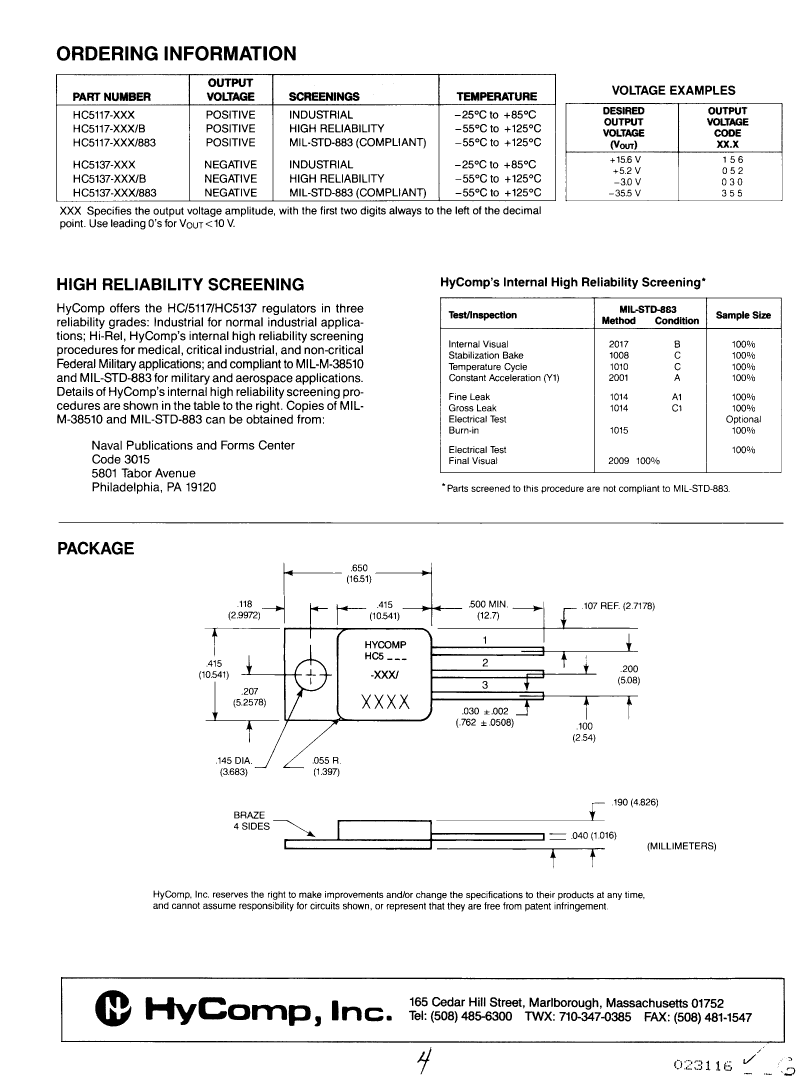

Parts packaging code	SFM
Contacts	3
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	3 V
Maximum absolute input voltage	40 V
JESD-609 code	e0
Maximum load regulation	0.015%
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output current 1	2.2 A
Nominal output voltage 1	15 V
Package body material	CERAMIC
Encapsulate equivalent code	SIP3,.1TB
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	0.2%
Base Number Matches	1

	HC5117-156	HC5137-030/B
Description	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,
Is it Rohs certified?	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Adjustability	FIXED	FIXED
Nominal dropback voltage 1	3 V	3 V
Maximum absolute input voltage	40 V	40 V
JESD-609 code	e0	e0
Maximum load regulation	0.015%	0.05%
Output times	1	1
Number of terminals	3	3
Maximum operating temperature	85 °C	125 °C
Minimum operating temperature	-25 °C	-55 °C
Maximum output current 1	2.2 A	1.2 A
Nominal output voltage 1	15 V	-3 V
Package body material	CERAMIC	CERAMIC
Encapsulate equivalent code	SIP3,.1TB	SIP3,.1TB
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	HYBRID	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE
Maximum voltage tolerance	0.2%	0.2%
Base Number Matches	1	1
