M85049-10-63W: DescriptionCircular MIL Spec Backshells EMI/RFI ENV BKSHLL SH SZ 32; CategoryThe connector; File Size195KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-10-63W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-10-63W	-	-	View	Buy Now

M85049-10-63W Overview

Circular MIL Spec Backshells EMI/RFI ENV BKSHLL SH SZ 32

M85049-10-63W Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
MIL Type	MIL-DTL-5015, MIL-DTL-26482 II
Product	Environmental EMI/RFI Backshells
Shell Style	Straight
Shell Size	10
Shell Plating	Olive Drab Cadmium over Electroless Nickel
Shell Material	Aluminum Alloy
Mating Style	Rotatable Coupling
Mounting Angle	Straight
Factory Pack Quantity	1

Preview

Download Datasheet

View All

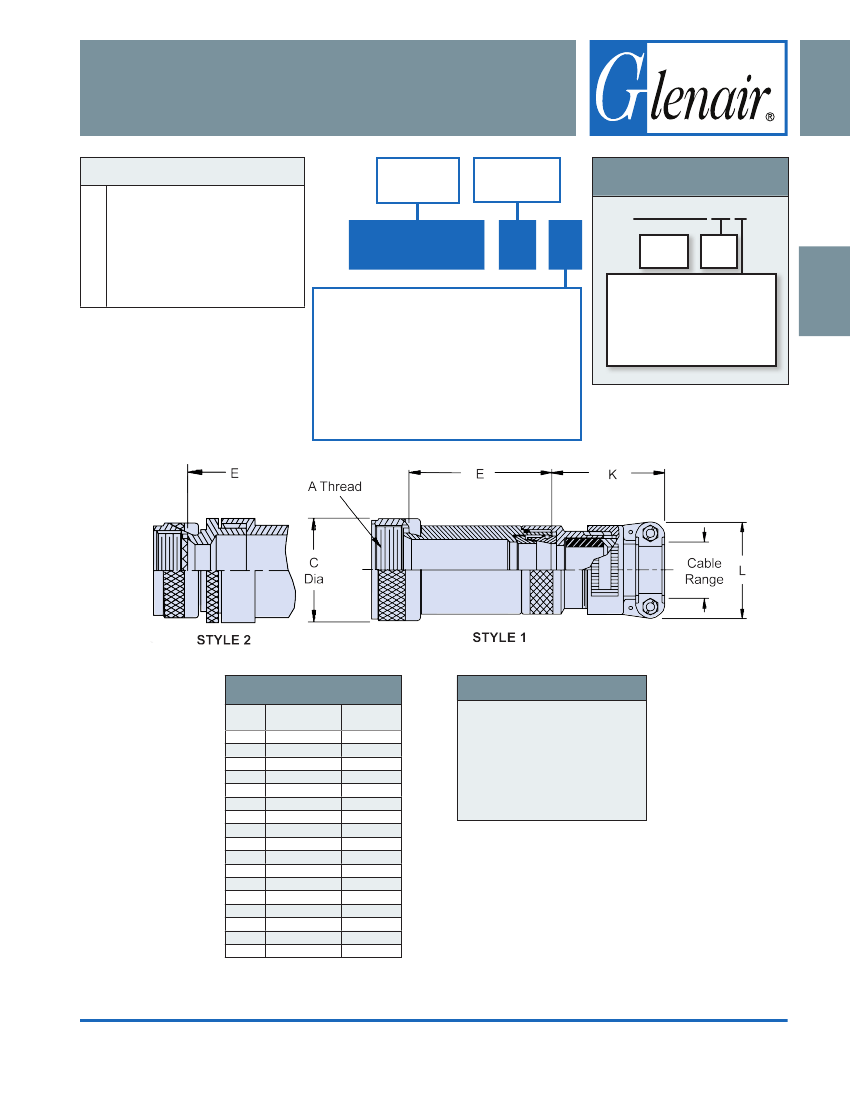

AS85049/10 and MS3437A

Straight EMI/RFI Environmental Backshell

CONNECTOR DESIGNATOR:

AS50151 Series AS34001

MIL-DTL-26482 Series II

AS81703 Series III

MIL-DTL-83723 Series I & III

40M39569, DEF 5326-3, EN 2997

EN 3646, ESC 10, ESC 11, LN 29504

NFC93422 Series HE302

PAN 6432-1, PAN 6432-2, PATT 602

Basic

Part Number

Dash Number

(Table II)

Superseded

Part Number

MS3437A 21 C

M85049/10

Basic

Part No.

Dash

No.

Finish / Material

= Black Cadmium / Stainless Steel

= Electroless Nickel / Aluminum

= Passivated / Stainless Steel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel / Aluminum

= Aluminum, Nickel Fluorocarbon Polymer

= Aluminum, Zinc-Nickel, Black

= Stainless Steel, Nickel Flurocarbon Polymer

= Stainless Steel, Zinc-Nickel, Black

(Material is Aluminum Only)

Cadmium Olive Drab over Nickel

Cadmium Olive Drab

Electroless Nickel

Finish

TABLE I: Shell Size

and Dimensions

Shell

Size

A Thread

Class 2B

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

C Dia

Max

.67 (17.0)

.62 (15.7)

.73 (18.5)

.86 (21.8)

.98 (24.9)

1.11 (28.2)

1.22 (31.0)

1.34 (34.0)

1.47 (37.3)

1.59 (40.4)

1.97 (50.0)

2.22 (56.4)

2.47 (62.7)

2.72 (69.1)

2.97 (75.4)

3.22 (81.8)

1.65 (41.9)

APPLICATION NOTES

For complete dimensions see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as the

accommodation range for the wire

bundle or cable. Dimensions shown

are not intended for inspection

criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-27

E-Mail: sales@glenair.com

AS85049
