85017-0115

CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

85017-0115 Online Shopping

Suppliers Part Number Price MOQ In stock
85017-0115 - - View Buy Now

85017-0115 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresPANEL MOUNTABLE
body width0.437 inch
subject depth0.457 inch
body length3.74 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact arrangementS60C4
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialBRONZE
Contact styleHYBRID
DIN complianceYES
Durability400 Cycles
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.228 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts60
UL Flammability Code94V-0
Base Number Matches1

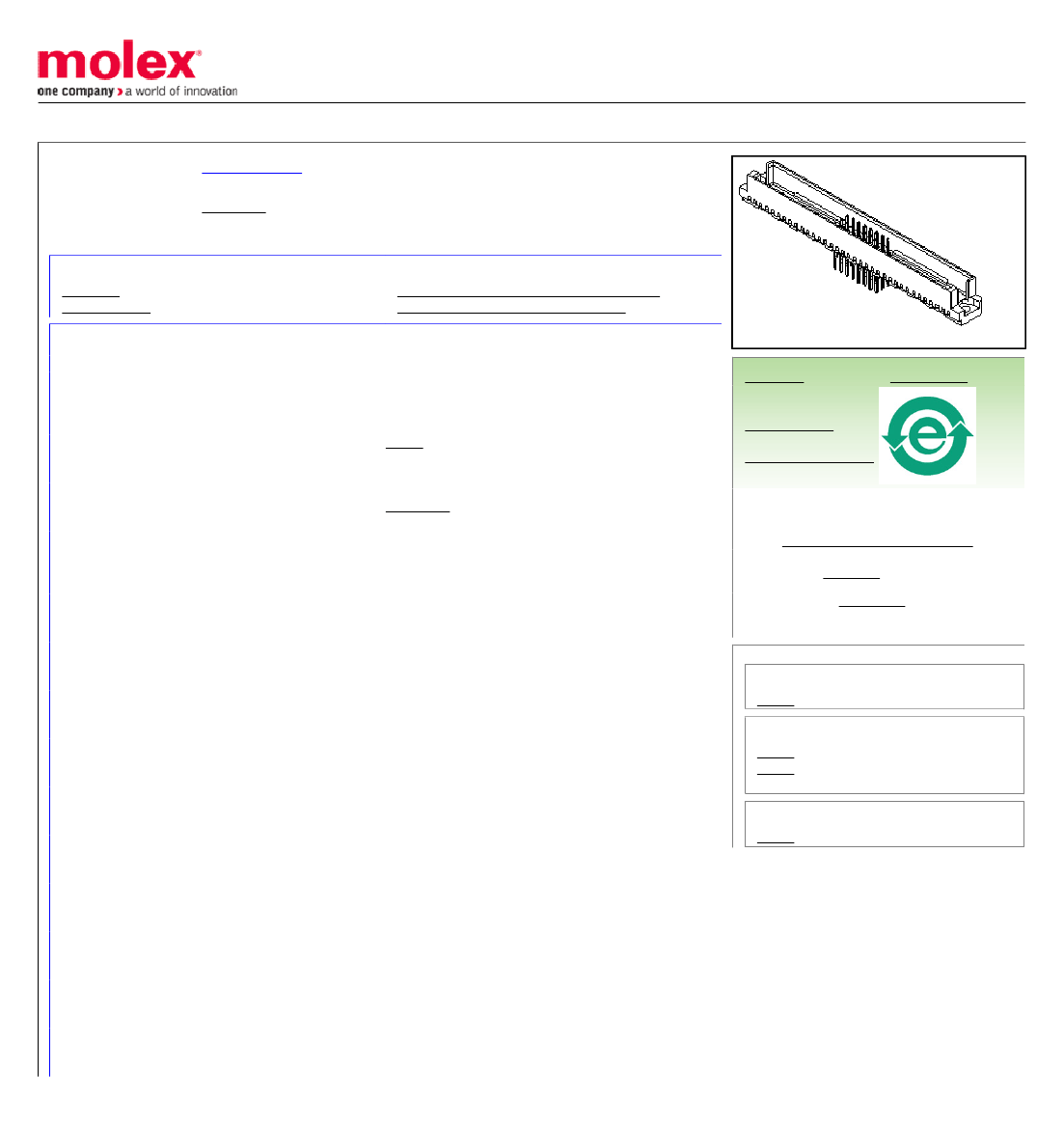

This document was generated on 09/05/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
85017-0115
Active
DIN 41612
2.54mm Pitch DIN 41612/EIC 603-2 Mixed Layout Connector, Male Style M (Hybrid
type), Inverse Press-Fit, 0.60µm Gold (Au) Selective, 64 Circuits , Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-85013-0002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
UPC
Backplane Connectors
85017
Backplane
Mixed Layout
PCB Header
DIN 41612
IEC 603-2/DIN 41612
M
800753874916
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
64
64
60 SignAl , 4 Power
Gray
400
No
94V-0
No
Yes
Phosphor Bronze
Gold
Tin
Polyester
10.634/g
20
Open Pin Field
3
Vertical
5.80mm
No
Yes
1.60mm
Tray
2.54mm
2.54mm
0.610µm
0.406µm
No
Yes
No
Search Parts in this Series
85017Series
Mates With
85048 Straight Female Style M Receptacle.
85056 Straight Female Style M "inverse"
Receptacle
Use With
85023 DIN 41612 Coaxial Contact
