M85049-47SS10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049-47SS10

M85049-47SS10: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters STRAIN RLF SH SZ REF 10/11STEEL; CategoryThe connector; File Size156KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-47SS10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-47SS10	-	-	View	Buy Now

M85049-47SS10 Overview

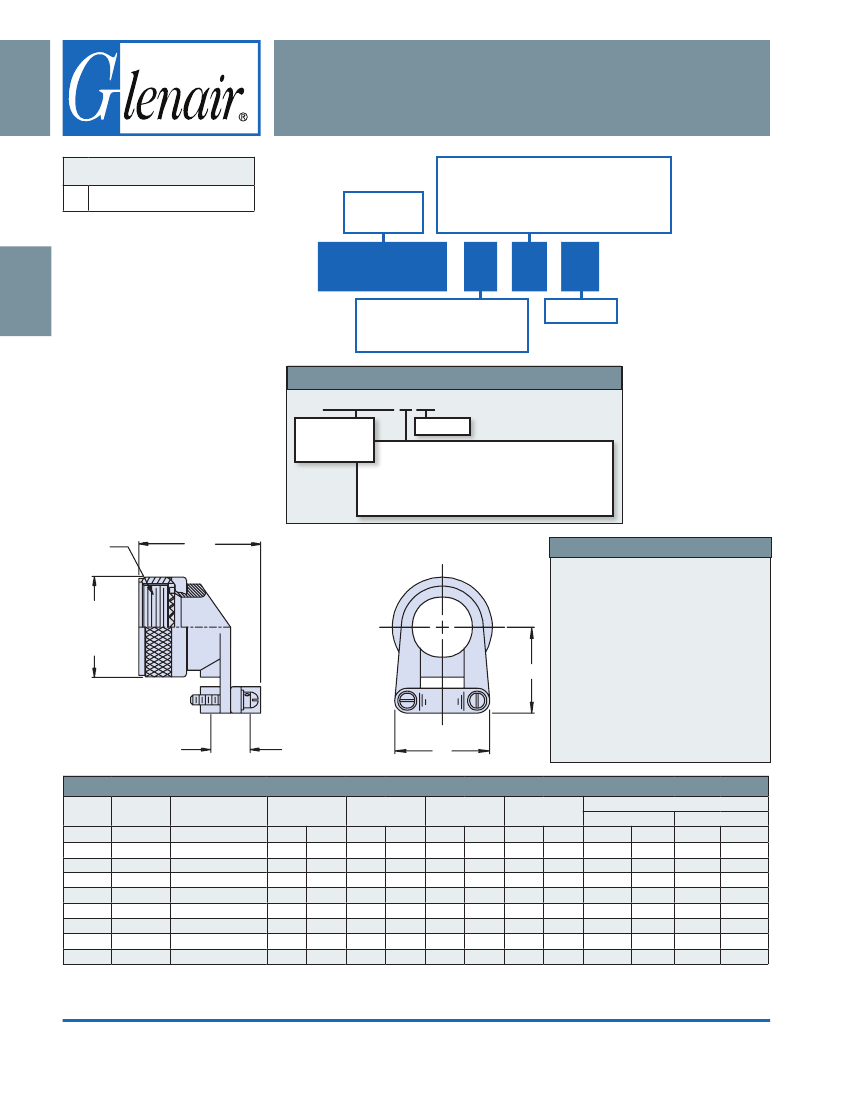

Circular MIL Spec Strain Reliefs u0026 Adapters STRAIN RLF SH SZ REF 10/11STEEL

M85049-47SS10 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Strain Reliefs & Adapters
Manufacturer	Glenair
Product	Strain Reliefs
MIL Type	MIL-DTL-38999 I, II
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

Material and Finish Designator

= Aluminum, Electroless Nickel

= 300 Series Steel, Passivated

= Aluminum, 1000 Hour Cadmium

Olive Drab over Electroless Nickel

AS85049/47 and MS27507

90° Strain Relief

AS85049

MIL-DTL-38999 Series I and II

Basic

Part Number

FOR NEW DESIGN

USE AS85049/123

M85049/47

Dash No.

= Self-Locking

Omit for Non-Self-Locking

= Non-Detented, Self-Locking

Superseded Part Number

MS27507-B 10

Basic Part No.

(Non-Self-

Locking)

Dash No.

Metal and Finish Designator

A = Aluminum Cadmium Olive Drab over Electroless Nickel

C = Aluminum, Cadmium Olive Drab

N = Aluminum, Electroless Nickel

D = 300 Series Steel, Cadmium Black Plate

S = 300 Series Steel, Passivate

A Thread

APPLICATION NOTES

Assembly to be identified with

manufacturer’s name and part

number, space permitting.

Cable Entry is defined as the

accommodation entry for the

wire bundle or cable.

Dimensions are not intended for

inspection criteria.

For complete dimensions, see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Self-Locking

Only

Cable

Entry

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Dash

No.

Shell Size

Ref.

8/9

10/11

12/13

14/15

16/17

18/19

20/21

22/23

24/25

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

ØE

Max

.86

(21.8)

.98

(24.9)

1.16 (29.5)

1.28 (32.5)

1.41 (35.8)

1.52 (38.6)

1.64 (41.7)

1.77 (45.0)

1.89 (48.0)

Max

1.38 (35.1)

1.46 (37.1)

1.63 (41.4)

1.80 (45.7)

1.82 (46.2)

1.90 (48.3)

2.04 (51.8)

2.15 (54.6)

Max

1.00 (25.4)

1.10 (27.9)

1.25 (31.8)

1.30 (33.0)

1.35 (34.3)

1.60 (40.6)

1.75 (44.5)

1.85 (47.0)

Max

.85

(21.6)

.90

(22.9)

1.10 (27.9)

1.15 (29.2)

1.30 (33.0)

1.50 (38.1)

1.60 (40.6)

1.70 (43.2)

1.80 (45.7)

098

.153

.190

.260

.283

.325

.343

.381

.418

Min

Cable Entry

(2.5)

(3.9)

(4.8)

(6.6)

(7.2)

(8.3)

(8.7)

(9.7)

(10.6)

.234

.328

.457

.614

.634

.698

.823

.853

Max

(5.9)

(8.3)

(11.6)

(15.6)

(16.1)

(17.7)

(20.9)

(21.7)

Dimensions in inches (millimeters) and are subject to change without notice.

Rev. 10-23-14

Mil-Spec Backshells

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-70

E-Mail: sales@glenair.com
