Insulated Terminals and Disconnects

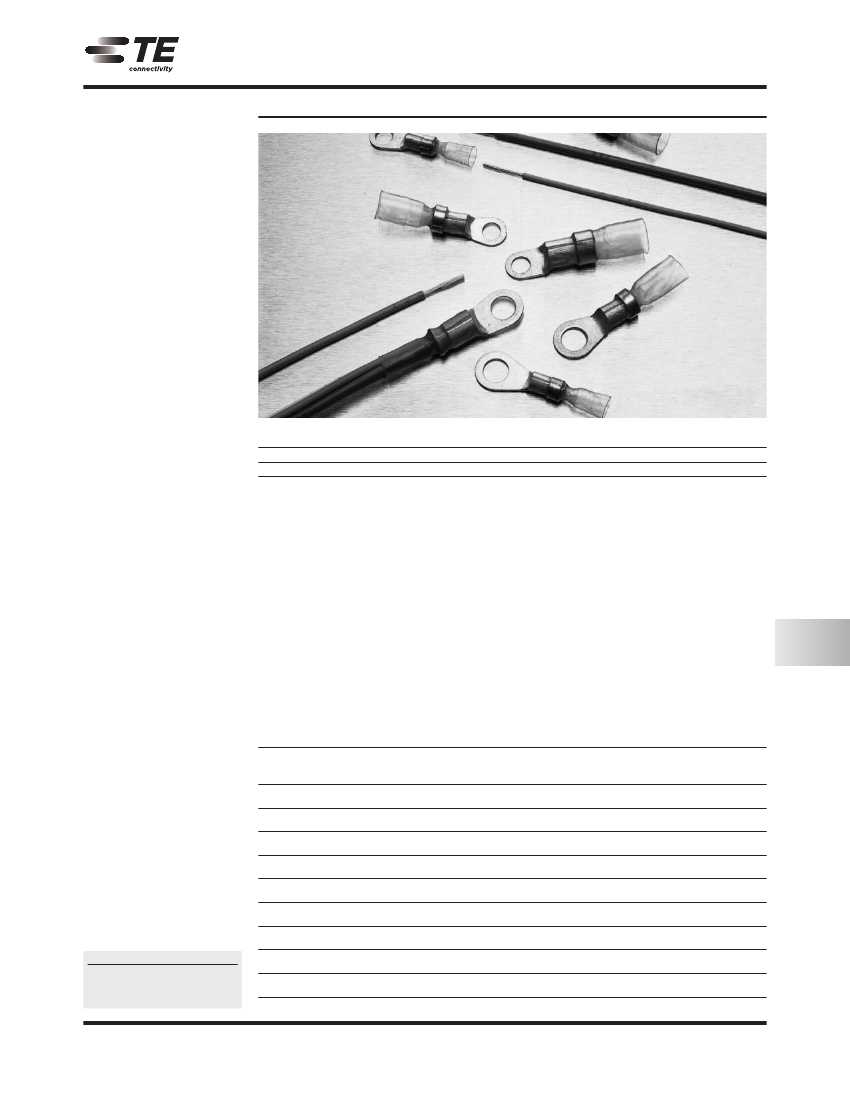

SolderGrip Self-Fixturing Insulated Terminals
Product Facts
Transparent insulation
sleeve provides
encapsulation,
inspectability, strain relief,
and insulation
■
Spiral copper coil grips and
compresses the conductors
for optimum solder
connection
■
Prefluxed solder preform
provides a controlled
soldering process.
■
One-piece design for easy
installation
■
Accommodates a wide
variety of conductor types,
quantities, sizes, and
plating types unmatched by
any other termination
technique
■
Parts meet the performance
requirements of
MIL-T-7928G
■
Product option
Product Series
SGRT
Environmental Protection
Splashproof (not RoHS compliant)
Product Selection Process
1. Determine the wire com-
bination (number of wires
and size) of the wire bun-
dle you wish to terminate.
2. Use Table C to select the
correct terminal for AWG
wire combination.*
Example: For connecting
a bundle with one 12
AWG wire (1 #12) and
two 18 AWG wires (+ 2
#18) to a terminal, you
need an SGRT-4-XX
terminal.
3. Determine the correct
stud size.
Applications
Used for terminating
multiple wires to terminals.
4. Select the correct part
number from Table A for
that stud size in the termi-
nal series and size you
selected in Step 2.
Example: If the stud size
is 1/4, select part number
SGRT-4-06.
5. Verify that the wire bundle
(with wire insulation) does
not exceed the maximum
diameter allowed for the
part you selected. Simply
check the bundle’s
diameter against the
maximum diameter that
Table A lists for that part.
Maximum
Bundle
Diameter†
4.1 [.161]
5.0 [.195]
—
—
—
6.5 [.255]
—
9.0 [.355]
—
Maximum
Amp
Rating
12.5 A
15 A
15 A
15 A
15 A
33 A
33 A
56 A
56 A
6. Verify that the total
amperage to be applied
does not exceed the
maximum amp rating for
the part as specified in
Table A.
*If the wire combination is
not listed in Table B, use
the CMA (mm
2
) method of
determining wire bundle
size (see “CMA/mm
2
Calculation” on page 8-36).
Using Table B, select the
smallest size part that will fit
your total wire CMA (mm
2
)
value.
8
Electrical Interconnect Products
Table A. Part Number
Selection
SolderGrip
Part No.
SGRT-1-02
SGRT-2-03
SGRT-2-04
SGRT-2-05
SGRT-2-06
SGRT-3-06
SGRT-3-08
Stud
Size
2 [2]
3 [6]
4 [8]
5 [10]
6 [1/4]
6 [1/4]
8 [5/16]
6 [1/4]
8 [5/16]
Available in:
Americas
Europe
Asia Pacific
SGRT-4-06
■
■
■
SGRT-4-08
Wire Range
(Min.–Max.)
CMA [mm
2
]
1400–5000
[0.7–2.5]
2400–6000
[1.2–3.0]
2400–6000
[1.2–3.0]
2400–6000
[1.2–3.0]
2400–6000
[1.2–3.0]
5000–13,200
[2.5–6.6]
5000–13,200
[2.5–6.6]
12,000–22,400
[6.0–11.2]
12,000–22,400
[6.0–11.2]
Typical
Length
38 [1 1/2]
38 [1 1/2]
38 [1 1/2]
38 [1 1/2]
38 [1 1/2]
44.5 [1 3/4]
51.0 [2]
44.5 [1 3/4]
51 [2]
†Maximum bundle diameter is measured over wire insulation.
8-37
Catalog 1654025
Revised 5-12
www.te.com
