74061-1134: CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

74061-1134 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74061-1134	-	-	View	Buy Now

74061-1134 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.85 inch
subject depth	0.484 inch
body length	1.063 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	74061
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	8
Maximum operating temperature	105 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.1176 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	80

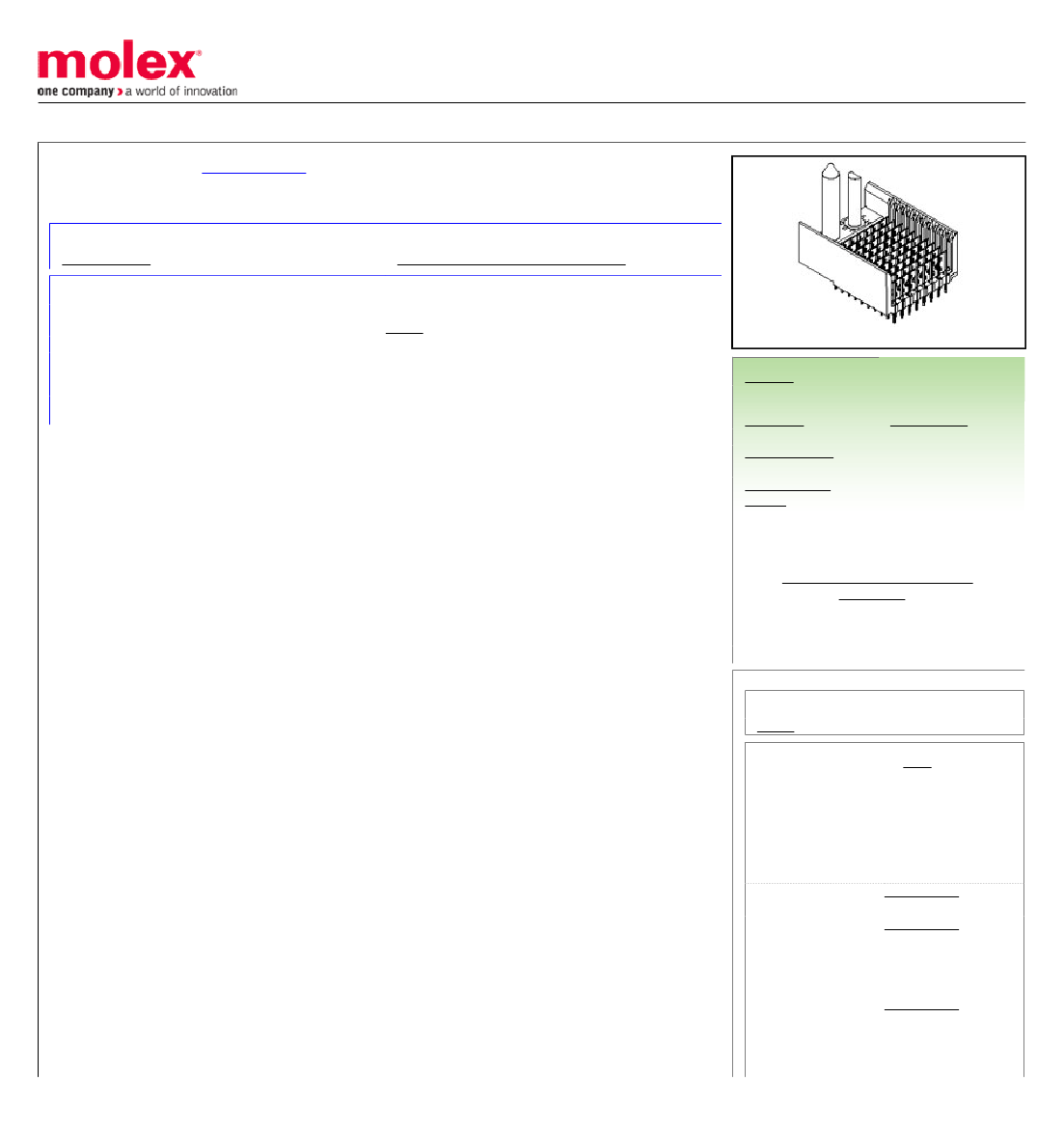

Preview

Download Datasheet

View All

This document was generated on 03/30/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

General

Product Family

Series

UPC

Physical

Net Weight

Material Info

0740611134

Active

VHDM BP 8R 10C ASSY ADV MATE SHLD

RoHS Certificate of Compliance (PDF)

Backplane Connectors

74061

756054165645

9.358/g

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Reviewed

Search Parts in this Series

74061 Series

Application Tooling

|

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

8-Row Shield

0622016100

Extraction Tool

Insertion Module

0622020205

for Advanced Mate

Signal Header, 8-

Row by 10-Wide,

20.00mm

Insertion Module

0622020209

for Standard Shield

Signal Header, 8-

Row by 10-Wide,

20.00mm
