NJMDAC-08C

Description
PARALLEL, 8 BITS INPUT LOADING, 0.15 us SETTLING TIME, 8-BIT DAC, PDIP16
Categorysemiconductor    logic
File Size208KB,7 Pages
ManufacturerNew JRC
Websitehttps://www.njr.com
Download Datasheet Parametric Compare View All

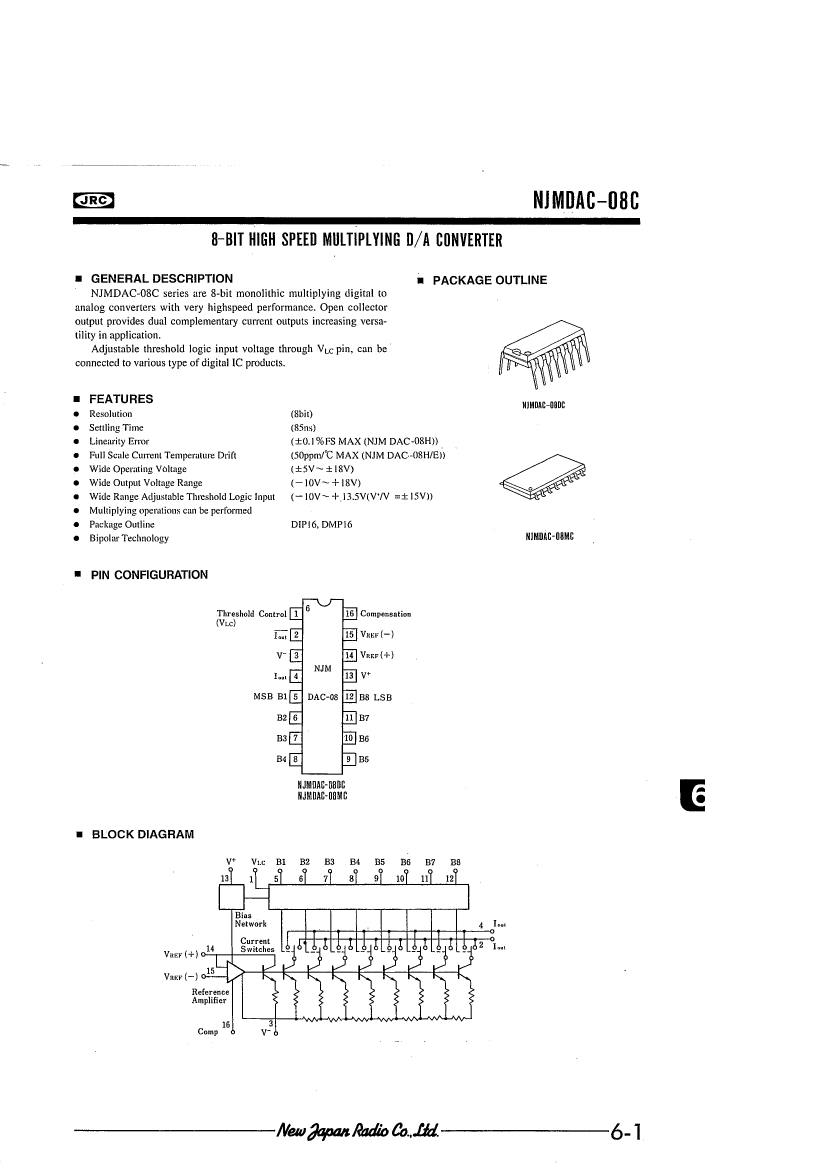

NJMDAC-08C Overview

PARALLEL, 8 BITS INPUT LOADING, 0.15 us SETTLING TIME, 8-BIT DAC, PDIP16

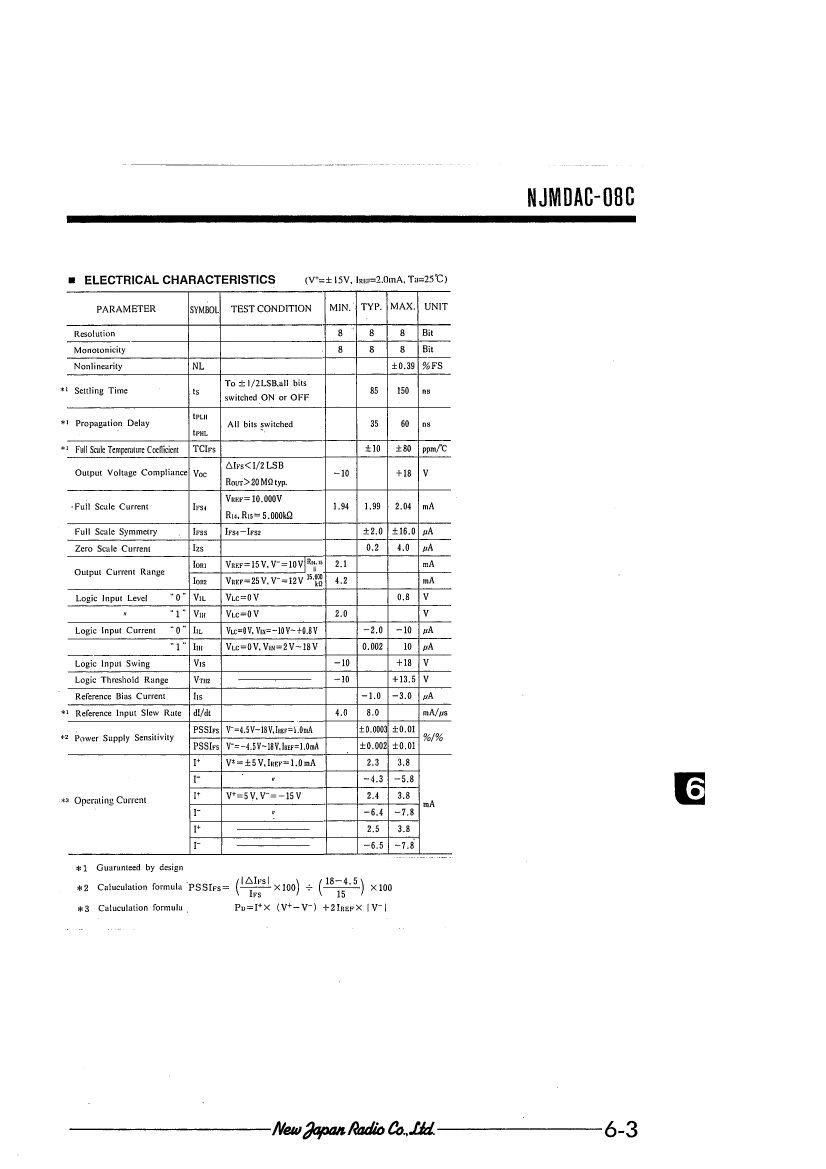

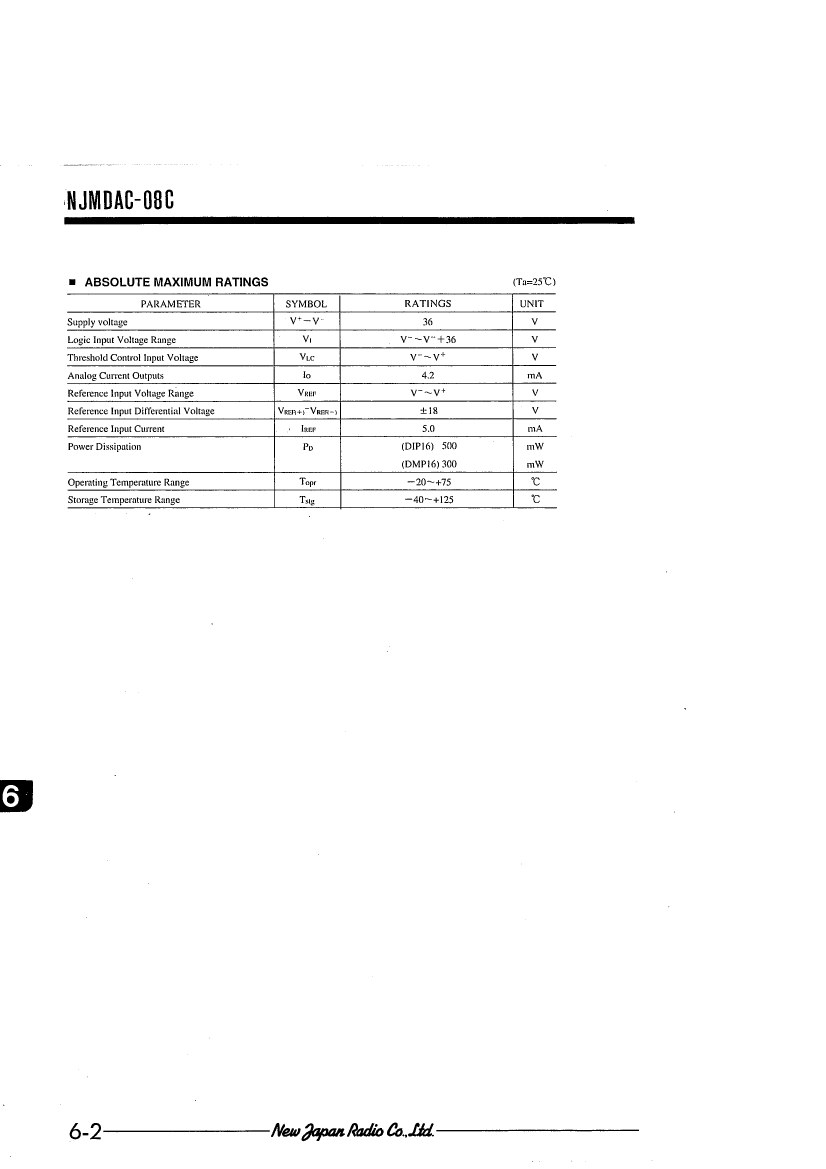

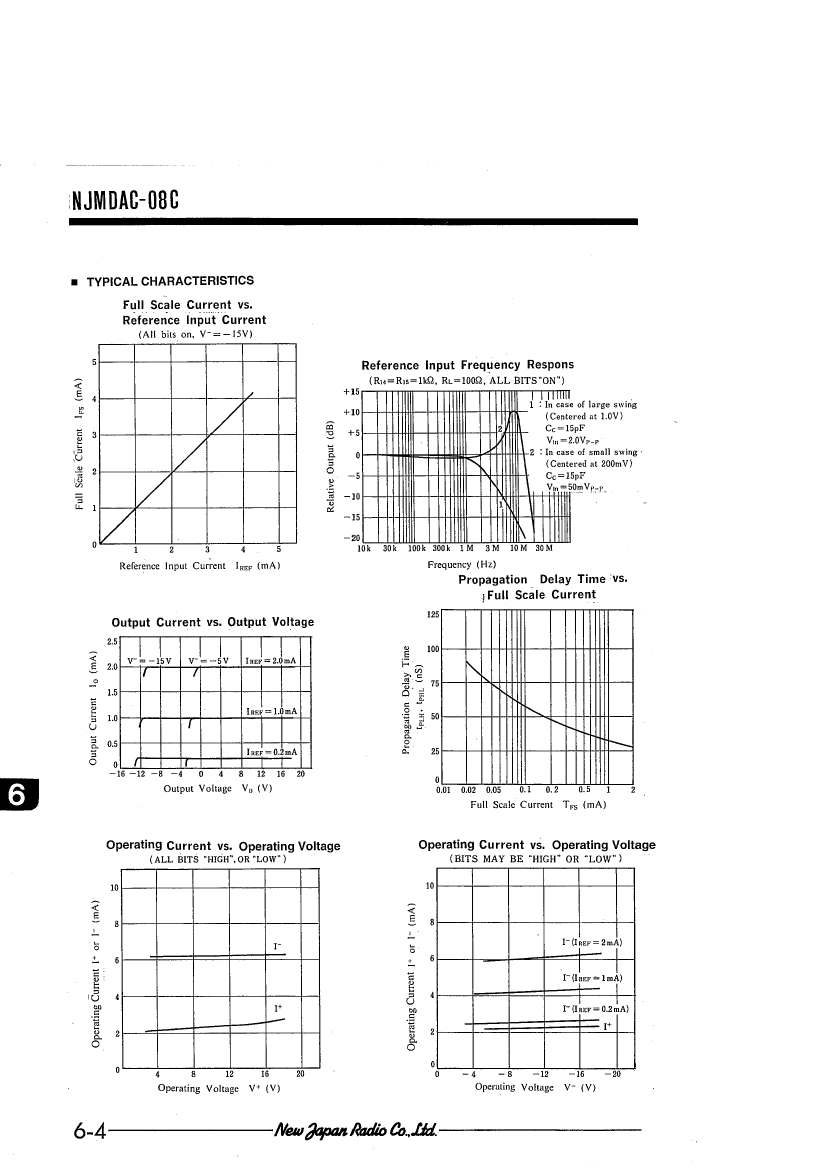

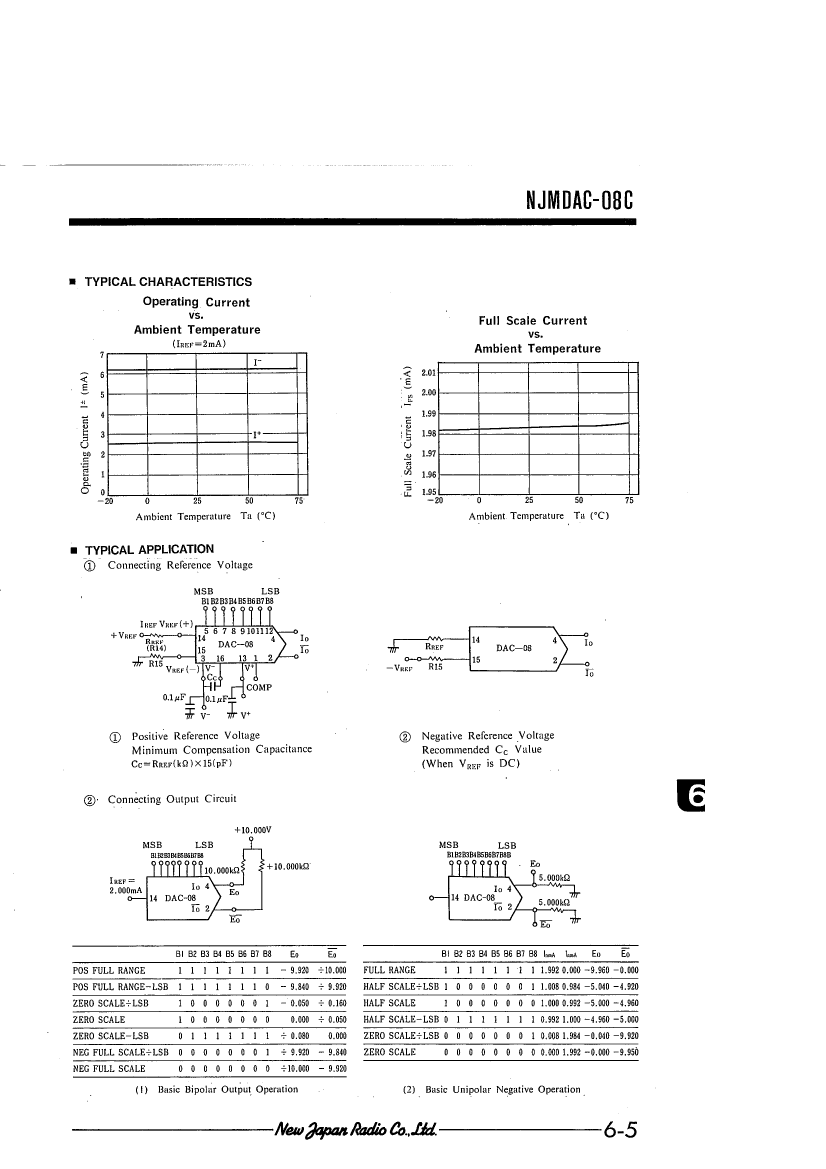

NJMDAC-08C Parametric

Parameter NameAttribute value
Number of functions1
Number of terminals16
Maximum operating temperature75 Cel
Minimum operating temperature-20 Cel
Rated supply voltage15 V
Maximum linear error0.3900 %
Processing package descriptionDIP-16
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
CraftsmanshipBIPOLAR
packaging shapeRECTANGULAR
Package SizeIN-LINE
Terminal formTHROUGH-HOLE
Terminal spacing2.54 mm
terminal coatingTIN BISMUTH
Terminal locationDUAL
Packaging MaterialsPLASTIC/EPOXY
Temperature levelCOMMERCIAL EXTENDED
Rated negative supply voltage-15 V
Input formatPARALLEL, 8 BITS
Type of converter8-BIT DAC
Input bit encodingBINARY
Rated settling time0.1500 us
Maximum analog output voltage18 V
Minimum analog output voltage-10 V

NJMDAC-08C Related Products

NJMDAC-08C NJMDAC-08MC
Description PARALLEL, 8 BITS INPUT LOADING, 0.15 us SETTLING TIME, 8-BIT DAC, PDIP16 PARALLEL, 8 BITS INPUT LOADING, 0.15 us SETTLING TIME, 8-BIT DAC, PDIP16
Number of functions 1 1
Number of terminals 16 16
Maximum operating temperature 75 Cel 75 Cel
Minimum operating temperature -20 Cel -20 Cel
Rated supply voltage 15 V 15 V
Maximum linear error 0.3900 % 0.3900 %
Processing package description DIP-16 DIP-16
Lead-free Yes Yes
EU RoHS regulations Yes Yes
state ACTIVE ACTIVE
Craftsmanship BIPOLAR BIPOLAR
packaging shape RECTANGULAR RECTANGULAR
Package Size IN-LINE IN-LINE
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal spacing 2.54 mm 2.54 mm
terminal coating TIN BISMUTH TIN BISMUTH
Terminal location DUAL DUAL
Packaging Materials PLASTIC/EPOXY PLASTIC/EPOXY
Temperature level COMMERCIAL EXTENDED COMMERCIAL EXTENDED
Rated negative supply voltage -15 V -15 V
Input format PARALLEL, 8 BITS PARALLEL, 8 BITS
Type of converter 8-BIT DAC 8-BIT DAC
Input bit encoding BINARY BINARY
Rated settling time 0.1500 us 0.1500 us
Maximum analog output voltage 18 V 18 V
Minimum analog output voltage -10 V -10 V
