M85049-2123A04C datasheet, PDF

Datasheet> All Categories > The connector> M85049-2123A04C

M85049-2123A04C: CategoryThe connector; File Size106KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-2123A04C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-2123A04C	-	-	View	Buy Now

M85049-2123A04C Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
MIL Type	MIL-DTL-38999 III, IV
Product	Non-Environmental Backshells
Shell Style	Straight
Shell Size	23
Shell Plating	Black Anodize
Shell Material	Aluminum Alloy
Mating Style	Rotatable Coupling
Mounting Angle	Straight

Preview

Download Datasheet

View All

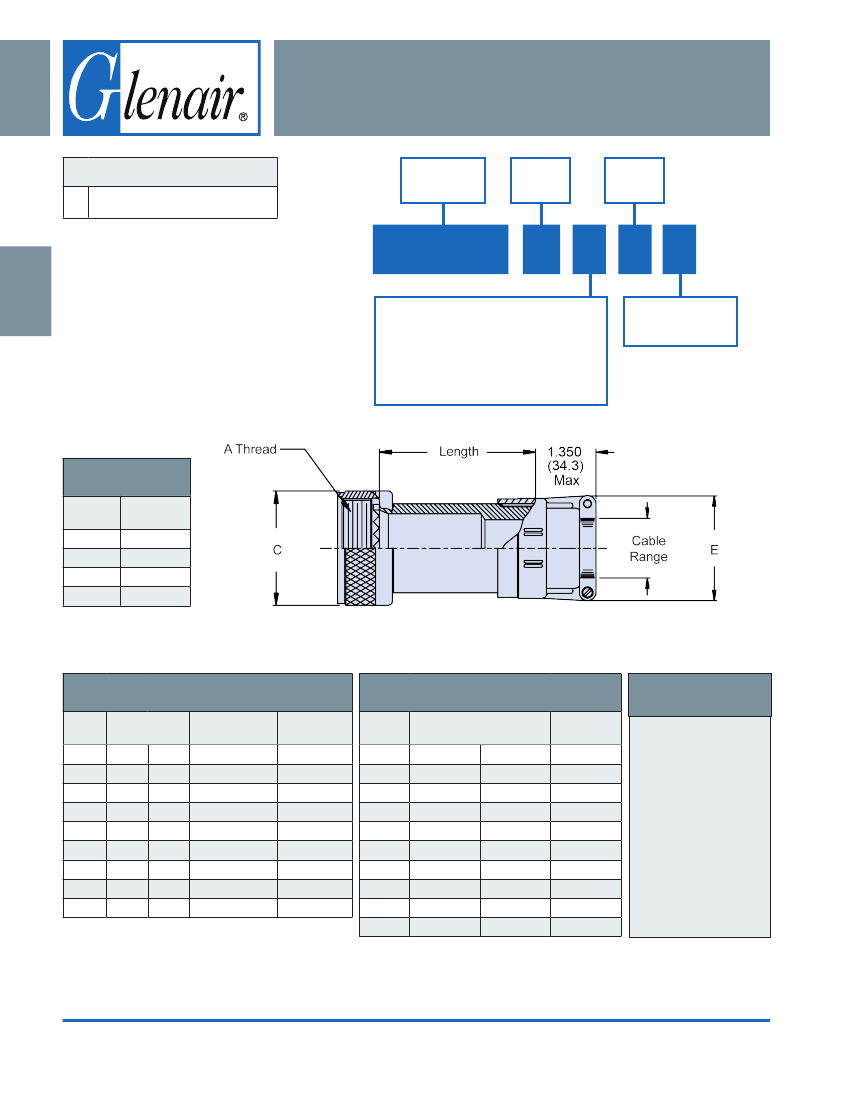

AS85049/21

Straight Non-Environmental Strain Relief Backshell

AS85049

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series III and IV

EN3645

Basic

Part Number

Shell

Size

Clamp

Size

M85049/21

Finish

= Black Anodize

= Electroless Nickel

= Cadmium, Olive Drab

= Nickel Fluorocarbon Polymer

= Pure Dense Electrodeposited Aluminum

= Zinc Nickel

Length Code

(Omit for Standard)

Table III

TABLE III: Length

Code

Standard

Length

± .032 (0.8)

1.50 (38.1)

2.50 (63.5)

3.50 (88.9)

4.50 (114.3)

TABLE I: Shell Size, Clamp Size

and Dimensions

Shell

Size

Clamp Size*

Min Max

A Thread

Class 6H

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

C Dia

Max

.750 (19.1)

.850 (21.6)

1.000 (25.4)

1.100 (27.9)

1.250 (31.8)

1.400 (35.6)

1.500 (38.1)

1.650 (41.9)

1.750 (44.5)

TABLE II: Clamp Size, Cable Range

and Dimensions

Clamp

Size

Cable Range

Min

Max

.062 (1.6)

.125 (3.2)

.250 (6.4)

.312 (7.9)

.437 (11.1)

.562 (14.3)

.687 (17.4)

Max

APPLICATION

NOTES

For complete

dimensions see the

applicable Military

Specification.

Metric dimensions

(mm) are in

parentheses.

Cable Range is

defined as the

accommodation

range for the wire

bundle or cable.

Dimensions shown

are not intended for

inspection criteria.

.125 (3.2) .800 (20.3)

.250 (6.4) 1.000 (25.4)

.375 (9.5) 1.100 (27.9)

.500 (12.7) 1.200 (30.5)

.625 (15.9) 1.250 (31.8)

.750 (19.1) 1.400 (35.6)

.875 (22.2) 1.500 (38.1)

.812 (20.6) 1.000 (25.4) 1.650 (41.9)

.937 (23.8) 1.125 (28.6) 1.750 (44.5)

1.062 (27.0) 1.250 (31.8) 1.900 (48.3)

*Clamp Size from Table IV, AS85049/21 Specifications.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-42

E-Mail: sales@glenair.com
