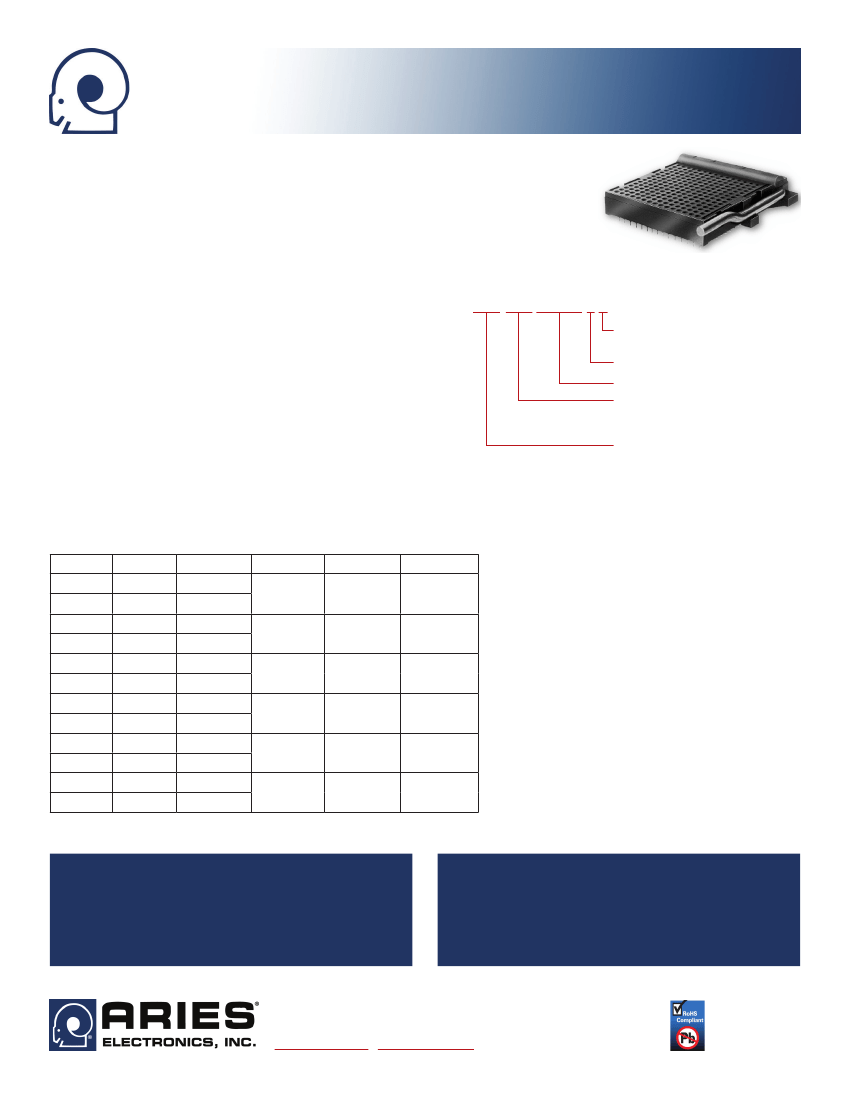

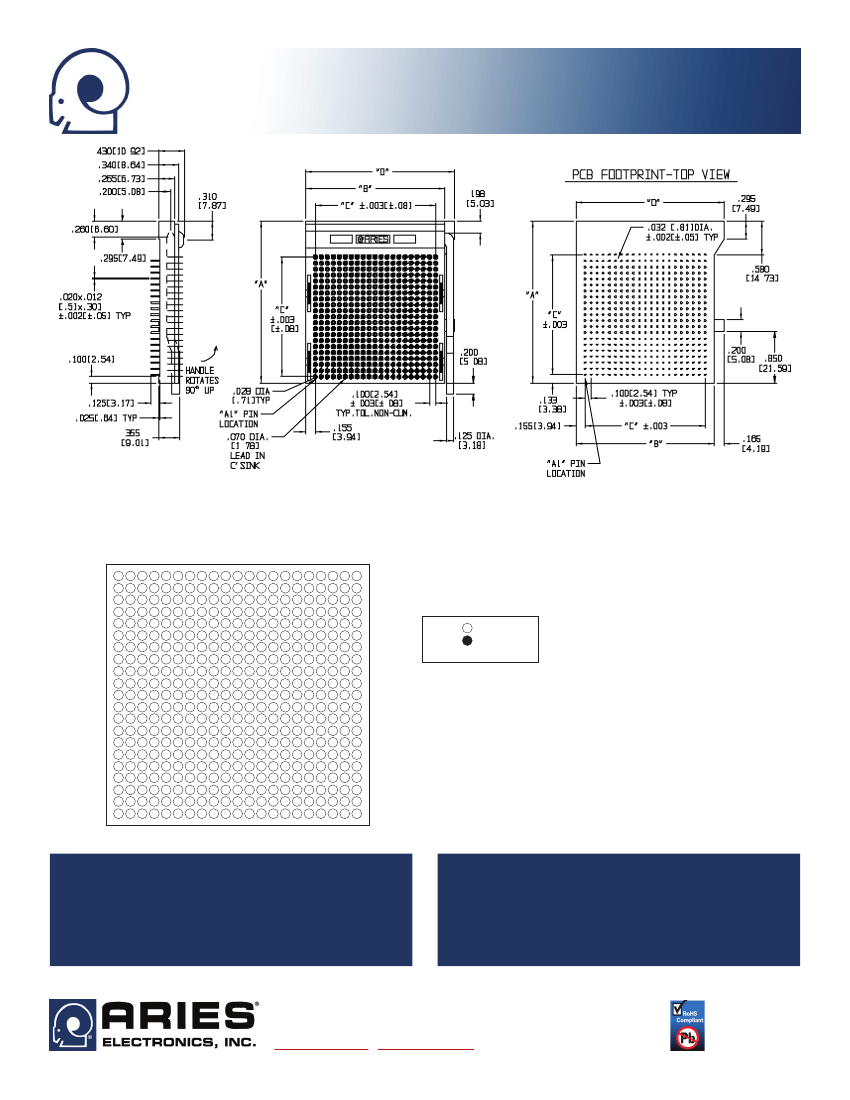

PGA ZIF Test & Burn-in Socket for
Any Footprint on Std 8x8 to 21x21 Grid
FEATURES
• Strong Metal Cam Activates Normally-closed Contacts, Preventing Dependency on Plastic for
Contact Force
• Handle mounted on Right- or Left-hand Side
• Any Footprint Accepted on Standard 13x13 to 21x21 Grid
GENERAL SPECIFICATIONS
•
SOCKET BODY:
black UL 94V-0 Polyphenylene Sulfide (PPS)
ORDERING INFORMATION
•
CONTACTS:
BeCu 174, 1/2-hard
–OR–
Spinodal
•
BeCu CONTACT PLATING OPTIONS:
30μ [0.762μ] min. Au per MIL-
XXX-PXX XXXXX-1 X
G-45204 on contact area, 200μ [5.08μ] min. matte Sn per ASTM B545-
Plating
97 on solder tail, both over 30μ [0.762μ] min. Ni per QQ-N-290 all over
2 = Au Contacts, Sn over Ni Tail
•
HANDLE:
Stainless Steel
Solder Pin Tail
•
CONTACT CURRENT RATING:
1 amp
•
OPERATING TEMPERATURES:
-85°F to 257°F [-65°C to 125°C] Au plating
Grid Size & Footprint Number
•
ACCEPTS LEADS:
0.014-0.026 [0.36-0.66] dia., 0.120-0.290 [3.05-7.37]
Series Designator
long
PRS = Std
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.032 ±0.002 [0.81 ±0.05] dia.
• See
PCB FOOTPRINT
below
• Plugs into standard PGA sockets
PLS = Handle on Left
Number of Pins
Grid Size
8x8
*
9x9
12 x 12
*
13 x 13
14 x 14
*
15 x 15
16 x 16
*
17 x 17
18 x 18
*
19 x 19
20 x 20
*
21 x 21
No. of Pins
64
81
144
169
196
225
256
289
324
361
400
441
Dim. “C”
0.700 [17.78]
0.800 [20.32]
1.100 [27.94]
1.200 [30.48]
1.300 [33.02]
1.400 [35.56]
1.500 [38.10]
1.600 [40.64]
1.700 [43.18]
1.800 [45.72]
1.900 [48.26]
2.000 [50.80]
Dim. “A”
1.695 [43.05]
1.894 [48.10]
2.094 [53.20]
2.294 [58.27]
2.494 [63.35]
2.694 [68.43]
Dim. “B”
1.110 [28.19]
1.510 [38.35]
1.710 [43.43]
1.910 [48.51]
2.110 [53.59]
2.310 [58.67]
Dim. “D”
1.275 [32.39]
1.675 [42.55]
1.875 [47.63]
2.075 [52.71]
2.275 [57.79]
2.475 [62.87]
<< SPECIAL ORDER ONLY, Consult Factory
PLUGS (X) IN THESE COVER HOLE LOCATIONS, OR ANY
OTHER LOCATIONS REQUIRED WILL ONLY BE SUPPLIED
AS INDICATED ON THE PGA FOOTPRINT OR CUSTOMER-
SUPPLIED PGA WORKSHEET ON PAGE 2.
* Top- and Right-hand Side Rows left out
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
SPECIAL HANDLE REQUIREMENTS: CONSULT FACTORY
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
10004
Rev. 1.10
1 of 2
PGA ZIF Test & Burn-in Socket for
Any Footprint on Std 8x8 to 21x21 Grid
PLUGS (X) IN COVER HOLE LOCATIONS WILL ONLY BE
SUPPLIED AS INDICATED ON THE PGA FOOTPRINT OR
CUSTOMER-SUPPLIED PGA WORKSHEET BELOW.
TOP VIEW
X
W
V
U
T
S
R
P
N
M
L
K
J
H
G
F
E
D
C
B
A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
SPECIAL HANDLE REQUIREMENTS: CONSULT FACTORY
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
SPECIAL FOOTPRINT INSTRUCTIONS
1. Make a copy of this worksheet
2. Fill-in circles for footprint desired using the key below
3. Fill-in the information below, including Series and Plating
options. See Ordering Information above
4. Send worksheet to Aries for prompt quote
KEY
= no pin
= pin
X = plug hole
COMPANY NAME ___________________________________
ADDRESS ________________________________________
CITY ____________________________________________
REQUESTED BY ____________________________________
PHONE __________________________________________
DATE ___________________________________________
TOTAL NUMBER OF PINS _____________________________
SERIES
(circle one)
PRS
PLS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
10004
Rev. 1.10
2 of 2
