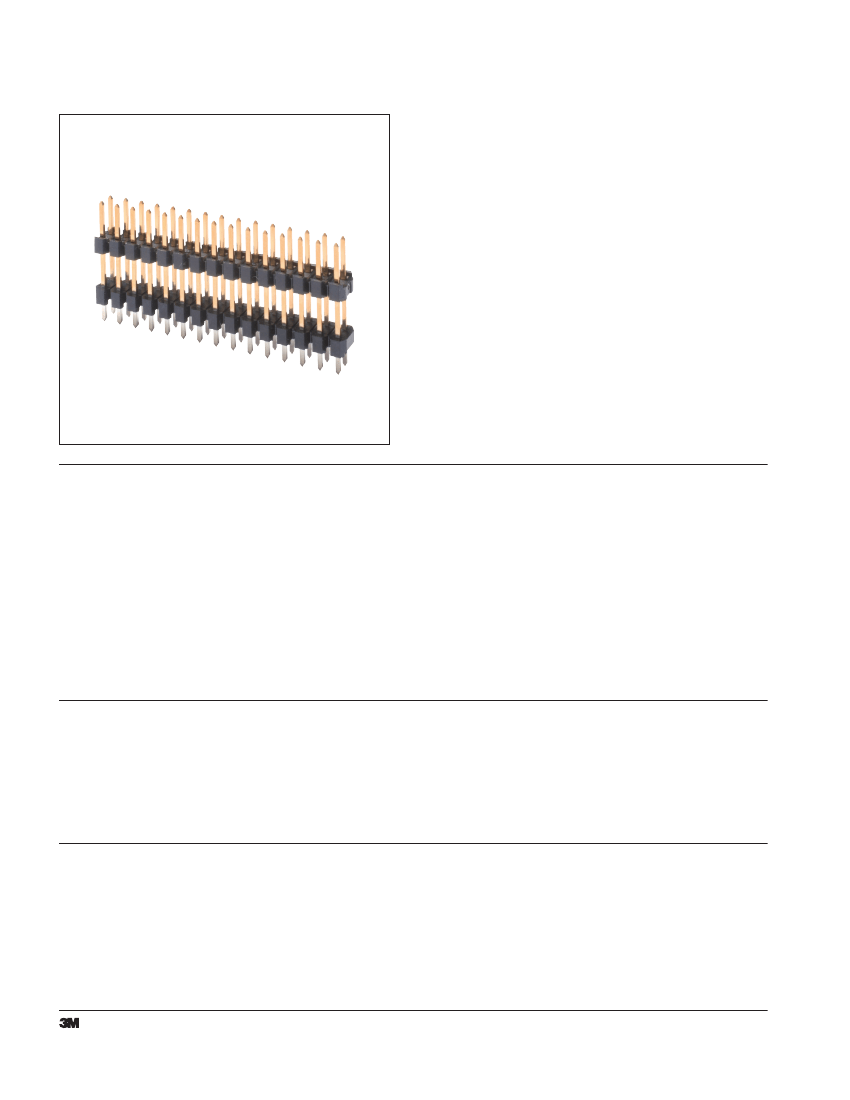

3M
™
Pin Strip Header
2.54 mm and 2.54 mm x 2.54 mm, Dual Insulator, Straight, Solder Tail
961 Series
•
High temperature dielectric
•
No lead” wave and reflow solder compatible
“
•
nd stackable feature
E
•
Single- and dual row version
•
oHS Compliant. See the Regulatory Information
R
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 26, 2012
TS-2185-C
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2.5 µm [50–100 µ’’] Nickel
Wiping Area: Flash Gold
Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
www.3Mconnectors.com
3M
™
Pin Strip Header
2.54 mm and 2.54 mm x 2.54 mm, Dual Insulator, Straight, Solder Tail
961 Series

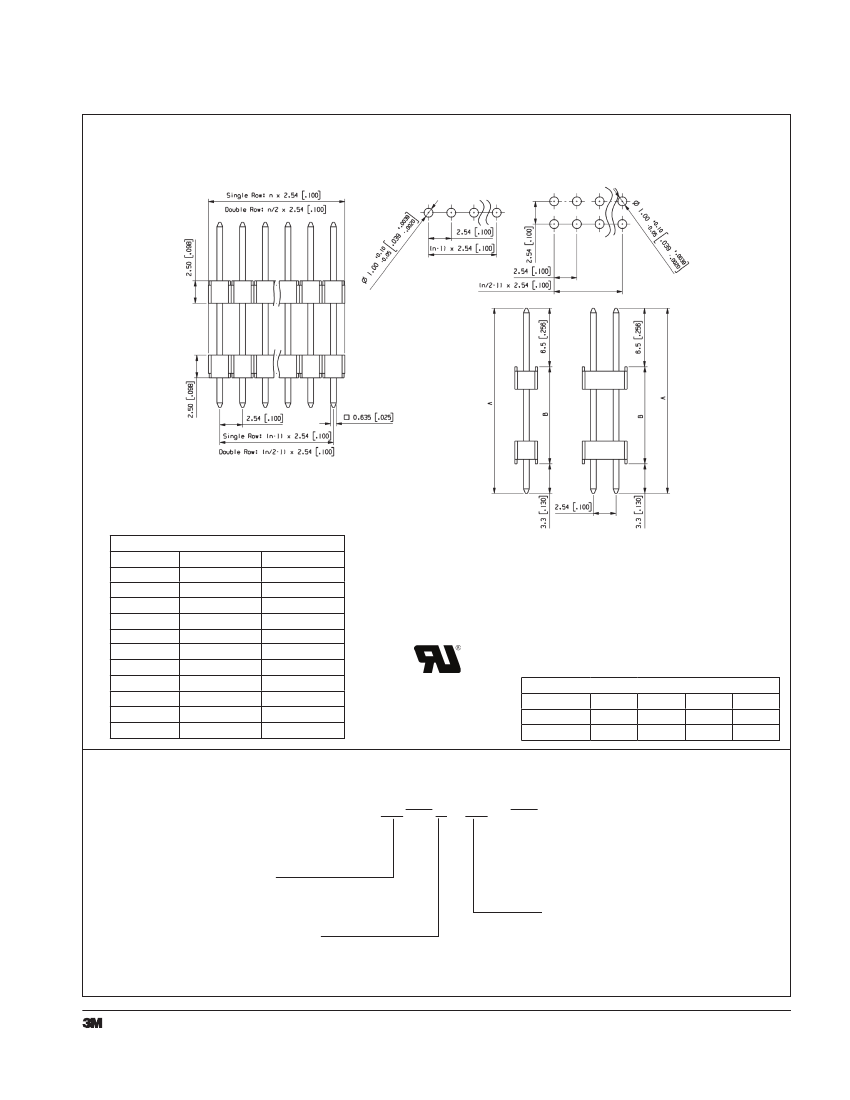

PCB Layout
Contact Dimensions
Coding No.
A
03
18.5 [.73]
18
20.6 [.81]
12
22.4 [.88]
06
23.6 [.93]
07
25.7 [1.01]
08
27.5 [1.08]
13
29.8 [1.17]
14
31.6 [1.24]
15
38.4 [1.51]
16
41.6 [1.64]
17
46.1 [1.81]
B
8.7 [.34]
10.8 [.42]
12.6 [.50]
13.8 [.54]
15.9 [.62]
17.7 [.69]
20.0 [.79]
21.8 [.86]
28.6 [1.13]
31.8 [1.25]
36.3 [1.43]
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
9614XX
X04XX04
AR
(RIA E1 & C1 Apply)
Contact Quantity:
02–36 Pins / 1 Row
04–72 Pins / 2 Row
Rows:
8 = 2 Row
9 = 1 Row
Board Stacking Height:
Dim ‘B’
TS-2185-C
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
