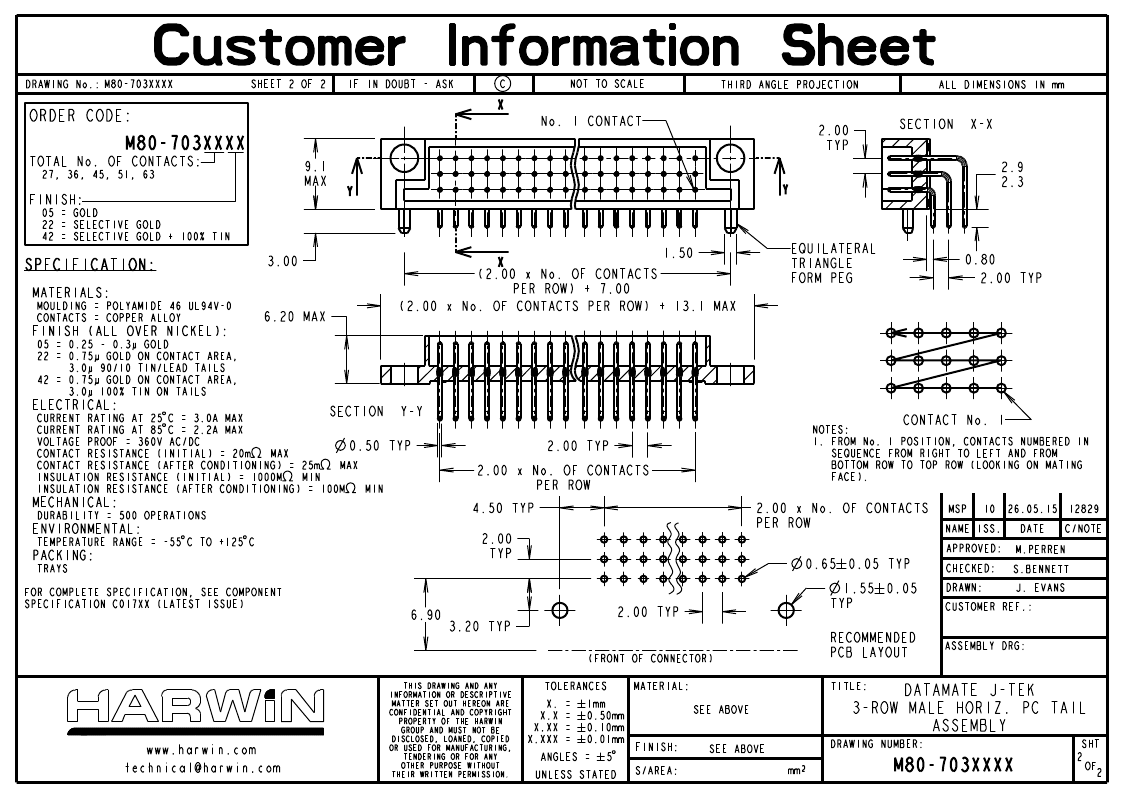

M80-7033642 |
M80-7032742 |
M80-7034542 |
| Description |
Headers u0026 Wire Housings 36 WAY MALE 90 DEG CONN |
Headers u0026 Wire Housings 27 WAY MALE 90 DEG CONN |
Headers u0026 Wire Housings 45 WAY MALE 90 DEG CONN |
| Is it lead-free? |
Lead free |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
conform to |
| Maker |
Harwin |
Harwin |
Harwin |
| Reach Compliance Code |
compliant |
compliant |
compliant |
| ECCN code |
EAR99 |
EAR99 |
EAR99 |
| Board mount options |
PEG |
PEG |
PEG |
| body width |
0.358 inch |
0.358 inch |
0.358 inch |
| body length |
1.461 inch |
1.224 inch |
1.697 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact completed and terminated |
Tin (Sn) - with Nickel (Ni) barrier |
Tin (Sn) - with Nickel (Ni) barrier |
TIN OVER NICKEL |
| Contact point gender |
MALE |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
25 mΩ |
25 mΩ |
25 mΩ |
| Contact style |
RND PIN-SKT |
RND PIN-SKT |
RND PIN-SKT |
| DIN compliance |
NO |
NO |
NO |
| Durability |
500 Cycles |
500 Cycles |
500 Cycles |
| Filter function |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
| Insulation resistance |
100000000 Ω |
100000000 Ω |
100000000 Ω |
| insulator material |
POLYAMIDE |
POLYAMIDE |
POLYAMIDE |
| MIL compliance |
NO |
NO |
NO |
| Manufacturer's serial number |
M80-703 |
M80-703 |
M80-703 |
| Plug contact pitch |
0.079 inch |
0.079 inch |
0.079 inch |
| Match contact row spacing |
0.079 inch |
0.079 inch |
0.079 inch |
| Mixed contacts |
NO |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
LOCKING |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
| PCB row number |
3 |
3 |
3 |
| Number of rows loaded |
3 |
3 |
3 |
| Maximum operating temperature |
125 °C |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
2.0066 mm |
2.0066 mm |
2.0066 mm |
| Plating thickness |
30u inch |
30u inch |
30u inch |
| Rated current (signal) |
3 A |
3 A |
3 A |
| Guideline |
UL |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.09 inch |
0.09 inch |
0.09 inch |
| Terminal pitch |
2 mm |
2 mm |
2 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
36 |
27 |
45 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| JESD-609 code |
e3 |
e3 |
- |
