2101510-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2101510-2

Preview

2101510-2: Description4 Pos RF Module, Backplane, OSMM PASSIVA; CategoryThe connector The connector; File Size294KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2101510-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2101510-2	-	-	View	Buy Now

2101510-2 Overview

4 Pos RF Module, Backplane, OSMM PASSIVA

2101510-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Factory Lead Time	16 weeks
Samacsys Description	4 Pos RF Module, Backplane, OSMM PASSIVA
Connector type	RF SMPM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

8

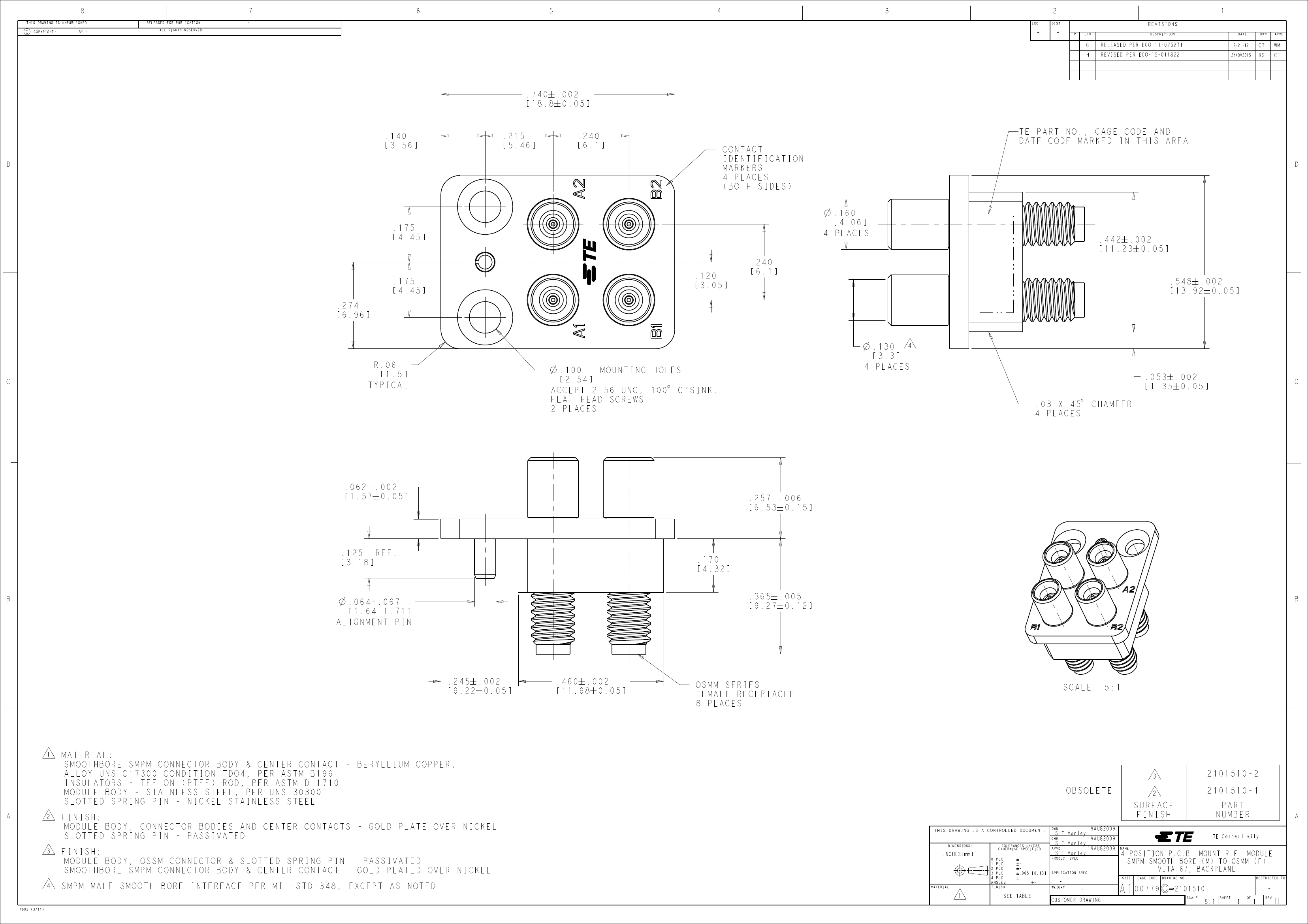

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

-

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

-

G

H

RELEASED PER ECO 11-025271

REVISED PER ECO-15-011822

2-21-12

24NOV2015

CT

RS

WM

CT

.740 .002

[ 18.8 0.05 ]

.140

[ 3.56 ]

D

.215

[ 5.46 ]

.240

[ 6.1 ]

CONTACT

IDENTIFICATION

MARKERS

4 PLACES

(BOTH SIDES)

.160

[ 4.06 ]

4 PLACES

.240

[ 6.1 ]

TE PART NO., CAGE CODE AND

DATE CODE MARKED IN THIS AREA

D

.175

[ 4.45 ]

.442 .002

[ 11.23

0.05 ]

.548 .002

[ 13.92

0.05 ]

.175

[ 4.45 ]

.274

[ 6.96 ]

.120

[ 3.05 ]

C

R .06

[ 1.5 ]

TYPICAL

.100

MOUNTING HOLES

[ 2.54 ]

ACCEPT 2-56 UNC, 100 $ C'SINK.

FLAT HEAD SCREWS

2 PLACES

.130

[ 3.3 ]

4 PLACES

4

.053 .002

[ 1.35 0.05 ]

.03 X 45 $

4 PLACES

CHAMFER

C

.062 .002

[ 1.57 0.05 ]

.257 .006

[ 6.53 0.15 ]

.125

REF.

[ 3.18 ]

.170

[ 4.32 ]

.365 .005

[ 9.27 0.12 ]

B

.064 -.067

[ 1.64 -1.71 ]

ALIGNMENT PIN

.245 .002

[ 6.22 0.05 ]

.460 .002

[ 11.68

0.05 ]

OSMM SERIES

FEMALE RECEPTACLE

8 PLACES

SCALE

5:1

1

MATERIAL:

SMOOTHBORE SMPM CONNECTOR BODY

& CENTER CONTACT - BERYLLIUM COPPER,

ALLOY UNS C17300 CONDITION TDO4, PER ASTM B196

INSULATORS - TEFLON (PTFE) ROD, PER ASTM D 1710

MODULE BODY - STAINLESS STEEL, PER UNS 30300

SLOTTED SPRING PIN - NICKEL STAINLESS STEEL

FINISH:

MODULE BODY, CONNECTOR BODIES AND CENTER CONTACTS - GOLD PLATE OVER NICKEL

SLOTTED SPRING PIN - PASSIVATED

FINISH:

MODULE BODY, OSSM CONNECTOR

SMOOTHBORE SMPM CONNECTOR BODY

& SLOTTED SPRING PIN - PASSIVATED

& CENTER CONTACT - GOLD PLATED OVER NICKEL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

3

2101510-2

2101510-1

PART

NUMBER

TE Connectivity

OBSOLETE

2

A

2

SURFACE

FINISH

S T Morley

-

19AUG2009

NAME

A

3

INCHES[mm]

APVD

4

SMPM MALE SMOOTH BORE INTERFACE PER MIL-STD-348, EXCEPT AS NOTED

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.005 [0.13]

-

PRODUCT SPEC

APPLICATION SPEC

4 POSITION P.C.B. MOUNT R.F. MODULE

SMPM SMOOTH BORE (M) TO OSMM (F)

VITA 67, BACKPLANE

SIZE

CAGE CODE

DRAWING NO

WEIGHT

1

SEE TABLE

-

CUSTOMER DRAWING

A1

00779

RESTRICTED TO

2101510

SCALE

4805 (3/11)

8:1

SHEET

1

OF

1

REV

-

H

2101510-2 Related Products

	2101510-2	1757638-1
Description	4 Pos RF Module, Backplane, OSMM PASSIVA	SCD SMPM R/A JACK - .047 S/R
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	unknown
Connector type	RF SMPM CONNECTOR	RF SMP CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD
