39727-0004: DescriptionPluggable Terminal Blocks PLUG HORIZ WIRE TRAP 5.08MM 4C-GREEN; CategoryThe connector; File Size143KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39727-0004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39727-0004	-	-	View	Buy Now

39727-0004 Overview

Pluggable Terminal Blocks PLUG HORIZ WIRE TRAP 5.08MM 4C-GREEN

39727-0004 Parametric

Parameter Name	Attribute value
Product Category	Pluggable Terminal Blocks
Manufacturer	Molex
RoHS	Not Applicable
Product	Plugs
Number of Positions	4 Position
Pitch	5.08 mm
Factory Pack Quantity	360

Preview

Download Datasheet

View All

13

12

11

10

9

8

7

6

5

4

3

2

1

PART NUMBER DATA

J

CIRCUITS

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

A

.102

I

D

B

E

.59

H

PART

NUMBER

397270002

397270003

397270004

397270005

397270006

397270007

397270008

397270009

397270010

397270011

397270012

C

G

A

.200

.33

8.3

1.01

25.6

B

ENGINEERING

NUMBER

M763B-00-2-02-3

M763B-00-2-03-3

M763B-00-2-04-3

M763B-00-2-05-3

M763B-00-2-06-3

M763B-00-2-07-3

M763B-00-2-08-3

M763B-00-2-09-3

M763B-00-2-10-3

M763B-00-2-11-3

M763B-00-2-12-3

M763B-00-2-13-3

M763B-00-2-14-3

M763B-00-2-15-3

M763B-00-2-16-3

M763B-00-2-17-3

M763B-00-2-18-3

M763B-00-2-19-3

M763B-00-2-20-3

M763B-00-2-21-3

M763B-00-2-22-3

M763B-00-2-23-3

M763B-00-2-24-3

COLOR

GREEN

A IN mm

.40

.60

.80

1.00

1.20

1.40

1.60

1.80

2.00

2.20

2.40

2.60

2.80

3.00

3.20

3.40

3.60

3.80

4.00

4.20

4.40

4.60

4.80

10.3

15.3

20.4

25.5

30.6

35.6

40.7

45.8

50.9

56.0

61.0

66.1

71.2

76.3

81.3

86.4

91.5

96.6

101.7

106.7

111.8

116.9

122.0

B IN mm

.200

.400

.600

.800

1.000

1.199

1.399

1.599

1.799

1.999

2.199

2.399

2.599

2.799

2.999

3.198

3.398

3.598

3.798

3.998

4.198

4.398

4.598

5.08

10.15

15.23

20.31

25.39

30.46

35.54

40.62

45.70

50.77

55.85

60.93

66.01

71.08

76.16

81.24

86.32

91.39

96.47

101.55

106.63

111.70

116.78

J

I

M763B

H

G

F

REF. LAST 2 DIGITS OF PART NUMBER EQUALS CIRCUIT COUNT

F

E

D

CONTACT FACTORY FOR OPTIONAL COLORS

D

C

B

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

B

=

0

C

mm

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

=

0

APPROVED BY

DATE

molex

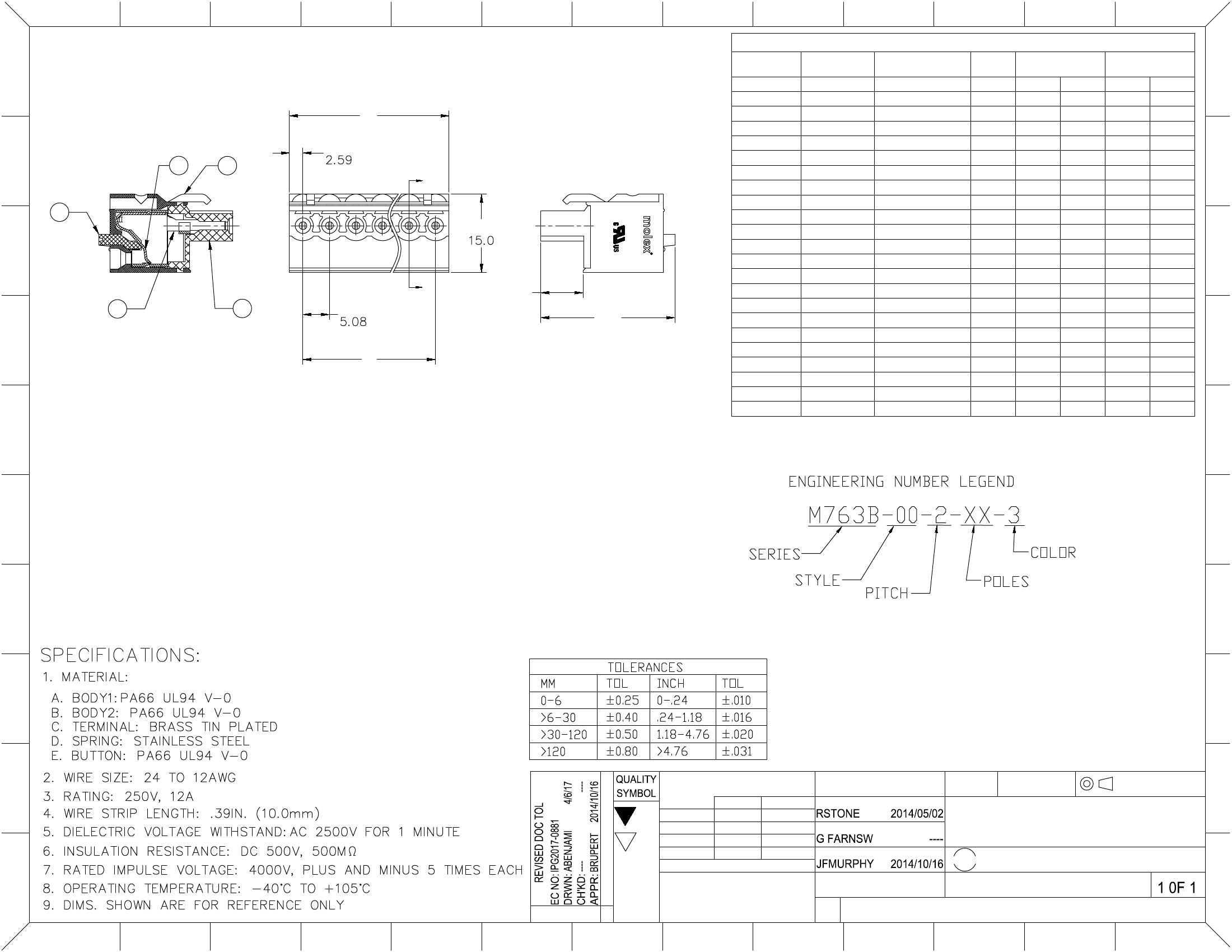

PLUG, HORIZONTAL

WIRE TRAP, 5.08MM

----

MOLEX INCORPORATED

SHEET NO.

A

REV

A1

13

12

11

10

9

8

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

7

6

5

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

A

SD-39727-001

3

2

1

C

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

4
