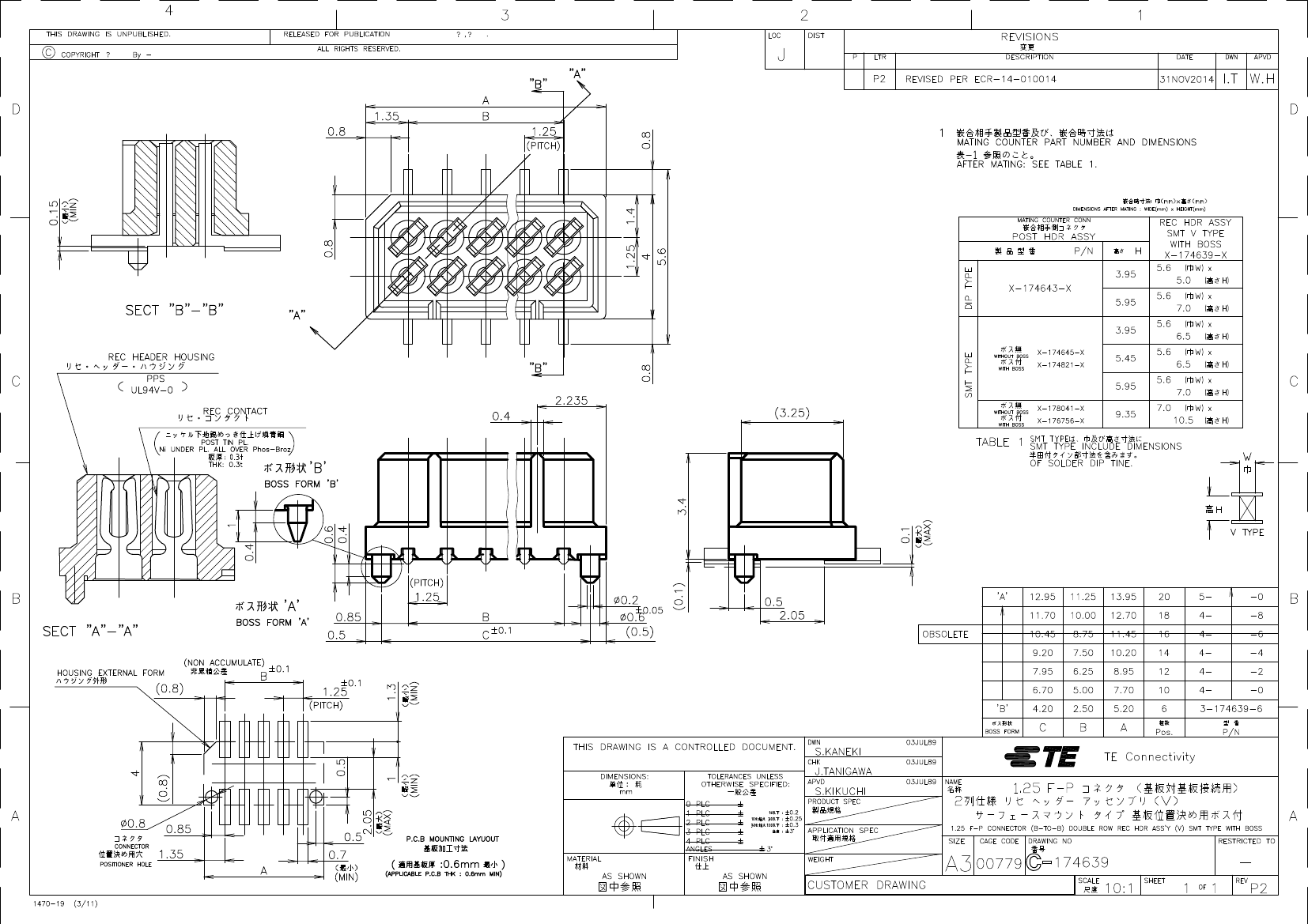

18 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 11 weeks |
| Other features | LOOSE PIECE |
| Board mount options | POLARIZATION POST |
| body width | 0.158 inch |
| subject depth | 0.134 inch |
| body length | 0.5 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VDC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 500000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYPHENYLENE SULPHIDE |
| MIL compliance | NO |
| Plug contact pitch | 0.049 inch |
| Match contact row spacing | 0.049 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -30 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.0132 mm |
| Plating thickness | 30u inch |
| polarization key | HOUSING SIDE |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.25 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 18 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 4-174639-8 | 4-174639-6 | 4-174639-0 | 4-174639-2 | 5-174639-0 | 3-174639-6 | |
|---|---|---|---|---|---|---|
| Description | 18 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT | 16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT | 10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT | 12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT | 20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT | 6 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Factory Lead Time | 11 weeks | 20 weeks | 14 weeks | 20 weeks 5 days | 16 weeks | 16 weeks |
| Other features | LOOSE PIECE | LOOSE PIECE | LOOSE PIECE | LOOSE PIECE | LOOSE PIECE | LOOSE PIECE |
| Board mount options | POLARIZATION POST | POLARIZATION POST | POLARIZATION POST | POLARIZATION POST | PEG | POLARIZATION POST |
| body width | 0.158 inch | 0.158 inch | 0.158 inch | 0.158 inch | 0.157 inch | 0.158 inch |
| subject depth | 0.134 inch | 0.134 inch | 0.134 inch | 0.134 inch | 0.138 inch | 0.134 inch |
| body length | 0.5 inch | 0.451 inch | 0.303 inch | 0.352 inch | 0.549 inch | 0.205 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 500VDC V | 500VDC V | 500VDC V | 500VDC V | 500VAC V | 500VDC V |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 100000000 Ω | 500000000 Ω |
| insulator material | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch |
| Match contact row spacing | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 4.0132 mm | 4.0132 mm | 4.0132 mm | 4.0132 mm | 3.9878 mm | 4.0132 mm |
| polarization key | HOUSING SIDE | HOUSING SIDE | HOUSING SIDE | HOUSING SIDE | POLARIZED HOUSING | HOUSING SIDE |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 18 | 16 | 10 | 12 | 20 | 6 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | - | 10 mΩ |
| Insulator color | BLACK | BLACK | BLACK | BLACK | - | BLACK |
| Plating thickness | 30u inch | 30u inch | 30u inch | 30u inch | - | 30u inch |
| Guideline | UL | UL | UL | UL | - | UL |
