67492-1221 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 67492-1221

67492-1221: DescriptionOptical Sensor Development Tools; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

67492-1221 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	67492-1221	-	-	View	Buy Now

67492-1221 Overview

Optical Sensor Development Tools

67492-1221 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body length	1.65 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

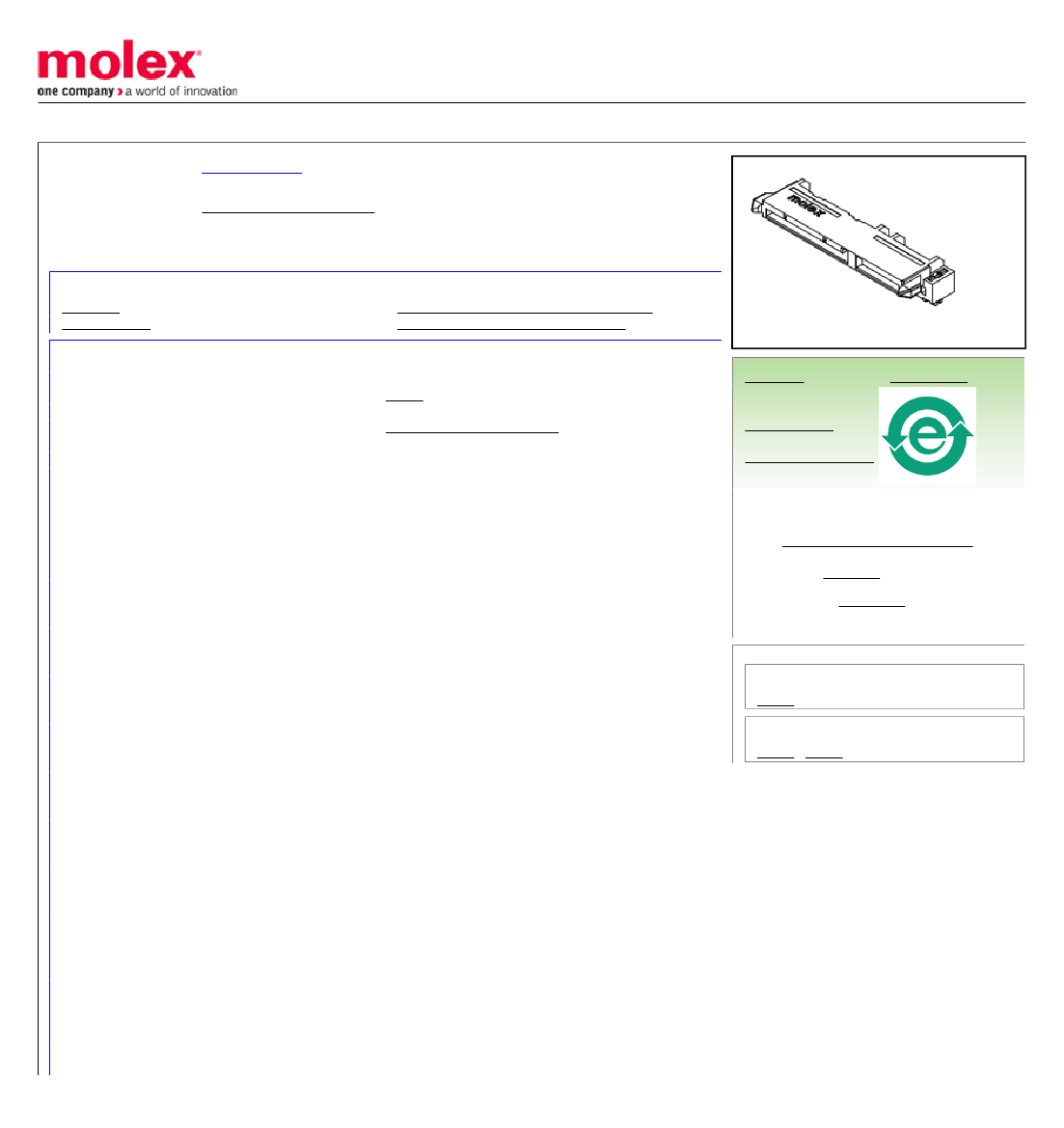

Preview

Download Datasheet

View All

This document was generated on 10/11/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

67492-1221

Active

Serial ATA Host Receptacles

1.27mm Pitch Serial ATA Host Receptacle, Right Angle, SMT, Mating Height 6.74mm,

0.76µm Gold (Au) Plating, Embossed Tape on Reel Packaging, 22 Circuits, Tape on

Reel Packaging, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-67492-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Receptacles

67492

Board-to-Board, Signal

Serial ATA Host Receptacles

Serial ATA

800756794143

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

500

Yes

None

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

2.301/g

Right Angle

Yes

1.60mm

Embossed Tape on Reel

1.27mm

0.762µm

1.270µm

Yes

-35°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

67492Series

Mates With

87703 , 87672 Serial ATA Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.5A

15V DC

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Reflow Capable (SMT only)
