NJM2806
Low Dropout Voltage Regulator with Reset
!
GENERAL DISCRIPTION
The NJM2806 is a low dropout voltage regulator with reset
function.
It provides up to 500mA of logic supply, and the reset function
monitors input voltage of the regulator with 1% accuracy. It is
suitable for local power supply and reset for small micro
controller and other logic chips.
!
FEATURES
"
Output Voltage Accuracy
Vo
±1.0%
"
Reset Voltage Accuracy
V
RT
±1.0%
"
Reset Hold Time
td
=
10mS±1.0mS
"
Ripple Rejection
75dB typ. (f=1kHz)
"
Quiescent Current
I
Q
=330µA
(typ.)
"
Input Voltage Monitor type
"
Open Collector Output
"
Internal Short Circuit Current Limit
"
Internal Thermal Overload Protection
"
Bipolar Technology
"
Package Outline
TO-252-5
!
PACKAGE OUTLINE
NJM2806DL2
!
PIN CONFIGURATION
3
12345
1.V
OR
2.V
IN
3.GND
4.V
OUT
5.Cd
NJM2806DL2
!
OUTPUT VOLTAGE/ DETECTION VOLTAGE
Device Name
Output Voltage
Detection Voltage
NJM2806DL2-2528
2.5V
2.8V
NJM2806DL2-3342
3.3V
4.2V
!
EQUIVALENT CIRCUIT
V
IN
V
OR
Thermal
Protection
V
OUT
Bandgap
Reference
GND
Cd
Ver.2004-01-19
-1-
NJM2806
!
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
Input Voltage
Power Dissipation
Operating Temperature
Storage Temperature
V
IN
P
D
Topr
Tstg
(Ta=25°C)
UNIT
V
W
°C
°C
RATINGS
+14
8 (Tc=25°C)
0.8(Ta≤25°C)
-
40
∼
+85
-
40
∼
+125
!
ELECTRICAL CHARACTERISTICS
(V
IN
=Vo+1V, C
IN
=0.1µF, Co=2.2µF
(Co=4.7µF:
Vo≤2.6V) Ta=25°C)
PARAMETER
SYMBOL
TEST CONDITION
Quiescent Current
V
IN
=Vo+2V, Io=0mA
I
Q
Regulator Block
Output Voltage
Output Current
Line Regulation
Load Regulation
Dropout Voltage
Ripple Rejection
Output Voltage Temperature
Coefficient
Output Noise Voltage
Reset Block
Voltage Detection
Hysteresis Voltage
Low Level Output Voltage
Output Leak Current
On time Output Current
Reset Output Delay Time
Operation Voltage Limit
MIN.
−
-1.0%
500
−
−
−
−
−
−
TYP.
330
−
650
−
−
0.18
75
±50
45
MAX.
430
+1.0%
−
0.10
0.03
0.28
−
−
−
UNIT
µA
V
mA
%/V
%/mA
V
dB
ppm/°C
µVrms
V
mV
mV
µA
mA
mS
V
Vo
Io
∆Vo/∆V
IN
∆Vo/∆Io
∆V
I_O
RR
∆Vo/∆T
V
NO
V
RT
V
RTH
R
ORL
I
ORH
I
ORL
t
d
V
OPL
Io=30mA
Vo-0.3V
V
IN
=Vo+1V∼Vo+6.0V, Io=30mA
Io=0∼500mA
Io=300mA
ein=200mVrms, f=1kHz, Io=10mA,
Vo=3.0V Version
Ta=0∼85°C, Io=10mA
f=10Hz∼100kHz, Io=10mA, Vo=3.0V Version
V
IN
=H→L
V
IN
=H→L→H
V
IN
=V
RT
-0.5V, R
L
=100kΩ
V
IN
= V
RT
+0.5V
V
IN
=V
RT
-0.5V, R
L
=0Ω
V
IN
=(V
RT
-0.5V)→ (V
RT
+0.5V), C
d
=0.1µF
V
ORL
=0.4V
-1.0%
+1.0%
−
VRT×3 VRT×5 VRT×8
100
300
−
0.1
−
−
5
9
−
−
10
0.9
−
11
−
(*note 1) The above specification is a common specification for all output voltages.
Therefore, it may be different from the individual specification for a specific output voltage.
-2-
Ver.2004-01-19
NJM2806
!

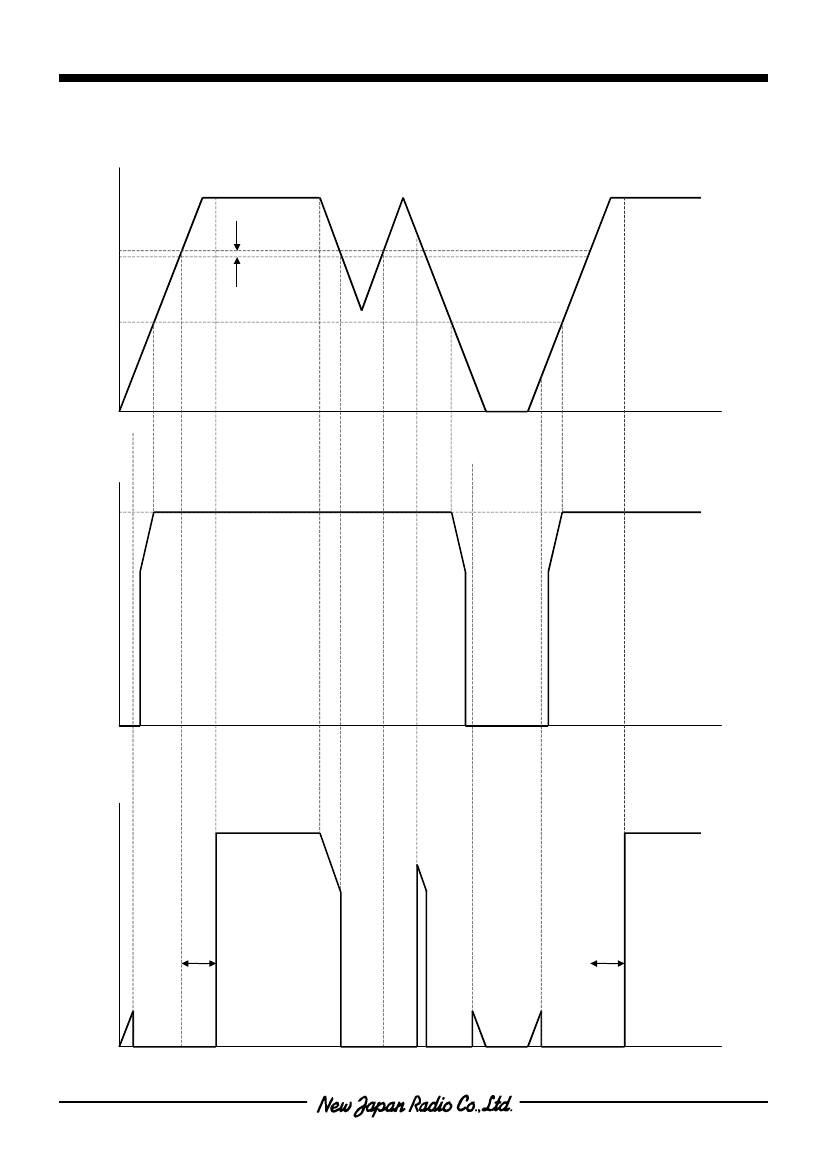

TIMING CHART
V
IN
[V]
V
RTH
V
RT
V
O
t
V
O
[V]
V
O
t
V
OR
[V]
t
d
t
d
t
d
∗
V
OR
is the case where a pull-up is carried out to V
IN
through resistance.
t
Ver.2004-01-19
-3-
NJM2806
!
TEST CIRCUIT
I
Q
V
IN
V
O
I
OR
NJM2806
0.1µF
V
IN
R
L
Cd
GND
V
OR
V
2.2µF
I
OUT
V
OUT
V
0.1µF
V
OR
*
Co=4.7µF: Vo≤2.6V
!
TYPICAL APPLICATIONS
V
IN
V
IN
V
O
V
OUT
NJM2806
0.1µF
100kΩ
2.2µF
V
OR
Cd
GND
0.1µF
V
OR
-4-
Ver.2004-01-19
NJM2806
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
Ver.2004-01-19
-5-
