SIH68145040060 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> SIH68145040060

SIH68145040060: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size657KB，6 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

SIH68145040060 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

SIH68145040060 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Leclanche Capacitors
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	680 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	40 mm
dielectric materials	ALUMINUM (WET)
ESR	164 mΩ
length	60 mm
Manufacturer's serial number	SIH
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	2100 mA
series	SIH
Terminal pitch	10 mm
Base Number Matches	1

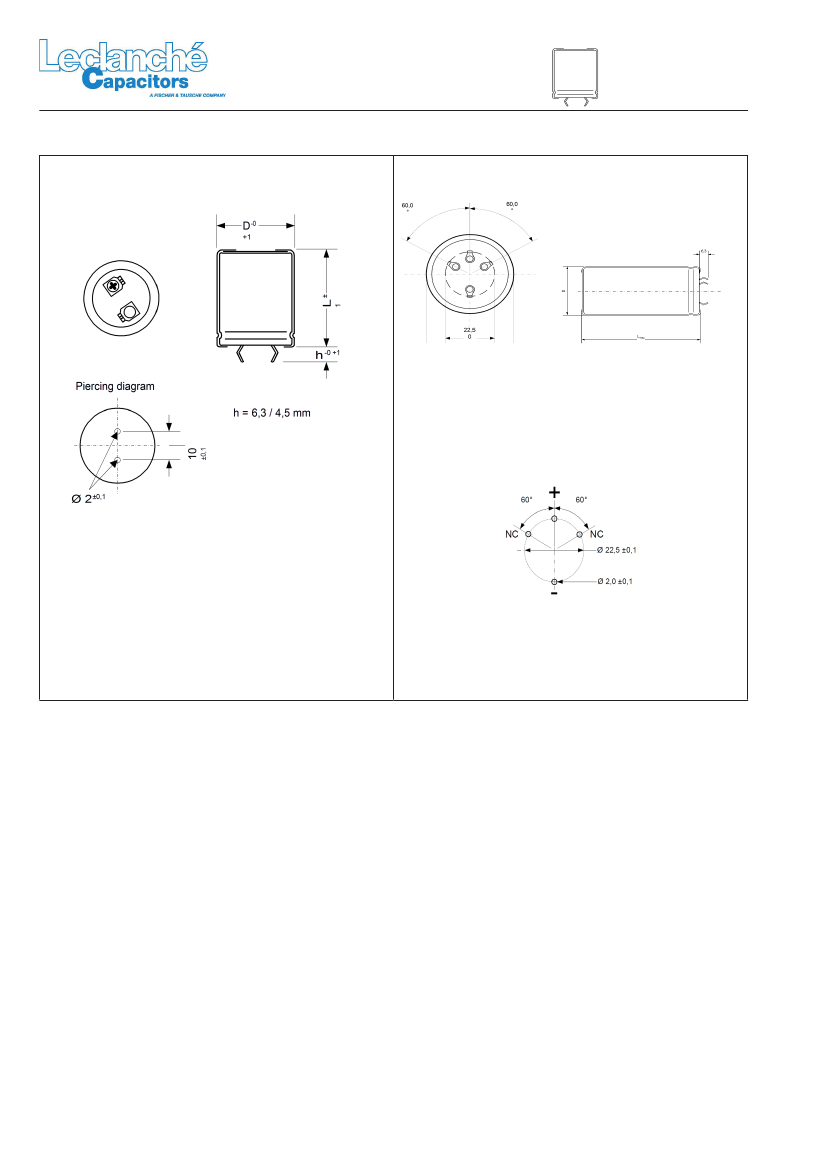

Preview

Download Datasheet

View All

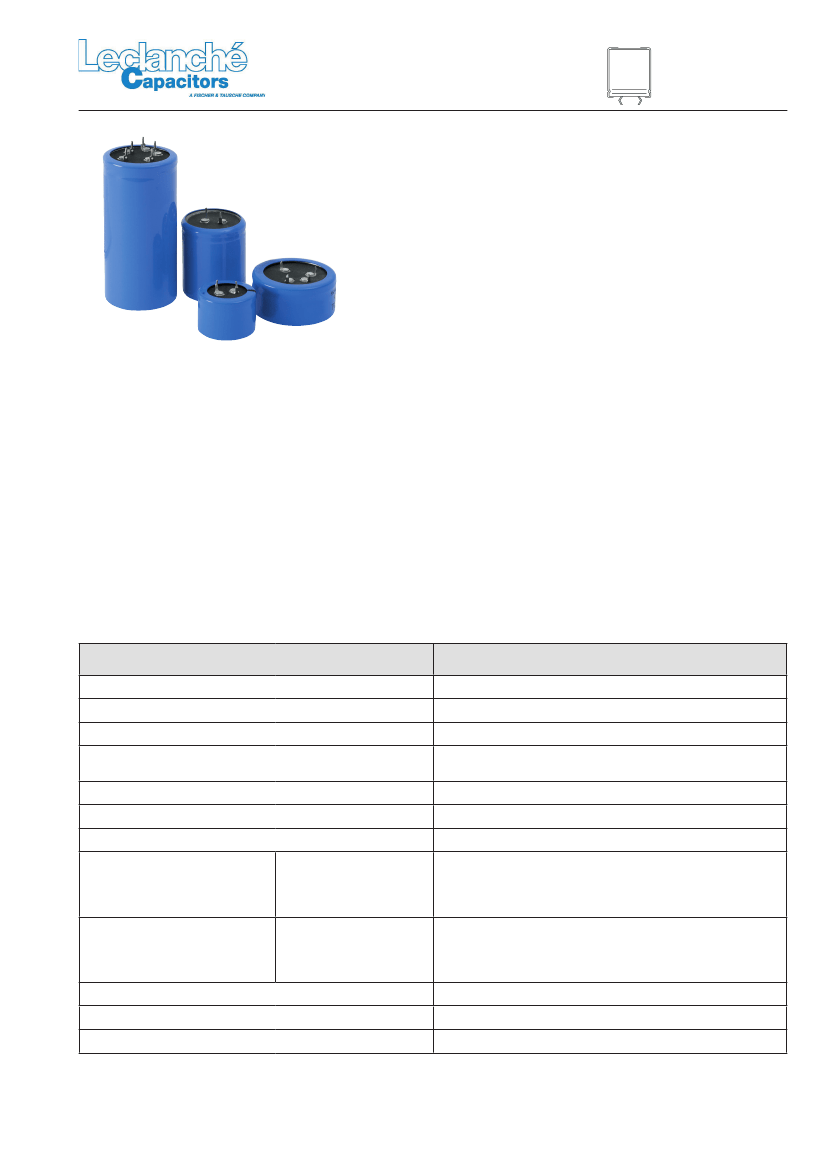

105 °C

Long life time

SIH

Ultra compact design

SIH: snap in, 2 pins

SI4PH: snap in, 4 pins

RoHS compliant

REACH compliant

Features

•

All internal contact welded

High CV product

High reliability

Ultra compact

HiFi

Computer

Industrial

Tube amplifier

Applications

Different case sizes, voltages and

capacitance combinations

are available on request.

Also in small lots.

General specifications

Items

Rated capacitance range C

Capacitance tolerance

Rated voltage range U

Surge voltage U

Max. reverse voltage

Category temperature range

Leakage current I

after 5 min @ U

Useful life

5000 h @ 105 °C ; U

; I

Characteristics

68 … 150.000 µF

± 20%

16 … 450 V

≤ 315 V: U

= 1,15 U

> 315 V: U

= 1,10 U

- 40°C ... + 105°C

≤ 0,008 * C

[µF] * U

[V] + 6 µA [µA]

Requirements

Δ C/C ≤ 30

% of initial value

ESR ≤ 300 % of specified limit

≤ specified limit

Requirements

Δ C/C ≤ 20

of initial value

ESR ≤ 130 % of specified limit

≤ specified limit

40/105/56

≥ 2500 V AC

IEC 60384-4

Endurance test

Climatic category IEC 60068

2000 h @ 105 °C , U

Voltage proof of the external insulation

Sectional specification

Leclanché Capacitors

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch
