NJM2596

Description
5-INPUT 3-OUTPUT VIDEO SWITCH FOR S2
File Size54KB,7 Pages
ManufacturerNew JRC
Websitehttps://www.njr.com
Download Datasheet View All

NJM2596 Overview

5-INPUT 3-OUTPUT VIDEO SWITCH FOR S2

NJM2596
5-INPUT 3-OUTPUT VIDEO SWITCH FOR S2
sGENERAL
DESCRIPTION
The NJM2596 is a 5-input 3-output video switch for S2.
Its switches select one from five signals received from TV, VTR,
DVD, TV GAME and others.
The NJM2596 is designed for audio visual items, such as AV
amplifier and others, because it includes DC interface for S2.
sFEATURES
qOperating
Voltage
±4.0
to
±6.5V
qOperating
Current
±16mA
typ. at Vcc=±5V
qInternal
DC Interface For S2
qInternal
6dB Amplifier
qInternal
75ohm Driver
qBipolar
Technology
qPackage
Outline
DMP24

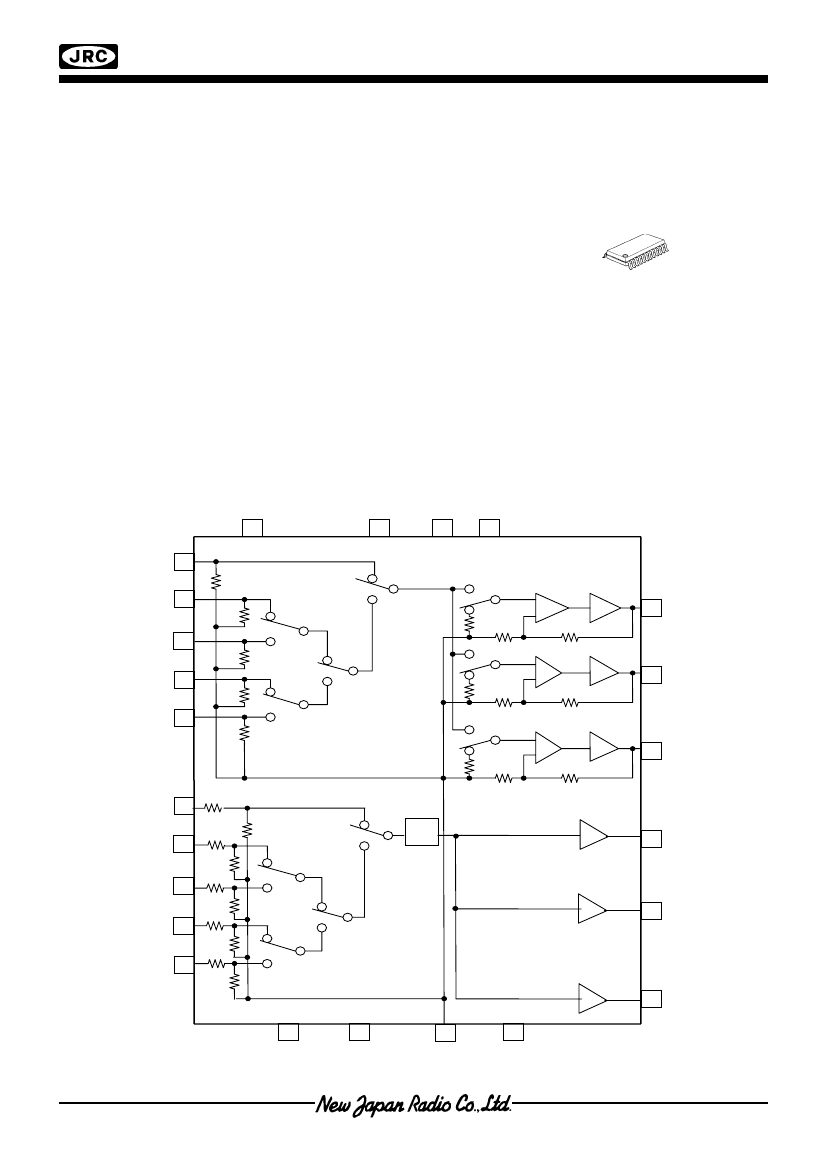

sBLOCK
DIAGRAM
Vcc
18
Vin1 14
Vin2 16
Vin3 19
Vin4
1
SW 3
6dB
Am p.
75Ω
Driv er
sPACKAGE
OUTLINE
NJM2596M
SW 2
9
SW 1
SW 1
15
SW 5
21
SW 5
SW 2
6dB
Am p.
75Ω
Driv er
10 Vout1
SW 4
SW 1
6dB
Am p.
75Ω
Driv er
8 Vout2
Vin5 22
SW 2
5 Vout3
SDCin1 13
SDCin2 17
SDCin3 20
SDCin4
2
SW 3
SW 1
C OM P
SW 2
11 SDCout1
SW 4
7
SDCout2
SDCin5 23
4
24
SW 3
3
SW 4
12
G ND
6
V
EE
SDCout3
Ver.1
-1-
