15.65±0.25
2.00
15.0
2.71
2.50
4-Ø0.92
Shell: Bronze
Plating- 5um (200u")
Tin-lead
Over 2.5um (100u") Cu
Insulator: UL94V-0 Rated
Thermoplastic
Color- White or Black
Contacts: Phosphor Bronze
2.00 Ref.
7.62 Ref.
Plating Options:
Standard- Gold Flash
on Contact Area,
3.8um (150u") Tin/Lead
on Solder Tail, all over
1.27um (50u") Nickel
-30 Option- 30u" Gold
on Contact Area, Tin/Lead
on Solder Tail, all over
Nickel
7.00 Ref.
13.3 Ref.
14.5 Ref.
2-Ø2.30
7.00
0.58
13.14
15.00 Ref.
2.50 Ref.
1.5
3.3
Recommended PCB Layout
Rated Voltage:
30V AC (rms)
0.25
12.5
2.8
7.0
Contact Current Rating:
1A Max.
Contact Resistance:
30 milliohms Max.
5.92 Ref.
7.12 Ref.
Insulation Resistance:
1000 Megohms Min.
5.92
2.7
5.1
Dielectric Withstanding:
750V AC
Insertion Force:
3.57kg max.
1.465 Ref.
3.91
2.00
Extraction Force:
1.02kg min.
Operating Temperature:
-55°C to 85°C
Durability:
1500 mating cycles min.
Tolerances
X.X ± 0.25
X.XX ± 0.15
Unless Stated
Otherwise

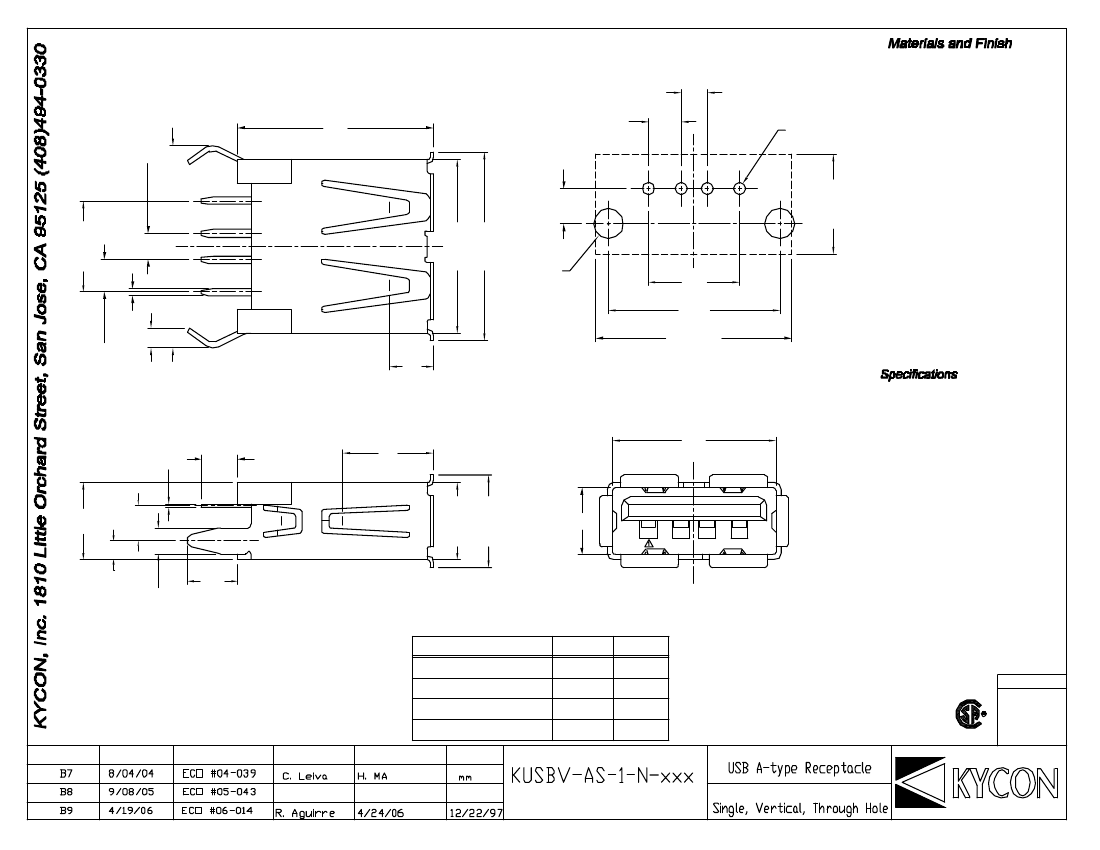

Part Number
KUSBV-AS-1-N-WHT
KUSBV-AS-1-N-WHT30
KUSBV-AS-1-N-BLK
KUSBV-AS-1-N-BLK30
REVISION
DATE
DESCRIPTION
DRAWN BY
REV CHECK BY
UNITS
Plating
Flash
30u"
Flash
30u"
Color
White
White
Black
Black
C
US
LR78160
REVISED BY
REV CHECK DATE
DATE
