CD74HCT368E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74HCT368E

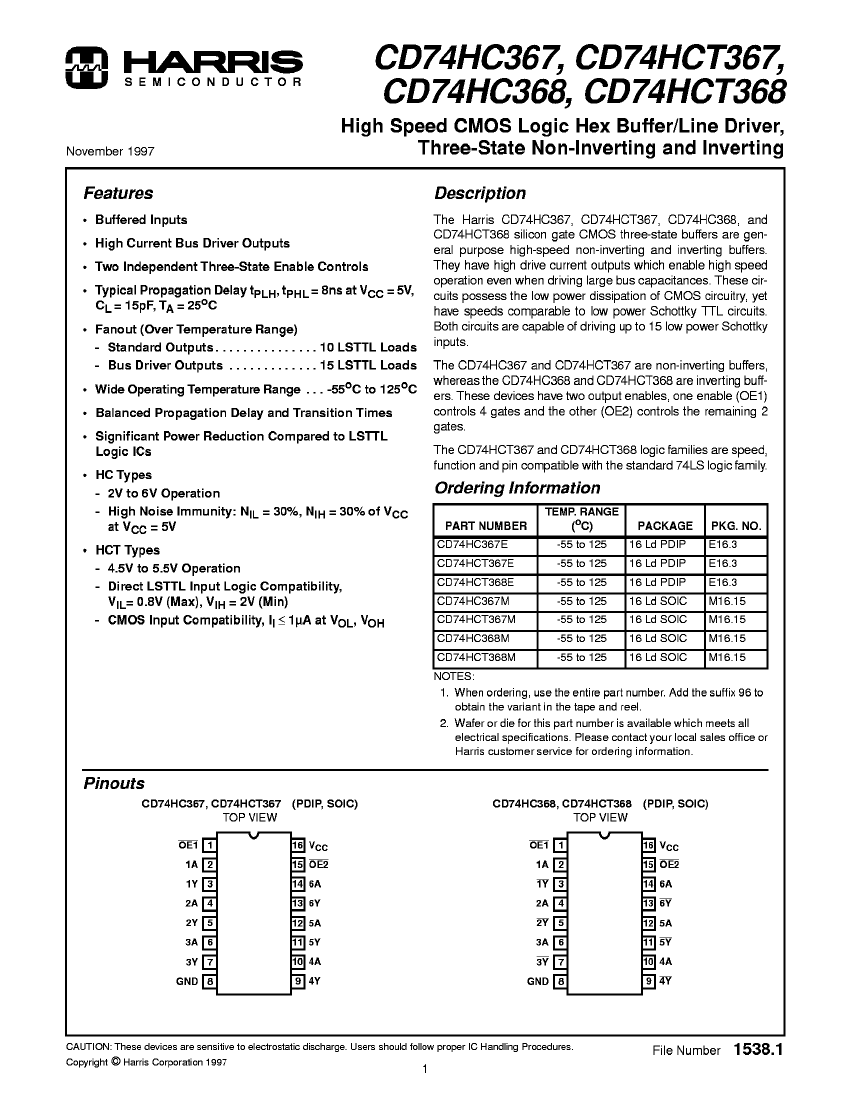

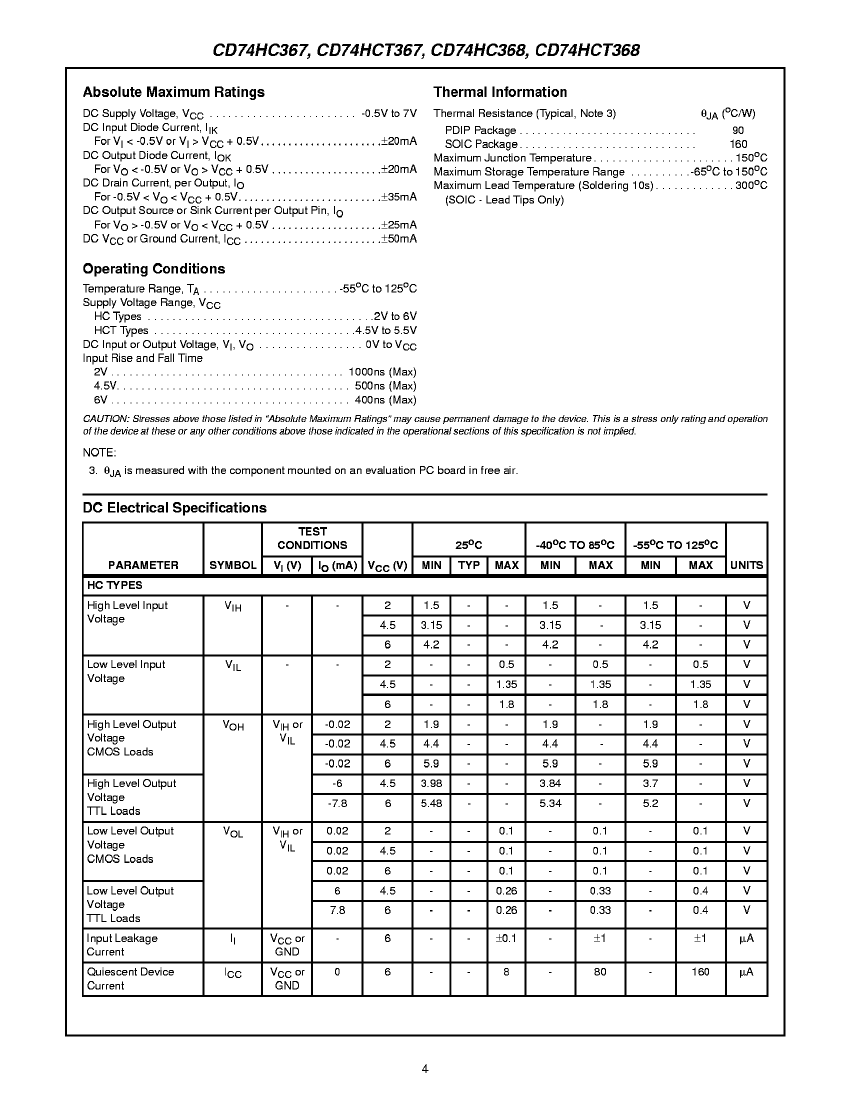

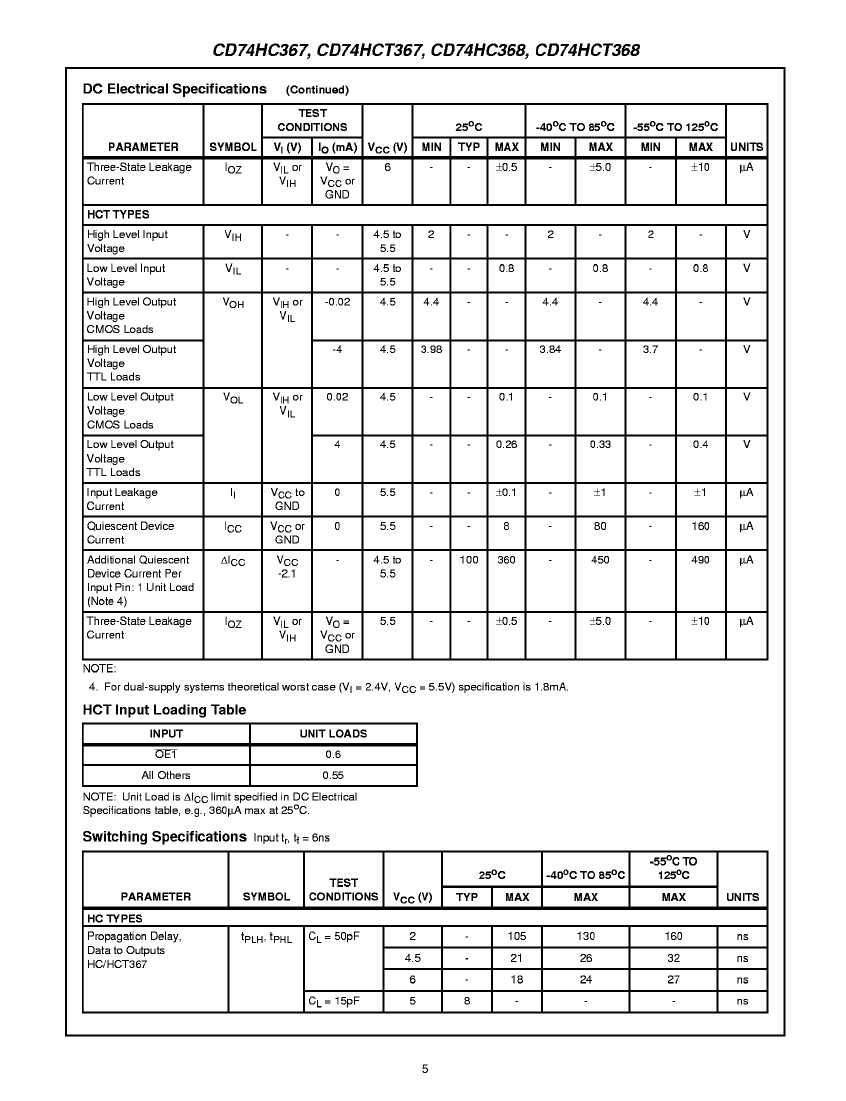

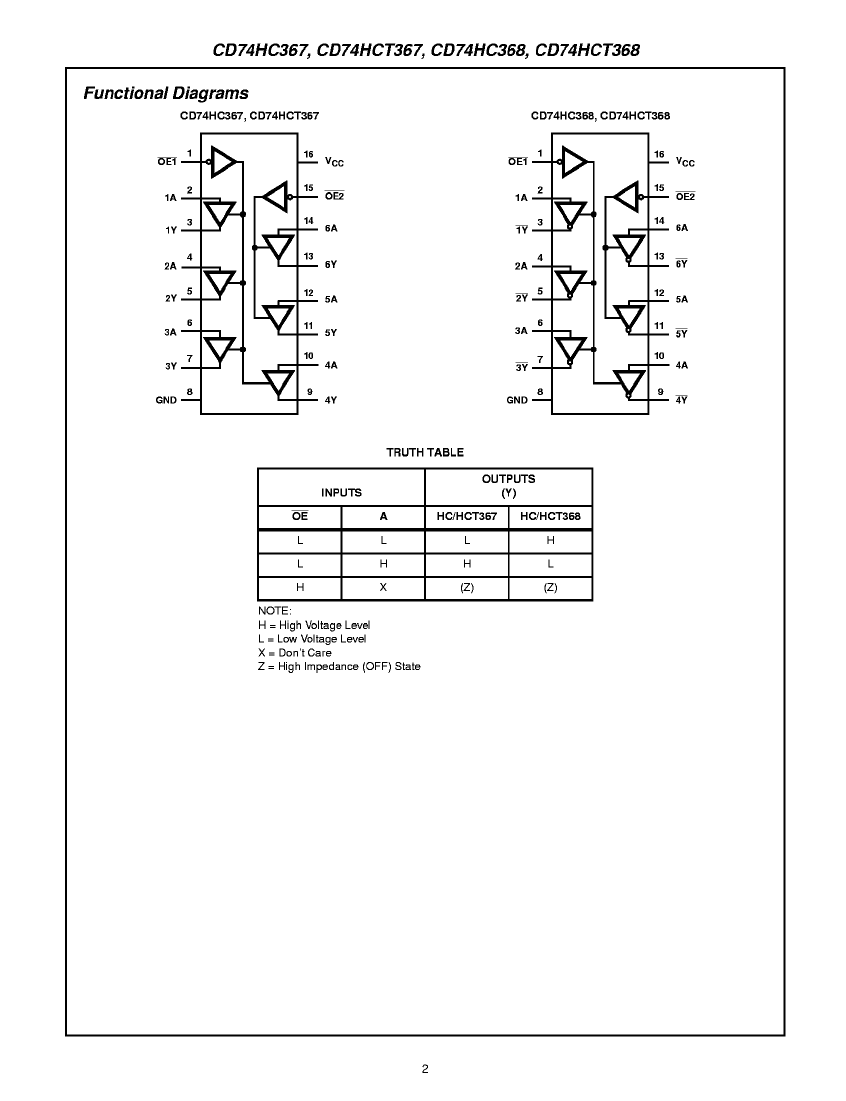

CD74HCT368E: DescriptionBus Driver, HCT Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDIP16; Categorylogic logic; File Size139KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD74HCT368E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HCT368E	-	-	View	Buy Now

CD74HCT368E Overview

Bus Driver, HCT Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDIP16

CD74HCT368E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Other features	ONE FUNCTION WITH TWO BITS
Control type	ENABLE LOW
series	HCT
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.004 A
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	45 ns
propagation delay (tpd)	45 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

CD74HCT368E Related Products

	CD74HCT368E	CD74HC368M	CD74HCT367M	CD74HCT367E	CD74HC367M96	CD74HCT368M96	CD74HC368M96	CD74HCT367M96	CD74HC367E
Description	Bus Driver, HCT Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDIP16	Bus Driver, HC/UH Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDSO16	Bus Driver, HCT Series, 1-Func, 6-Bit, True Output, CMOS, PDSO16	Bus Driver, HCT Series, 1-Func, 6-Bit, True Output, CMOS, PDIP16	Bus Driver, HC/UH Series, 1-Func, 6-Bit, True Output, CMOS, PDSO16,	Bus Driver, HCT Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDSO16	Bus Driver, HC/UH Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDSO16	Bus Driver, HCT Series, 1-Func, 6-Bit, True Output, CMOS, PDSO16	Bus Driver, HC/UH Series, 1-Func, 6-Bit, True Output, CMOS, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	HCT	HC/UH	HCT	HCT	HC/UH	HCT	HC/UH	HCT	HC/UH
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.004 A	0.006 A	0.004 A	0.004 A	0.006 A	0.004 A	0.006 A	0.004 A	0.006 A
Number of digits	6	6	6	6	6	6	6	6	6
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	TRUE	TRUE	TRUE	INVERTED	INVERTED	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	SOP	SOP	SOP	SOP	DIP
Encapsulate equivalent code	DIP16,.3	SOP16,.25	SOP16,.25	DIP16,.3	SOP16,.25	SOP16,.25	SOP16,.25	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	5 V	2/6 V	5 V	5 V	2/6 V	5 V	2/6 V	5 V	2/6 V
Prop。Delay @ Nom-Sup	45 ns	32 ns	38 ns	38 ns	32 ns	45 ns	32 ns	38 ns	32 ns
propagation delay (tpd)	45 ns	160 ns	38 ns	38 ns	160 ns	45 ns	160 ns	38 ns	160 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	6 V	5.5 V	5.5 V	6 V	5.5 V	6 V	5.5 V	6 V
Minimum supply voltage (Vsup)	4.5 V	2 V	4.5 V	4.5 V	2 V	4.5 V	2 V	4.5 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Harris	-	-	-	Harris	Harris	Harris	Harris	Harris
