19002-0025 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 19002-0025

19002-0025: DescriptionD-Sub Contacts SOCKET CONTACT 24-20 gold over copper; CategoryThe connector terminals; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

19002-0025 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	19002-0025	-	-	View	Buy Now

19002-0025 Overview

D-Sub Contacts SOCKET CONTACT 24-20 gold over copper

19002-0025 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Factory Lead Time	5 weeks
Is Samacsys	N
Manufacturer's serial number	19002
terminal gender	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL
Conductor cross section	2 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 11/02/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

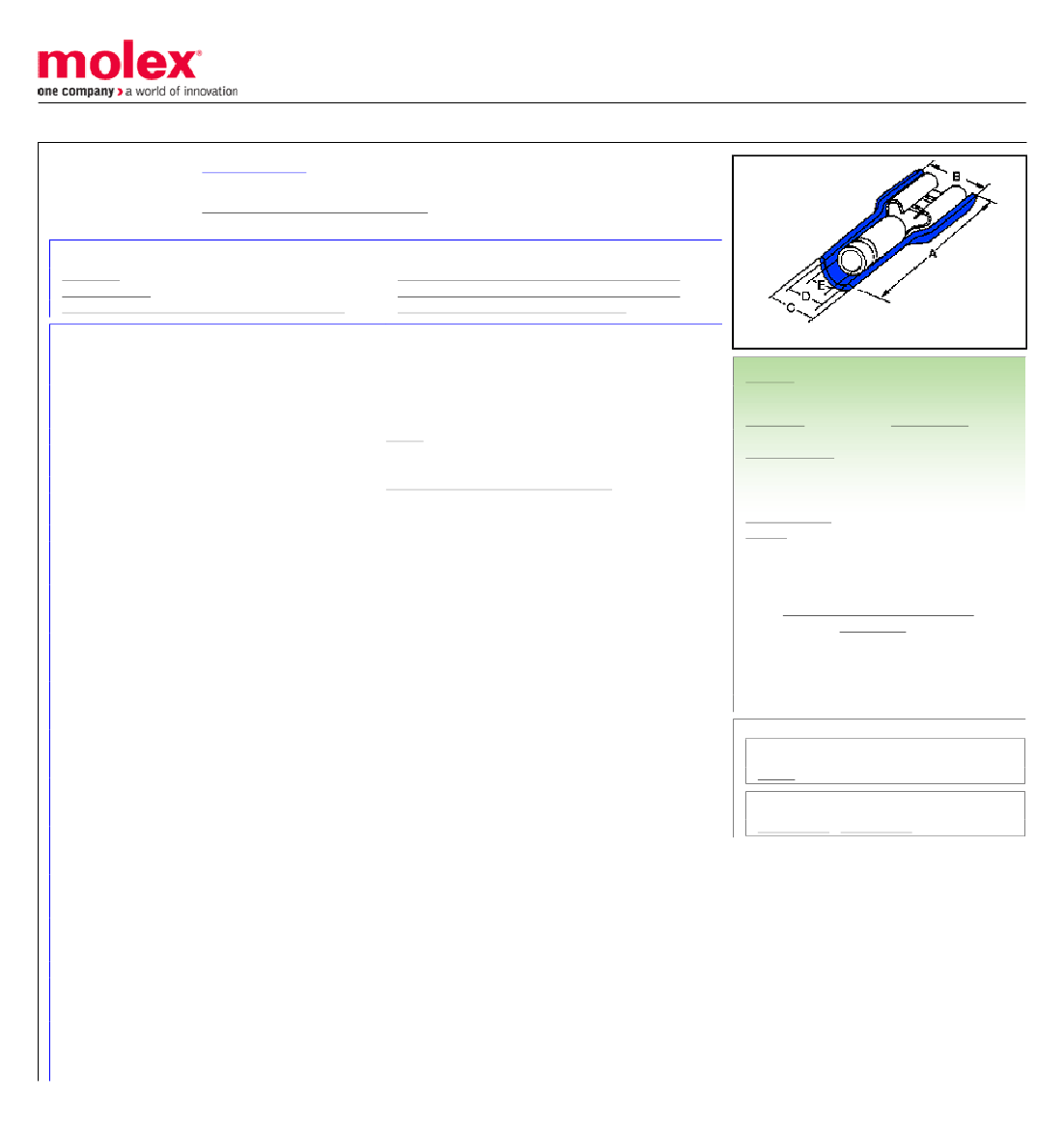

0190020025

Active

Standard Quick-Disconnect Terminals

Avikrimp Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Mylar Tape

Documents:

3D Model

Drawing (PDF)

Product Specification PS-19902-011-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Crimp Quality Equipment

Insulated

Overview

Product Name

Type

UPC

Physical

Barrel Type

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Orientation

Packaging Type

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Product Specification

Product Specification PS-19902-014-001 (PDF)

Product Specification PS-19902-015-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR18689

E79133

Quick Disconnects

19002

Yes

Fully

Standard Quick-Disconnect Terminals

Avikrimp

Quick Disconnect

800753027312

Closed

Blue

94V-2

Female

Yes

Nylon (PA)

None

Brass

Tin

1.164/g

Straight

Adhesive Tape on Reel

0.81mm

6.35mm

-65°C to +105°C

3.94mm max.

14, 16

1.30-2.00

300V

N/A

BB-5263T

PS-19902-011-001, PS-19902-014-001,

PS-19902-015-001

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

19002 Series

Use With

19001-0006 , 19001-0007
