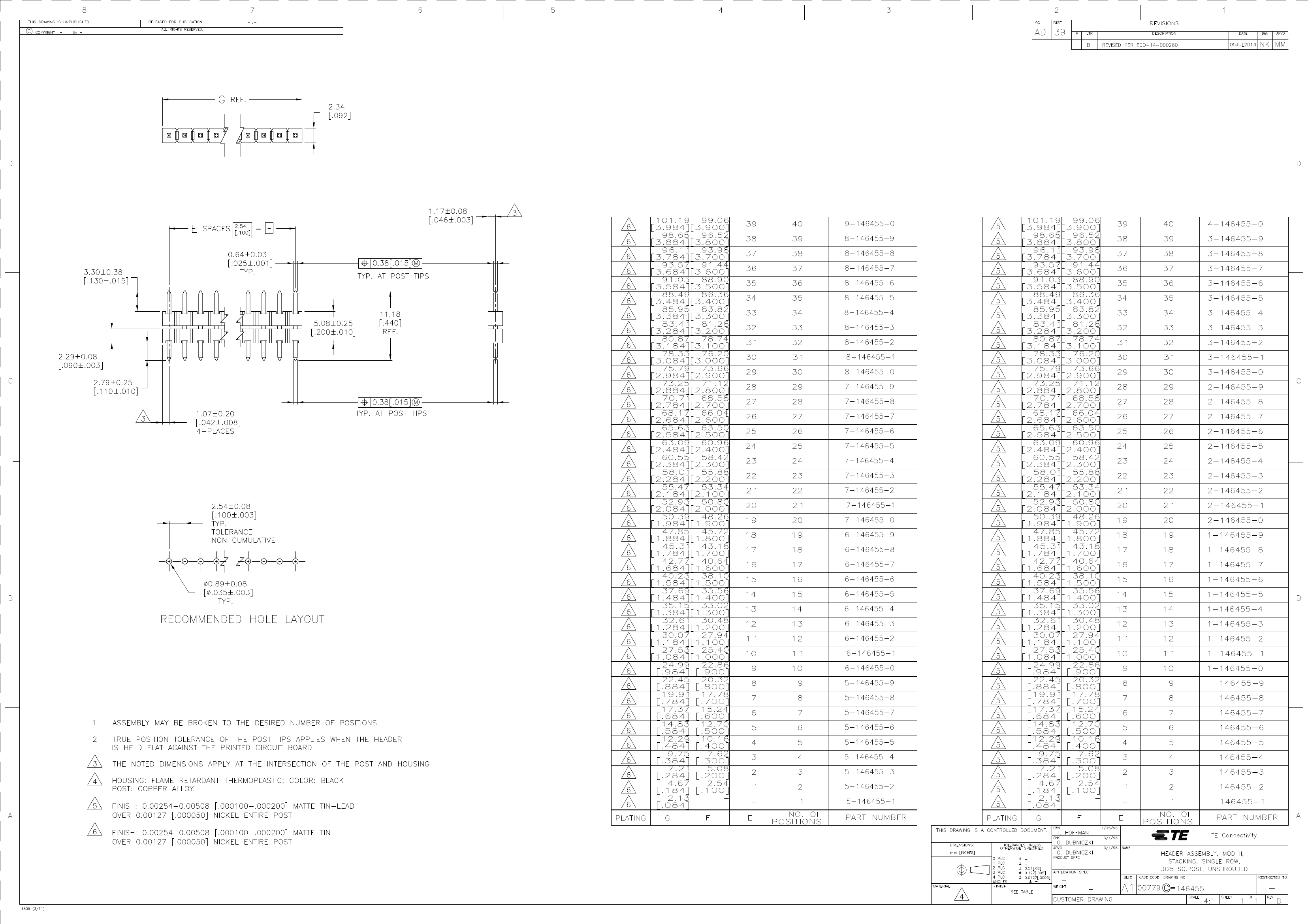

17 MODII HDR SRST UNSHRD STKG
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connectors and terminals terminate to | A printed circuit board |
| series | AMPMODU |
| shape | standard |
| lugs | no |
| Stackable | yes |
| PCB mounting direction | vertical |
| Number of Positions | 17 |
| Rows | 1 |
| Insulation resistance (MΩ) | 5000 |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | copper alloy |
| PCB terminal termination area plating materials | tin |
| Terminal shape | square |
| Terminal contact plating material | tin |
| Terminal contact plating thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | 3 |
| PCB Terminal Termination Area Plating Thickness (µin) | 50 |
| Terminal layout | Direct plug-in |
| PCB Termination Methods | Through hole |
| Termination cylinder length | 11.18 mm [ .44 in ] |
| PCB installation and fixation | Without |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell color | black |
| Shell material | thermoplastic |
| stacking height | 5.08 mm [ .2 in ] |
| Joint post length | 2.79 mm [ .109 in ] |
| tail length | 3.3 mm [ .13 in ] |
| Working group temperature range (°C) | -65 – 125 |
| Assembly process characteristics | pick and place cover |
| pick and place cover | with |
| approved standards | CSA LE7189, UL E28476 |
| UL flammability rating | UL 94V-0 |
