194314: DescriptionD-Sub Standard Connectors 25P 9MM VERT MALE THREAD M3 SMT; CategoryThe connector The connector; File Size134KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

194314 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	194314	-	-	View	Buy Now

194314 Overview

D-Sub Standard Connectors 25P 9MM VERT MALE THREAD M3 SMT

194314 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.354 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	4.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal pitch	2.7686 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 30 St.

5 x 18 = 90

max. 138

Pin 1

+0,3

tray packaging

packaging unit 30 pcs

17,5

5,8

5,9

Aussparung in Arbeit

2

0,7

9

18

58

1,4

1,5

Leiterplatte

0,6

2,8

4 x 58 = 232

max. 325

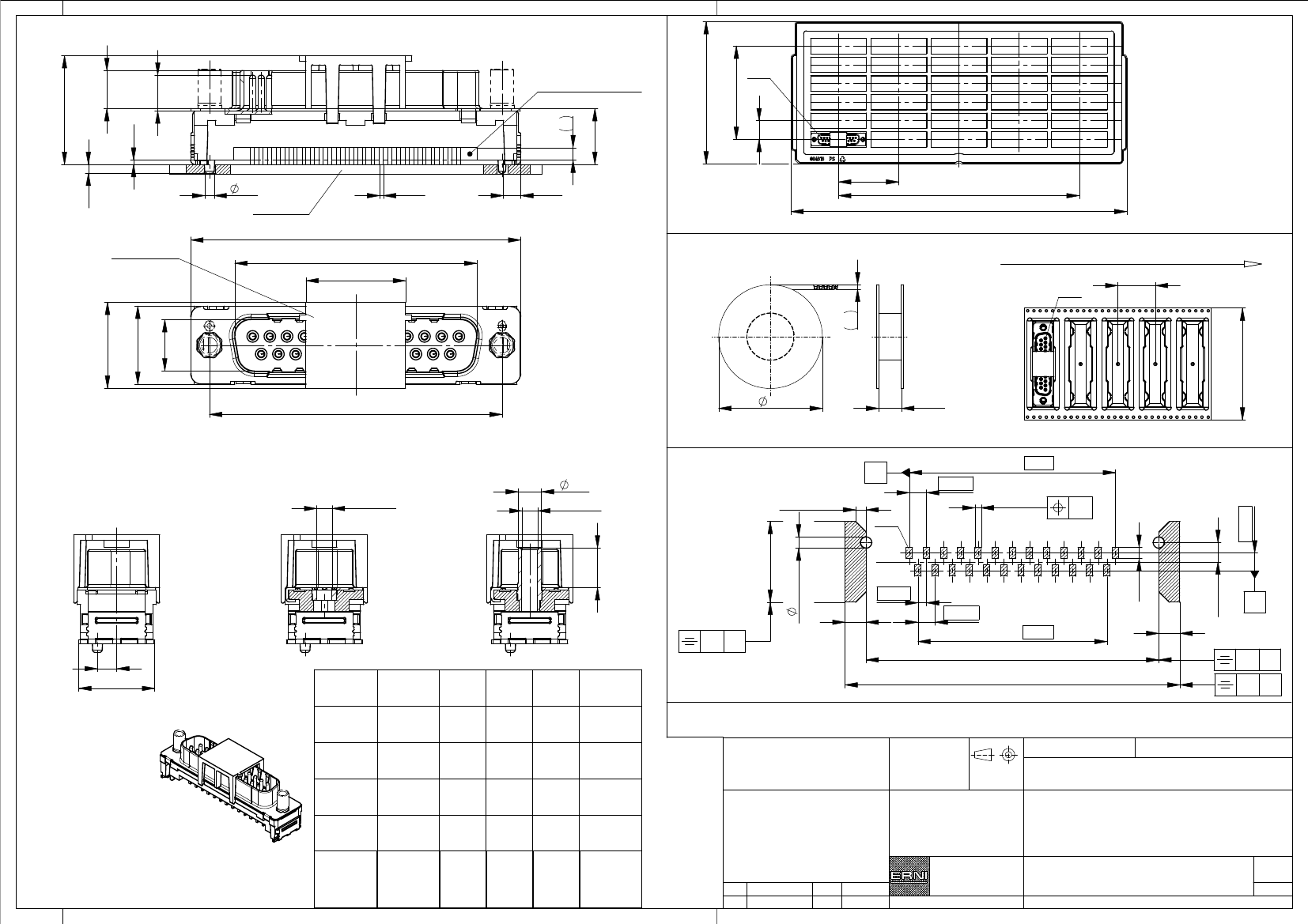

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

pcb

Ansaughaube

53

-0,4

+0,2

hood

38,9

16

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel off Direction

24

Pin 1

12,6

±0,3

13,8

8,25

+0,2

1

13

21

14

25

47

±0,1

330

72,5

ohne /

without

max. Einschraubtiefe 7,5 mm

Mutter /

nut

Bolzen /

bolt

max. Einschraubtiefe 5,5 mm

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

thread depth max. 7,5 mm

Gewinde

/ thread

14

M3

/ #4-40

thread depth max. 5,5 mm

3,7

Gewinde

/ thread

M3

/ #4-40

Layoutvorschlag:

recommended layout:

1,7 x 45° (4x)

A

12 x 2,76 = 33,12

2,76

1

(25x)

2,84

3,1

±0,05

1,8

B

3,4

0,1

A

0,1

Pin 1

6,4

13

Bohrung

/ hole

1,8

±0,05

1,38

3,4

2,76

11 x 2,76 = 30,36

47

±0,05

0,1

3,1

12,2

B

194315

M 1:1

194310

194311

194312

194313

194314

Ident.-Nr.

53,8

±0,2

X

#4-40

M3

#4-40

M3

ohne

without

Mutter

Bolzen Bemerkung

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

194316

194317

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Anschlussbereich verzinnt

terminal area tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

194318

194319

Ident-Nr.

part-no.

tape &reel

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

g

Index

04.02.2016

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 25-SMD-9,0-BA8

TMC-P 25-SMD-9,0-type 8

class: 2

part-no.

tray

thread

bolt

remark

www.ERNI.com

Class

144909

TMCP

72

I

A3
