152-3525: DescriptionGeneral Purpose Relays Power PCB Relay SPDT Sealed 12VDC; CategoryThe connector; File Size76KB，1 Pages; ManufacturerKobiconn

Download Datasheet Parametric Compare View All

152-3525 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	152-3525	-	-	View	Buy Now

152-3525 Overview

General Purpose Relays Power PCB Relay SPDT Sealed 12VDC

152-3525 Parametric

Parameter Name	Attribute value
Product Category	D-Sub Standard Connectors
Manufacturer	Kobiconn
RoHS	No
Number of Positions	25 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Right
Number of Rows	2 Row
Shell Size	3 (B)
Contact Plating	Brass
Packaging	Bulk
Contact Material	Brass
Current Rating	5 A
Gender	Male
Insert Arrangement	B25
Shell Material	Steel
Shell Plating	Tin
Factory Pack Quantity	50
Type	Plug

Preview

Download Datasheet

View All

D-Sub Connectors

152-3509, 152-3515, 152-3525

D-Sub Connectors

.274

.117

.109

typ.

A

.107

.11

.984

.004

9 pin

.274

.117

4-40 UNC

B

C

Front View

.72

.274

.49

.117

.109

typ.

15 pin

.109

typ.

152-3509

ø.047

typ.

.120

.004 typ.

1.31

.004

152-3515

ø.047

typ.

.120

.004 typ.

1.85

.004

152-3525

PCB Hole Layouts

.24

1000

.37

Impedance (Ohm)

100

9 Pin

15 Pin

37 Pin

25 Pin

ø.047

typ.

.120

.004 typ.

ø.04.03 typ.

.31

.12

.32

Side View

.11

25 pin

ø.112

Bottom View

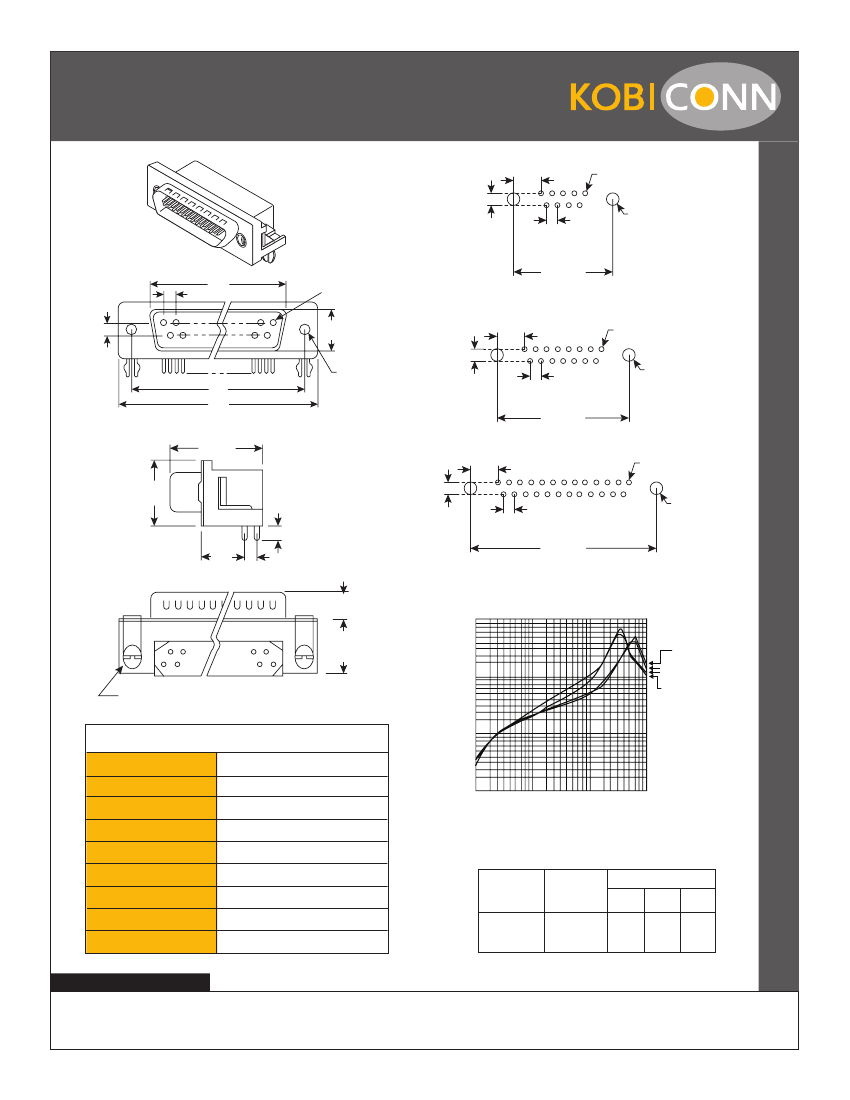

152-3509, 152-3515, 152-3525

SPECIFICATIONS

Type:

Contact resistance:

Insulator resistance:

Current rating:

Withstand voltage:

PC mount, D-Subminature male

20mΩ max. @ DC 100mA

5000MΩ min. @ DC 500V

5A

1000VAC for 1 minute

10

1

100

10

Frequency (MHz)

Coil: Y.CØ 1.0x63/m

Meter: HP-4191A

1

1000

Dimensions: in.

Dimensions In.

A

.67

1.00

1.50

B

.98

1.30

1.80

C

1.22

1.54

2.00

Operating temperature:

-55°~+105°C

Contact:

Housing:

Filter:

brass

PBT & 30% glass fiber

RFI/EMI

Mouser

Stock No.

152-3509

152-3515

152-3525

No. of

Pins

9

15

25

Date Last Revised: 05/08/07

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

KC-

300666

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
