M80-4E10605F1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M80-4E10605F1

M80-4E10605F1: DescriptionHeaders u0026 Wire Housings 03+03 WAY ES/BORE FEMALE CRIMP W/JS; CategoryThe connector; File Size598KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-4E10605F1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4E10605F1	-	-	View	Buy Now

M80-4E10605F1 Overview

Headers u0026 Wire Housings 03+03 WAY ES/BORE FEMALE CRIMP W/JS

M80-4E10605F1 Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	Harwin
RoHS	Details
Product	Wire Housings
Type	Receptacle Housing
Number of Positions	6 Position
Pitch	2 mm
Number of Rows	2 Row
Mounting Style	Panel
Termination Style	-
Mounting Angle	Straight
Contact Gender	-
Contact Plating	-
Application	Supplied with M80-0190005 Contacts loose
Contact Material	-
Contact Type	Socket
Flammability Rating	UL 94 V-0
Housing Gender	Female
Housing Material	Polyphenylene Sulfide (PPS)
Insulation Resistance	100 MOhms
Row Spacing	2 mm
Factory Pack Quantity	1
Unit Weight	0.049101 oz

Preview

Download Datasheet

View All

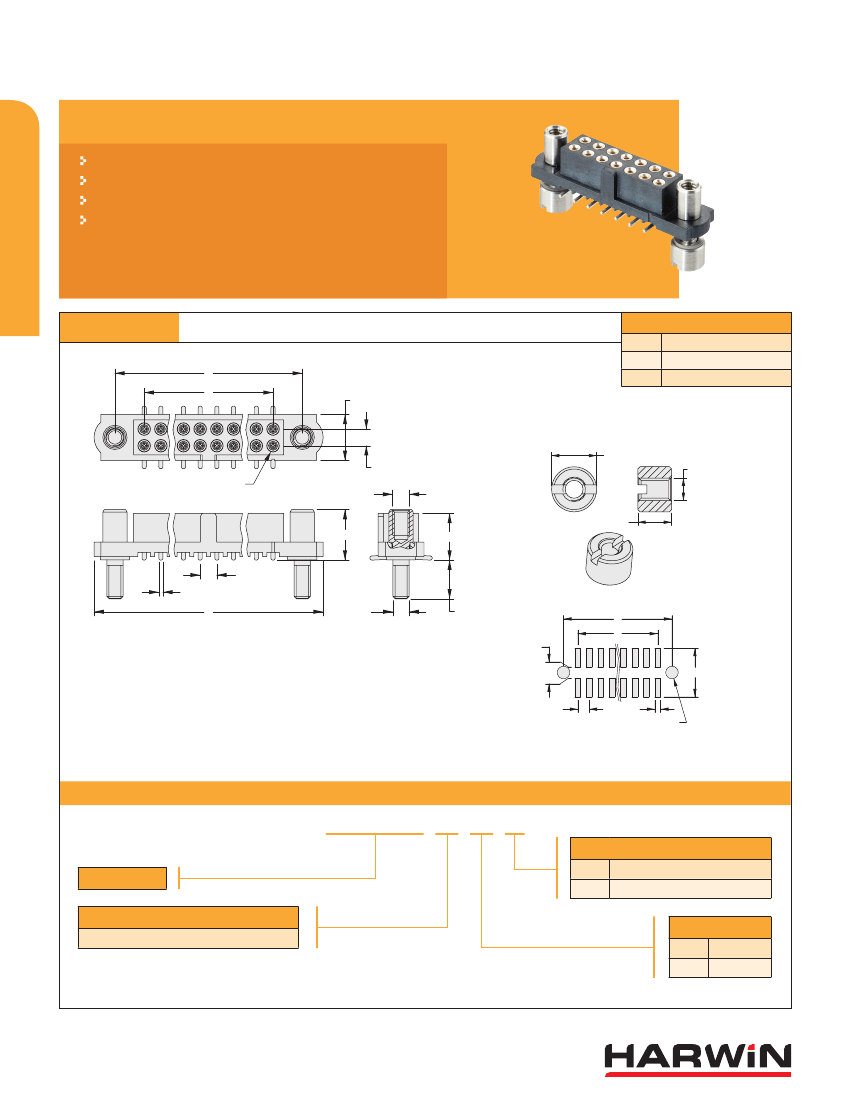

Datamate J-Tek Connectors

Female Vertical Surface Mount Reverse Fix

Fully shrouded contacts.

Polarised mouldings.

Includes Board Mount fixing.

Mates with male Datamate J-Tek connectors with compatible

Reverse Fix jackscrews.

DATAMATE J-TEK

REVERSE FIX

5.50

CALCULATION

B + 12

Total no. of contacts - 2

B+7

Board Mount Nut,

2 per connector

2.00

No. 1 contact

3.00

5.60

Ø4.00

6.05

2.00

Ø0.50

Board Mount

Jackscrew

2.00

8.50

2.00

1.00

Ø2.20 min

Recommended PC Board Pattern

HOW TO ORDER

M80 - 4S1 XX XX FX

TYPE

SERIES CODE

TOTAL NO. OF CONTACTS

04, 06, 08, 10, 12, 14, 20, 26, 34, 42, 50

3.5mm Board Mount Jackscrew

5mm Board Mount Jackscrew

FINISH

Gold

Gold + Tin

All dimensions in mm.

www.harwin.com
