DWG. NO.
SA83900
PRO-E
YHLZG

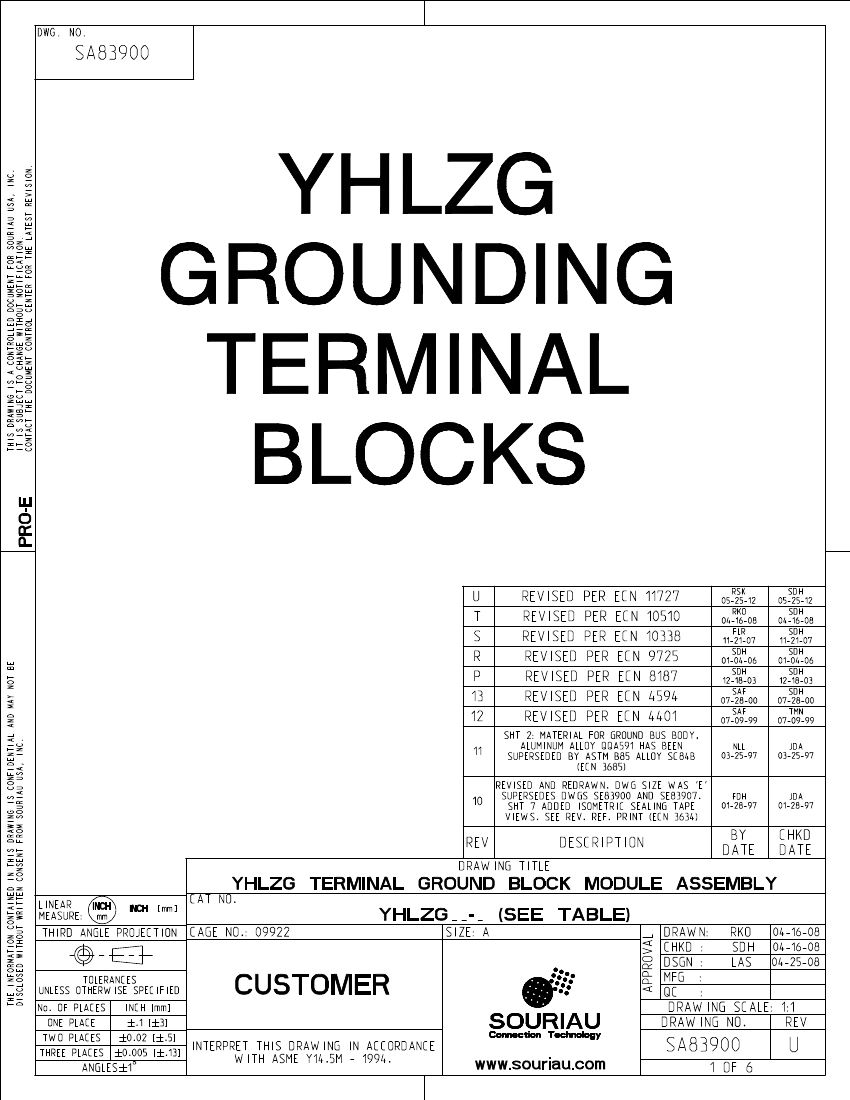

GROUNDING
TERMINAL
BLOCKS
U
T
S
R
REVISED PER ECN 11727
REVISED PER ECN 10510
REVISED PER ECN 10338
REVISED PER ECN 9725
REVISED PER ECN 8187
REVISED PER ECN 4594
REVISED PER ECN 4401
SHT 2: MATERIAL FOR GROUND BUS BODY,
ALUMINUM ALLOY QQA591 HAS BEEN
SUPERSEDED BY ASTM B85 ALLOY SC84B
(ECN 3685)
REVISED AND REDRAWN. DWG SIZE WAS 'E'
SUPERSEDES DWGS SE83900 AND SE83907.
SHT 7 ADDED ISOMETRIC SEALING TAPE
VIEWS. SEE REV. REF. PRINT (ECN 3634)
THIS DRAWING IS A CONTROLLED DOCUMENT FOR SOURIAU USA, INC.
IT IS SUBJECT TO CHANGE WITHOUT NOTIFICATION.
CONTACT THE DOCUMENT CONTROL CENTER FOR THE LATEST REVISION.
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND MAY NOT BE
DISCLOSED WITHOUT WRITTEN CONSENT FROM SOURIAU USA, INC.
P
13
12
11
RSK
05-25-12
RKO
04-16-08
FLR
11-21-07
SDH
01-04-06
SDH
12-18-03
SAF
07-28-00
SAF
07-09-99
NLL
03-25-97
SDH
05-25-12
SDH
04-16-08
SDH
11-21-07
SDH
01-04-06
SDH
12-18-03
SDH
07-28-00
TMN
07-09-99
JDA
03-25-97
10
FDH
01-28-97
JDA
01-28-97
REV
DRAWING TITLE
DESCRIPTION
BY
DATE
CHKD
DATE
YHLZG TERMINAL GROUND BLOCK MODULE ASSEMBLY
LINEAR
MEASURE:
CAT NO.
YHLZG__-_ (SEE TABLE)
APPROVAL
CAGE NO.: 09922
SIZE: A
DRAWN:
CHKD :
DSGN :
MFG :
QC
:
RKO
SDH
LAS
04-16-08
04-16-08
04-25-08
THIRD ANGLE PROJECTION
TOLERANCES
UNLESS OTHERWISE SPECIFIED
No. OF PLACES
ONE PLACE
TWO PLACES
THREE PLACES
INCH [mm]
#.1 [ #3]
# 0.02 [ #.5]
# 0.005 [ #.13]
CUSTOMER
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ASME Y14.5M - 1994.
DRAWING SCALE: 1:1
DRAWING NO.
REV
SA83900
www.souriau.com
1 OF 6
U
ANGLES #1 $
DWG. NO.
SA83900

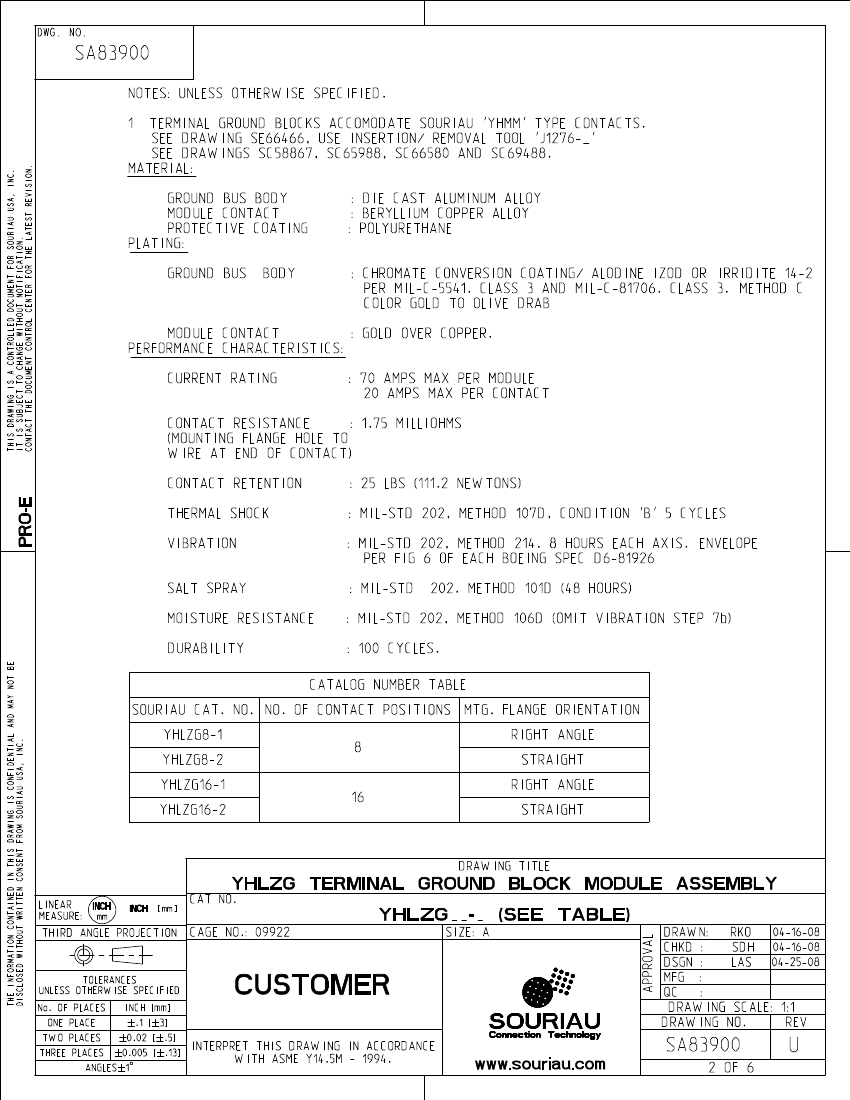

NOTES: UNLESS OTHERWISE SPECIFIED.
1
TERMINAL GROUND BLOCKS ACCOMODATE SOURIAU 'YHMM' TYPE CONTACTS.
SEE DRAWING SE66466, USE INSERTION/ REMOVAL TOOL 'J1276-_'
SEE DRAWINGS SC58867, SC65988, SC66580 AND SC69488.
MATERIAL:
GROUND BUS BODY
MODULE CONTACT
PROTECTIVE COATING
PLATING:
GROUND BUS
BODY
: DIE CAST ALUMINUM ALLOY
: BERYLLIUM COPPER ALLOY
: POLYURETHANE
: CHROMATE CONVERSION COATING/ ALODINE IZOD OR IRRIDITE 14-2
PER MIL-C-5541. CLASS 3 AND MIL-C-81706. CLASS 3.
METHOD C
COLOR GOLD TO OLIVE DRAB
THIS DRAWING IS A CONTROLLED DOCUMENT FOR SOURIAU USA, INC.
IT IS SUBJECT TO CHANGE WITHOUT NOTIFICATION.
CONTACT THE DOCUMENT CONTROL CENTER FOR THE LATEST REVISION.
MODULE CONTACT
: GOLD OVER COPPER.
PERFORMANCE CHARACTERISTICS:
CURRENT RATING
: 70 AMPS MAX PER MODULE
20 AMPS MAX PER CONTACT
CONTACT RESISTANCE
: 1.75 MILLIOHMS
(MOUNTING FLANGE HOLE TO
WIRE AT END OF CONTACT)
CONTACT RETENTION
THERMAL SHOCK
VIBRATION
SALT SPRAY
MOISTURE RESISTANCE
DURABILITY
: 25 LBS (111.2 NEWTONS)
: MIL-STD 202, METHOD 107D, CONDITION 'B' 5 CYCLES
: MIL-STD 202, METHOD 214. 8 HOURS EACH AXIS. ENVELOPE
PER FIG 6 OF EACH BOEING SPEC D6-81926
: MIL-STD
202. METHOD 101D (48 HOURS)
PRO-E
: MIL-STD 202, METHOD 106D (OMIT VIBRATION STEP 7b)
: 100 CYCLES.
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND MAY NOT BE
DISCLOSED WITHOUT WRITTEN CONSENT FROM SOURIAU USA, INC.
CATALOG NUMBER TABLE
SOURIAU CAT. NO. NO. OF CONTACT POSITIONS MTG. FLANGE ORIENTATION
YHLZG8-1
YHLZG8-2
YHLZG16-1
YHLZG16-2
8
RIGHT ANGLE
STRAIGHT
RIGHT ANGLE
STRAIGHT
16
DRAWING TITLE
YHLZG TERMINAL GROUND BLOCK MODULE ASSEMBLY
LINEAR
MEASURE:
CAT NO.
YHLZG__-_ (SEE TABLE)
APPROVAL
CAGE NO.: 09922
SIZE: A
DRAWN:
CHKD :
DSGN :
MFG :
QC
:
RKO
SDH
LAS
04-16-08
04-16-08
04-25-08
THIRD ANGLE PROJECTION
TOLERANCES
UNLESS OTHERWISE SPECIFIED
No. OF PLACES
ONE PLACE
TWO PLACES
THREE PLACES
INCH [mm]
#.1 [ #3]
# 0.02 [ #.5]
# 0.005 [ #.13]
CUSTOMER
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ASME Y14.5M - 1994.
DRAWING SCALE: 1:1
DRAWING NO.
REV
SA83900
www.souriau.com
2 OF 6
U
ANGLES #1 $
DWG. NO.
SA83900
TYP
.096
[
2.44]
THIS DRAWING IS A CONTROLLED DOCUMENT FOR SOURIAU USA, INC.
IT IS SUBJECT TO CHANGE WITHOUT NOTIFICATION.
CONTACT THE DOCUMENT CONTROL CENTER FOR THE LATEST REVISION.
.11
[
2.7]
TYP .064
[
1.63
]
GROUND BUS BODY
MODULE CONTACTS
.90
[
22.86]
.65
[
16.51
]
.385 #
.010
[
9.79 #
0.25
]
4X
.06
[
1.57
]
.283 #
.003
[
7.19 #
0.07]
VARIATION NO.
NO. OF POSITIONS
1.821 #
.010
[
46.25 #
0.25
]
1.214 #
.010
[
30.84 #
0.25
]
.607 #
.010
[
15.42 #
0.25
]
SEE VIEW A FOR
TYPICAL LETTERING
2.33
[
59.16
]
DATE CODE
YHLZG__-__
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND MAY NOT BE
DISCLOSED WITHOUT WRITTEN CONSENT FROM SOURIAU USA, INC.
PRO-E
.255 #
.020
[
6.477 #
0.508]
TYP .257 #
.010
[
6.53 #
0.25
]
.250 #
.020
[
6.35 #
0.508]
9X STAKE
TYPICAL LETTERING
FOR ALL SIZES

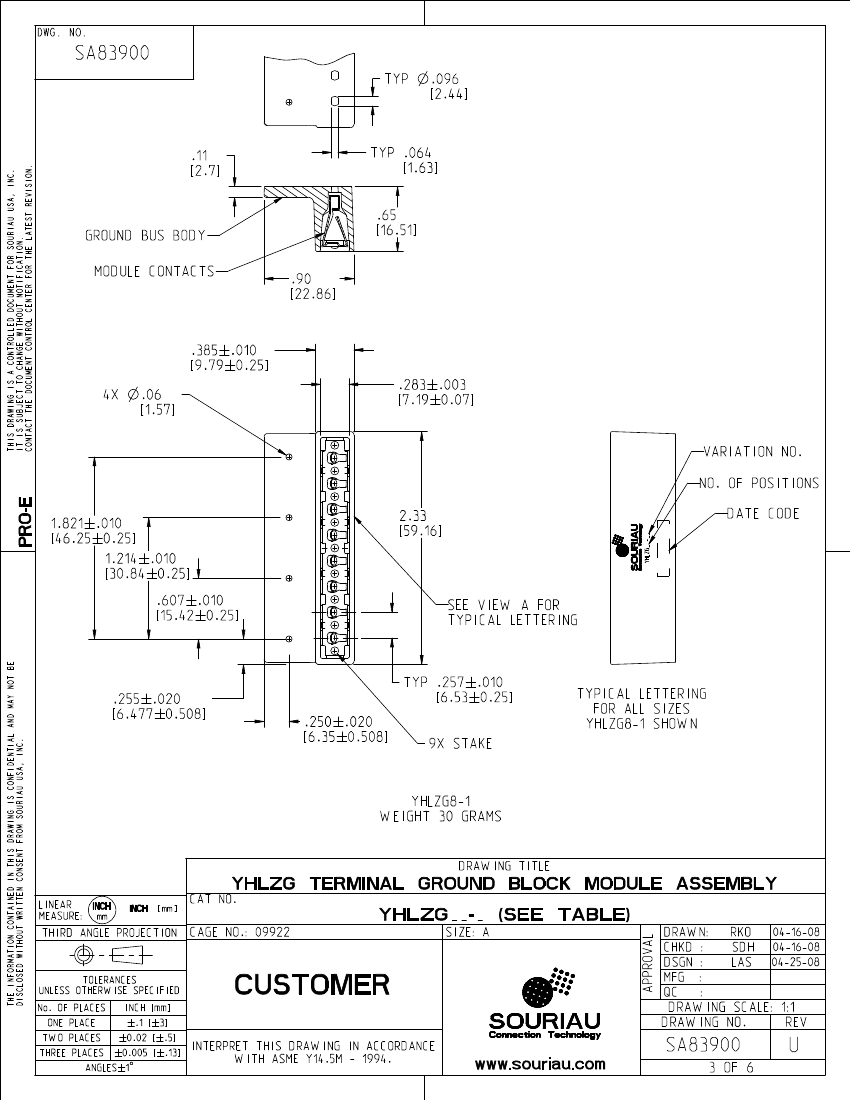

YHLZG8-1 SHOWN
YHLZG8-1
WEIGHT 30 GRAMS
DRAWING TITLE
YHLZG TERMINAL GROUND BLOCK MODULE ASSEMBLY
LINEAR
MEASURE:
CAT NO.
YHLZG__-_ (SEE TABLE)
APPROVAL
CAGE NO.: 09922
SIZE: A
DRAWN:
CHKD :
DSGN :
MFG :
QC
:
RKO
SDH
LAS
04-16-08
04-16-08
04-25-08
THIRD ANGLE PROJECTION
TOLERANCES
UNLESS OTHERWISE SPECIFIED
No. OF PLACES
ONE PLACE
TWO PLACES
THREE PLACES
INCH [mm]
#.1 [ #3]
# 0.02 [ #.5]
# 0.005 [ #.13]
CUSTOMER
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ASME Y14.5M - 1994.
DRAWING SCALE: 1:1
DRAWING NO.
REV
SA83900
www.souriau.com
3 OF 6
U
ANGLES #1 $
DWG. NO.
SA83900
TYP .257 #
.010
[
6.53 #
0.25
]
THIS DRAWING IS A CONTROLLED DOCUMENT FOR SOURIAU USA, INC.
IT IS SUBJECT TO CHANGE WITHOUT NOTIFICATION.
CONTACT THE DOCUMENT CONTROL CENTER FOR THE LATEST REVISION.
9X STAKE
.283 #
.003
[
7.19 #
0.07]
.270 #
.005
[
6.85 #
0.12
]
2.33
[
59.15
]
4X
MODULE CONTACTS
GROUND BUS BODY
.06
[
1.57
]
.17
[
4.39
]
1.03
[
26.04]
.385 #
.010
[
9.78 #
0.25
]
SEE VIEW A FOR
TYPICAL LETTERING
.38
[ ]
9.5
PRO-E
.253 #
.010
[
6.44 #
0.25
]
.607 #
.010
[
15.42 #
0.25
]
1.214 #
.010
[
30.84 #
0.25
]
1.821 #
.010
[
46.25 #
0.25
]
.11
[
2.7]
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND MAY NOT BE
DISCLOSED WITHOUT WRITTEN CONSENT FROM SOURIAU USA, INC.
TYP
.096
[
2.44]
TYP .070
[
1.78
]

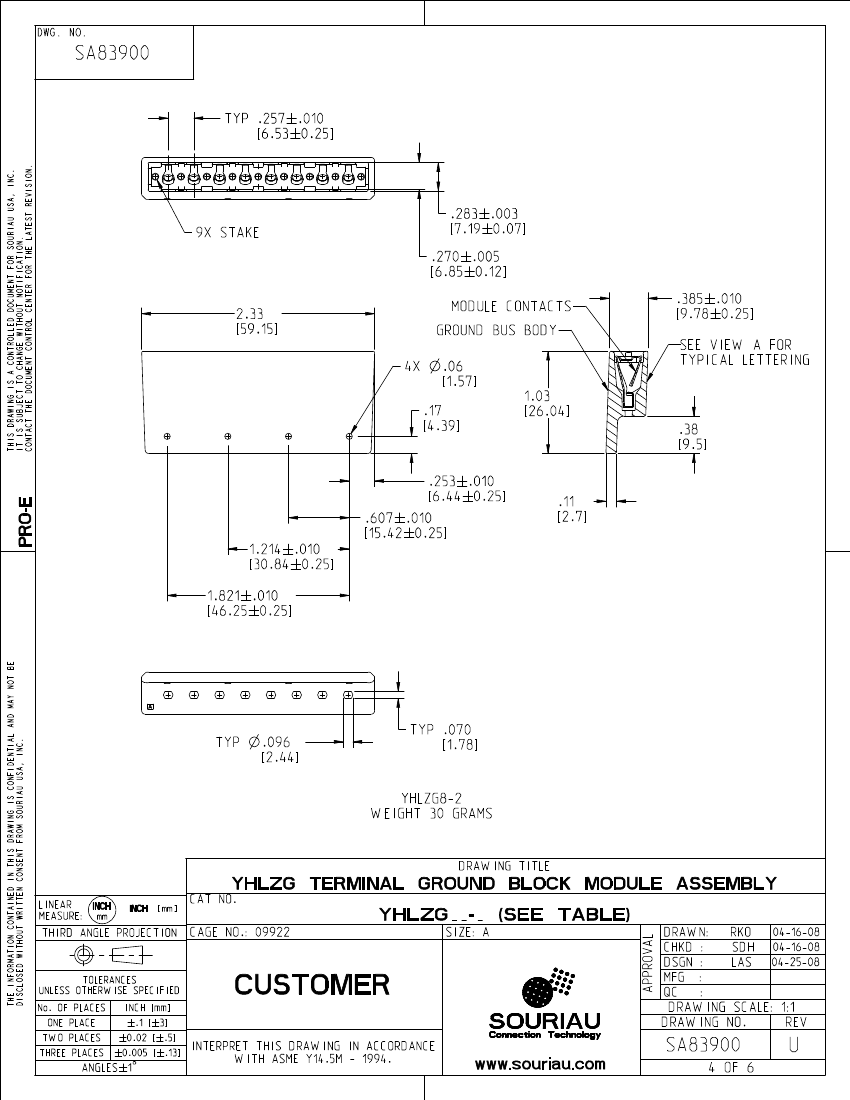

YHLZG8-2
WEIGHT 30 GRAMS
DRAWING TITLE
YHLZG TERMINAL GROUND BLOCK MODULE ASSEMBLY
LINEAR
MEASURE:
CAT NO.
YHLZG__-_ (SEE TABLE)
APPROVAL
CAGE NO.: 09922
SIZE: A
DRAWN:
CHKD :
DSGN :
MFG :
QC
:
RKO
SDH
LAS
04-16-08
04-16-08
04-25-08
THIRD ANGLE PROJECTION
TOLERANCES
UNLESS OTHERWISE SPECIFIED
No. OF PLACES
ONE PLACE
TWO PLACES
THREE PLACES
INCH [mm]
#.1 [ #3]
# 0.02 [ #.5]
# 0.005 [ #.13]
CUSTOMER
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ASME Y14.5M - 1994.
DRAWING SCALE: 1:1
DRAWING NO.
REV
SA83900
www.souriau.com
4 OF 6
U
ANGLES #1 $
DWG. NO.
SA83900
TYP
.091
[
2.31
]
TYP .064
[
1.63
]
THIS DRAWING IS A CONTROLLED DOCUMENT FOR SOURIAU USA, INC.
IT IS SUBJECT TO CHANGE WITHOUT NOTIFICATION.
CONTACT THE DOCUMENT CONTROL CENTER FOR THE LATEST REVISION.
.105 #
.020
[
2.67 # ]
0.5
GROUND BUS BODY
MODULE CONTACTS
TYP .283 #
.003
[
7.19 #
0.07]
4X
.06
[
1.57
]
.326 #
.010
[
8.28 #
0.25
]
.650 #
.020
[
16.51 # ]
0.5
1.22
[
30.98]
TYPICAL GROUNDING RIVET
WITH PROTECTIVE COATING
.708 #
.010
[
17.99 #
0.25
]
PRO-E
1.821 #
.010
[
46.25 #
0.25
]
1.214 #
.010
[
30.84 #
0.25
]
.607 #
.010
[
15.42 #
0.25
]
2.33
[
59.16
]
SEE VIEW A FOR
TYPICAL LETTERING
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND MAY NOT BE
DISCLOSED WITHOUT WRITTEN CONSENT FROM SOURIAU USA, INC.
.255 #
.020
[
6.477 #
0.508]
.250 #
.020
[
6.35 #
0.508]
TYP .257 #
.010
[
6.53 #
0.25
]

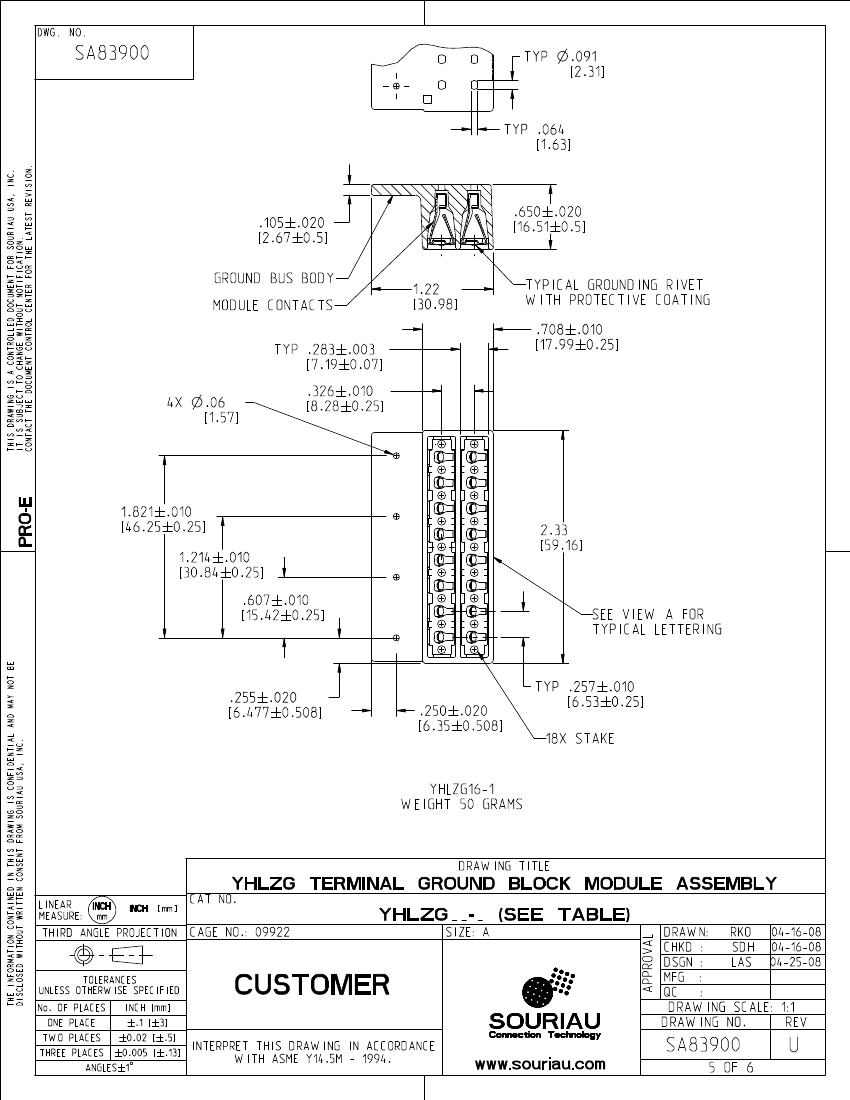

18X STAKE
YHLZG16-1
WEIGHT 50 GRAMS
DRAWING TITLE
YHLZG TERMINAL GROUND BLOCK MODULE ASSEMBLY
LINEAR
MEASURE:
CAT NO.
YHLZG__-_ (SEE TABLE)
APPROVAL
CAGE NO.: 09922
SIZE: A
DRAWN:
CHKD :
DSGN :
MFG :
QC
:
RKO
SDH
LAS
04-16-08
04-16-08
04-25-08
THIRD ANGLE PROJECTION
TOLERANCES
UNLESS OTHERWISE SPECIFIED
No. OF PLACES
ONE PLACE
TWO PLACES
THREE PLACES
INCH [mm]
#.1 [ #3]
# 0.02 [ #.5]
# 0.005 [ #.13]
CUSTOMER
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ASME Y14.5M - 1994.
DRAWING SCALE: 1:1
DRAWING NO.
REV
SA83900
www.souriau.com
5 OF 6
U
ANGLES #1 $
