8525-10R16B8PNH001 datasheet, PDF

Datasheet> All Categories > The connector> 8525-10R16B8PNH001

8525-10R16B8PNH001: DescriptionCircular MIL Spec Connector 8P Sz 16 Flange Mnt Recpt Pin; CategoryThe connector; File Size329KB，11 Pages; ManufacturerSOURIAU

Download Datasheet Parametric Compare View All

8525-10R16B8PNH001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8525-10R16B8PNH001	-	-	View	Buy Now

8525-10R16B8PNH001 Overview

Circular MIL Spec Connector 8P Sz 16 Flange Mnt Recpt Pin

8525-10R16B8PNH001 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Connector
Manufacturer	SOURIAU

Preview

Download Datasheet

View All

8525 Series

Applications

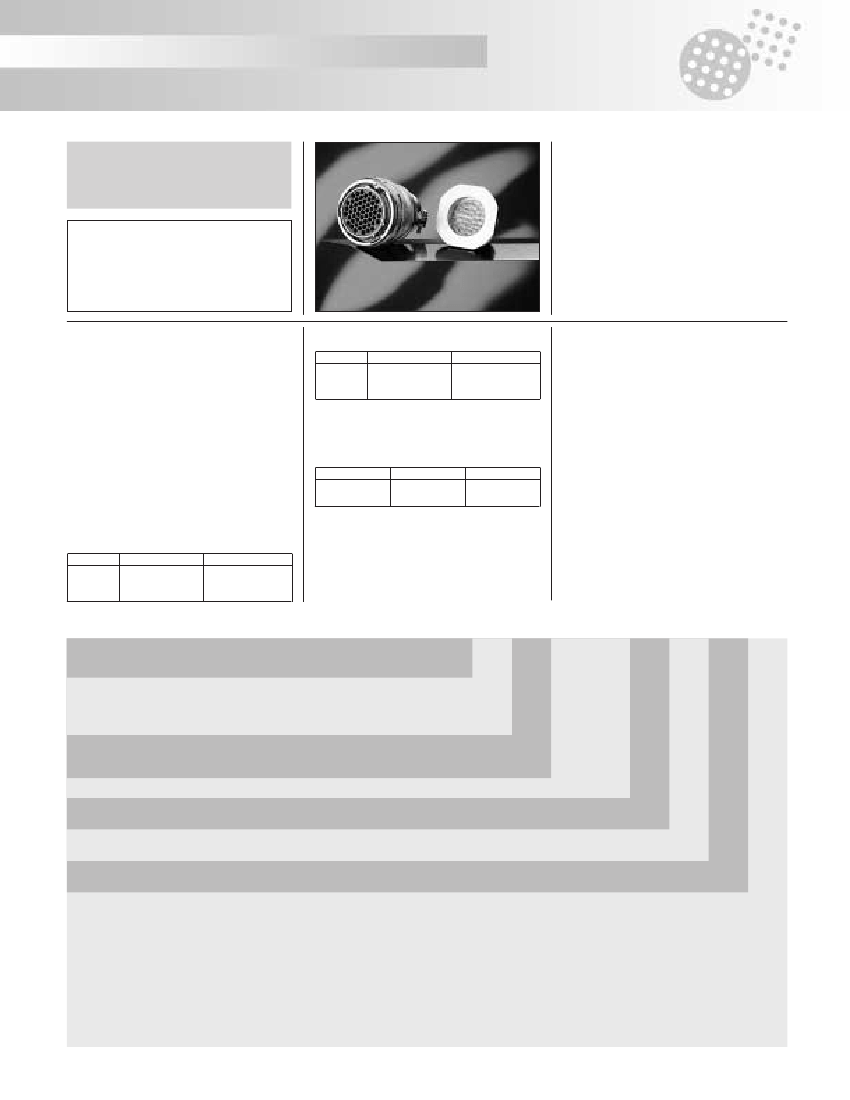

For all general purposes in civil aero-

nautical applications

Description

• Light weight version of MIL-C 26482 Series II

• Intermateable and interchangeable with

MIL-C 26482 Series I and II

• Environmental stainless steel version on

request

• RFI shielding plug

• Gold plating crimp contacts # 20, # 16, # 12

• Minicoax contacts # 16

• Hermetic version available

Standards

NFC 93422 - HE 302

NFL 54130 - NAS 1599

GAM T1 list

LN 29504

Characteristics

Mechanical

• Endurance :

- plug type 16 : 500 operations

- plug type 36 : 250 operations

• Shock : as per NFC 93422 - HE 302

• Vibrations :

from 10 to 2000 Hz - acceleration : 20 G

• Contact retention in insert :

- size 20 : 90 N size 16 : 115 N

- size 12 : 136 N

• Contact resistance :

size 20

size 16

size 12

environmental class

≤

mΩ

≤

0.55 mΩ

≤

0.35 mΩ

hermetic class

≤

7 mΩ

≤

3.8 mΩ

≤

2.4 mΩ

Climatic

• Operating temperatures :

-55°C to +200°C (class R and N)

-55°C to +175°C (class G)

• Damp heat :

56 days

• Salt spray :

48 hours

• Leakage :

environmental version

- low pressure immersion : 33 mbar

hermetic version

- differential pressure of 1 bar air/helium,

leakage is

≤

2,8 mm

/ hr

• Insulation resistance :

≥

5000 MΩ at 500 Vdc

• Dielectric withstanding voltage 2 classes :

services I and II

Service

at ground

at 21000 m

1500 Vrms

375 Vrms

2300 Vrms

550 Vrms

Electrical

• Max current rating per contact :

size 20

size 16

size 12

environmental class

7,5 A

13 A

23 A

hermetic class

10 A

17 A

• Shell continuity with plug type 36 :

- environmental receptacle

≤

5 mΩ

- hermetic receptacle

≤

50 mΩ

• Resistance to fluids :

- fuel : Air 3405

- hydraulic fluid : Oronite M2V

- lubricant : Air 3517

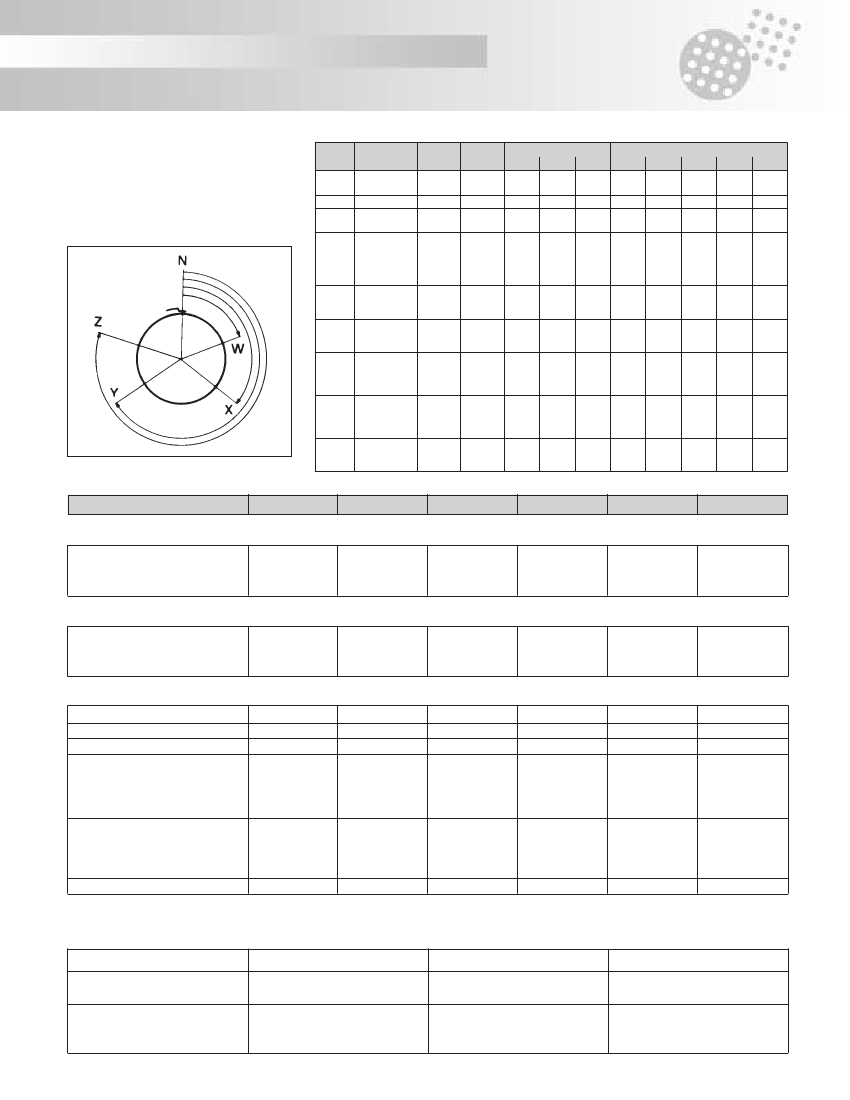

Ordering information

sealed connectors aluminum version

basic series

shell type

square flange receptacle

jam nut receptacle

plug

RFI shielded plug

8525 - 10

18 B 32

•••

plating

- black anodized (non conductive plating)

- nickel (conductive plating)

- yellow cadmium (conductive plating)

- see table p 45

- male contact

- female contact

- normal

W, X, Y, Z

- see table p 46

- 3 rear teeth at 120 degrees

- rear teeth over 360 degrees

- connector supplied without backshell, without specification

- connector supplied without contact

008

- connector supplied with special contacts # 20 for 0.38 to 0.93 mm

cable or # 16 for 0.93 to 1.91 mm

cable

068

- mixed contact layouts (# 20 and # 16)

connector supplied with special contacts # 20 for 0.38 to 0.93 mm

cable, and standard contacts # 16

009

- receptacle 10 or 17 with straight spills contacts size 20 - Ø 0.60 mm - size 16 - Ø 1.00 mm - length max 7.30 mm

connector supplied with backshells

001

- backnut

007

- backshell for heatshrink sleeving

002

- straight cable clamp

057

- backnut for heatshrink sleeving

003

- elbow cable clamp

012

- straight cable clamp*

011

- backnut*

017

- backshell for heatshrink sleeving*

013

- elbow cable clamp*

018

- backshell for solder shield termination*

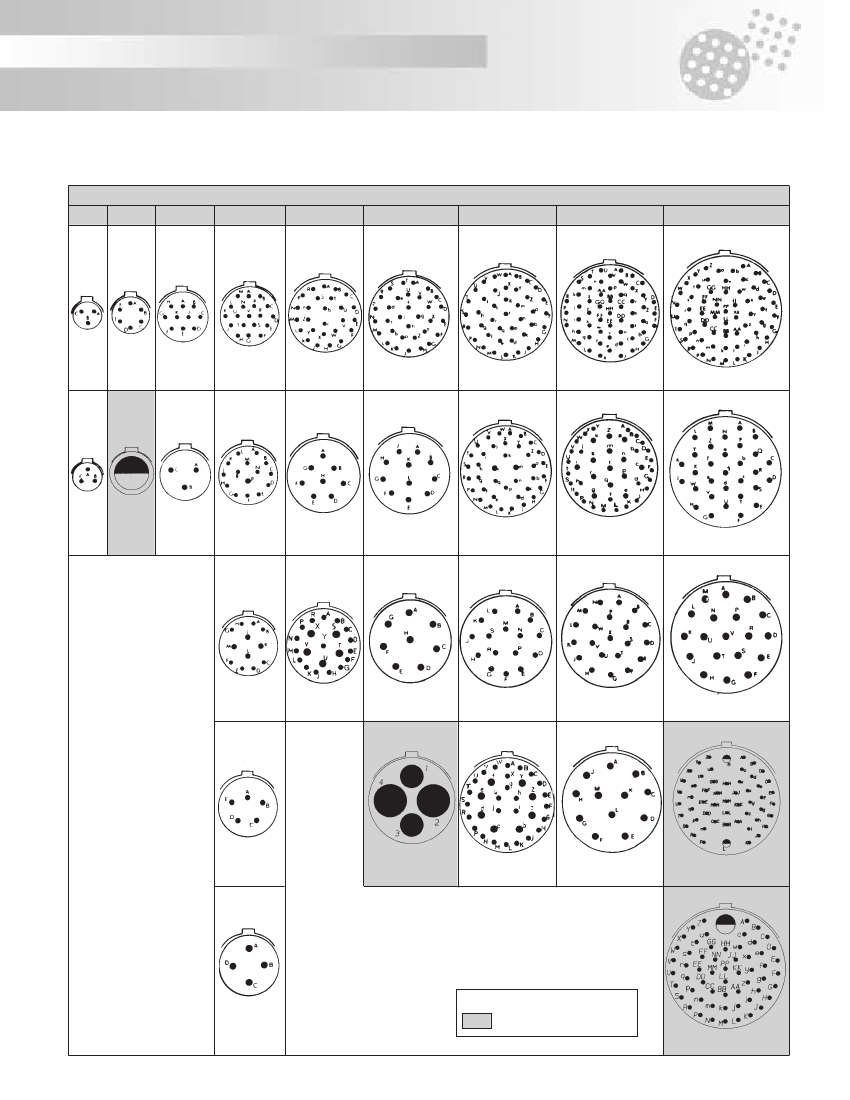

contact layout

contact type

orientation

obligatory suffix

specification

*Connector supplied with special contacts (large barrel)
