1924667-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1924667-1

Preview

1924667-1: Description13p Hybrid - 1pc Unsealed Plug, Key A; CategoryThe connector; File Size432KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1924667-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1924667-1	-	-	View	Buy Now

1924667-1 Overview

13p Hybrid - 1pc Unsealed Plug, Key A

1924667-1 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	Wire to board, wire to wire, wire to device
Sealable	no
Hybrid connector	yes
Main locking features	Housing integration
strain relief	no
Line spacing	2.54 mm [ .1 in ]
Number of Positions	13
Rows	2
color	black
Cable exit angle	180°
Main material	PBT GF
Butt male end width (mm)	.64, 2.8
Butt nipple width (in)	.025, .11
Installation features	Without
Terminal position guarantee	yes
polarization	yes
Centerline (Pitch)	2.54 mm [ .1 in ]
width	24.7 mm [ .972 in ]
high	19.8 mm [ 0.78 in ]
length	33.9 mm [ 1.335 in ]
Working group temperature range	-40 – 100 °C [ -40 – 212 °F ]
Circuit Application	Signal
Encapsulation method	Package
Package quantity	250
Able to ensure connector position	no
Repairable	yes

Preview

Download Datasheet

View All

8

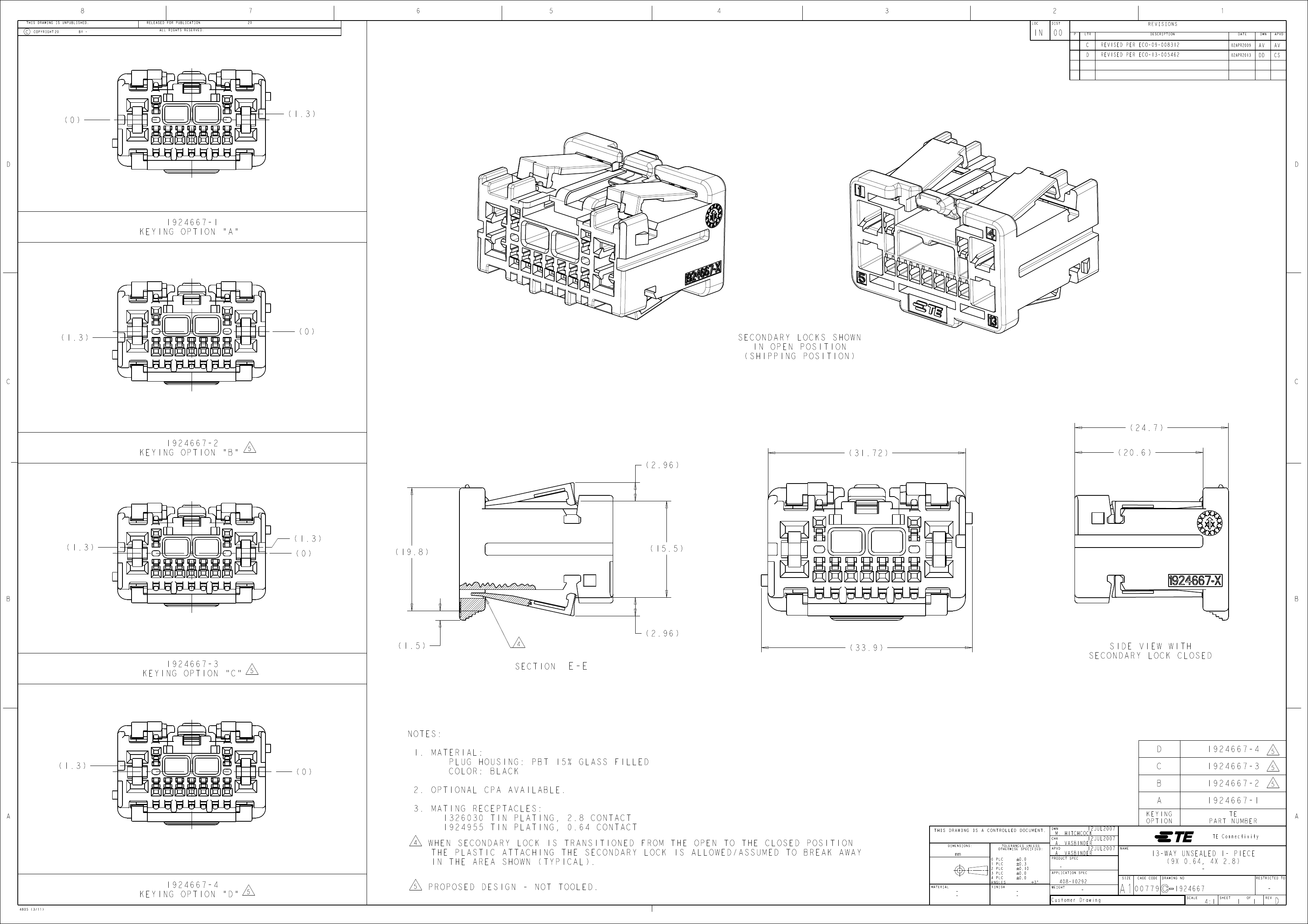

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

IN

00

C

D

REVISED PER ECO-09-008312

REVISED PER ECO-13-005462

02APR2009

02APR2013

AV

DD

AV

CS

(0)

( 1.3 )

D

1924667-1

KEYING OPTION "A"

( 1.3 )

(0)

SECONDARY LOCKS SHOWN

IN OPEN POSITION

(SHIPPING POSITION)

C

( 24.7 )

1924667-2

KEYING OPTION "B"

5

( 2.96 )

( 31.72 )

( 20.6 )

( 1.3 )

(0)

( 19.8 )

( 15.5 )

B

( 1.5 )

1924667-3

KEYING OPTION "C"

5

4

( 2.96 )

( 33.9 )

SECTION

E-E

SIDE VIEW WITH

SECONDARY LOCK CLOSED

NOTES:

( 1.3 )

1. MATERIAL:

PLUG HOUSING: PBT 15% GLASS FILLED

COLOR: BLACK

2. OPTIONAL CPA AVAILABLE.

A

D

C

B

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

1924667-4

1924667-3

1924667-2

1924667-1

TE

PART NUMBER

TE Connectivity

5

(0)

3. MATING RECEPTACLES:

1326030 TIN PLATING, 2.8 CONTACT

1924955 TIN PLATING, 0.64 CONTACT

4

WHEN SECONDARY LOCK IS TRANSITIONED FROM THE OPEN TO THE CLOSED POSITION

THE PLASTIC ATTACHING THE SECONDARY LOCK IS ALLOWED/ASSUMED TO BREAK AWAY

IN THE AREA SHOWN (TYPICAL).

PROPOSED DESIGN - NOT TOOLED.

MATERIAL

M. HITCHCOCK

A. VASBINDER

-

12JUL2007

NAME

KEYING

OPTION

A

mm

APVD

1924667-4

KEYING OPTION "D"

4805 (3/11)

5

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.0

0.3

0.10

0.0

PRODUCT SPEC

APPLICATION SPEC

3°

-

WEIGHT

408-10292

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

13-WAY UNSEALED 1- PIECE

(9X 0.64, 4X 2.8)

-

DRAWING NO

RESTRICTED TO

1924667

SCALE

4:1

SHEET

1

OF

1

REV

-

D
