1-1318384-9

Description
025 40POS CAP ASSY H TIN
CategoryThe connector
File Size590KB，3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1-1318384-9 Online Shopping

Suppliers Part Number Price MOQ In stock
1-1318384-9 - - View Buy Now

1-1318384-9 Overview

025 40POS CAP ASSY H TIN

1-1318384-9 Parametric

Parameter NameAttribute value
Sealableno
Connectors and terminals terminate toA printed circuit board
shieldno
mixing headno
Number of signal positions40
Rows2
Section number1
Nominal Voltage Structure (V)12
Operating voltage (VDC)12
Rated voltage (max) (VDC)12
colorKhaki
Width of male end.64 mm [ .025 in ]
Thickness of male end.64 mm [ .025 in ]
Contact surface platingTin (Sn)
Termination methodThrough Hole - Solder
PCB installation and fixationWithout
Panel mount featuresWithout
Mounting holeswith
PCB mounting alignmentWithout
Installation directionHorizontal/90°
lock interfacewith
Centerline (Pitch)2.2 mm [ .087 in ]
width49.4 mm [ 1.945 in ]
PCB profile height15.5 mm [ .61 in ]
PCB thickness (recommended)1.2 – 1.6 mm [ .047 – .063 in ]
length24.47 mm [ .963 in ]
Working group temperature range-30 – 150 °C [ -22 – 302 °F ]
Operating temperature (max) (°C)100, 105, 110, 120, 125, 130, 140, 145, 150, 65, 70, 75, 80, 85, 90
Operating Temperature (Max) (°F)149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302
Circuit ApplicationSignal
UL flammability ratingUL 94-HB
Package typeTube

Preview

Download Datasheet
8

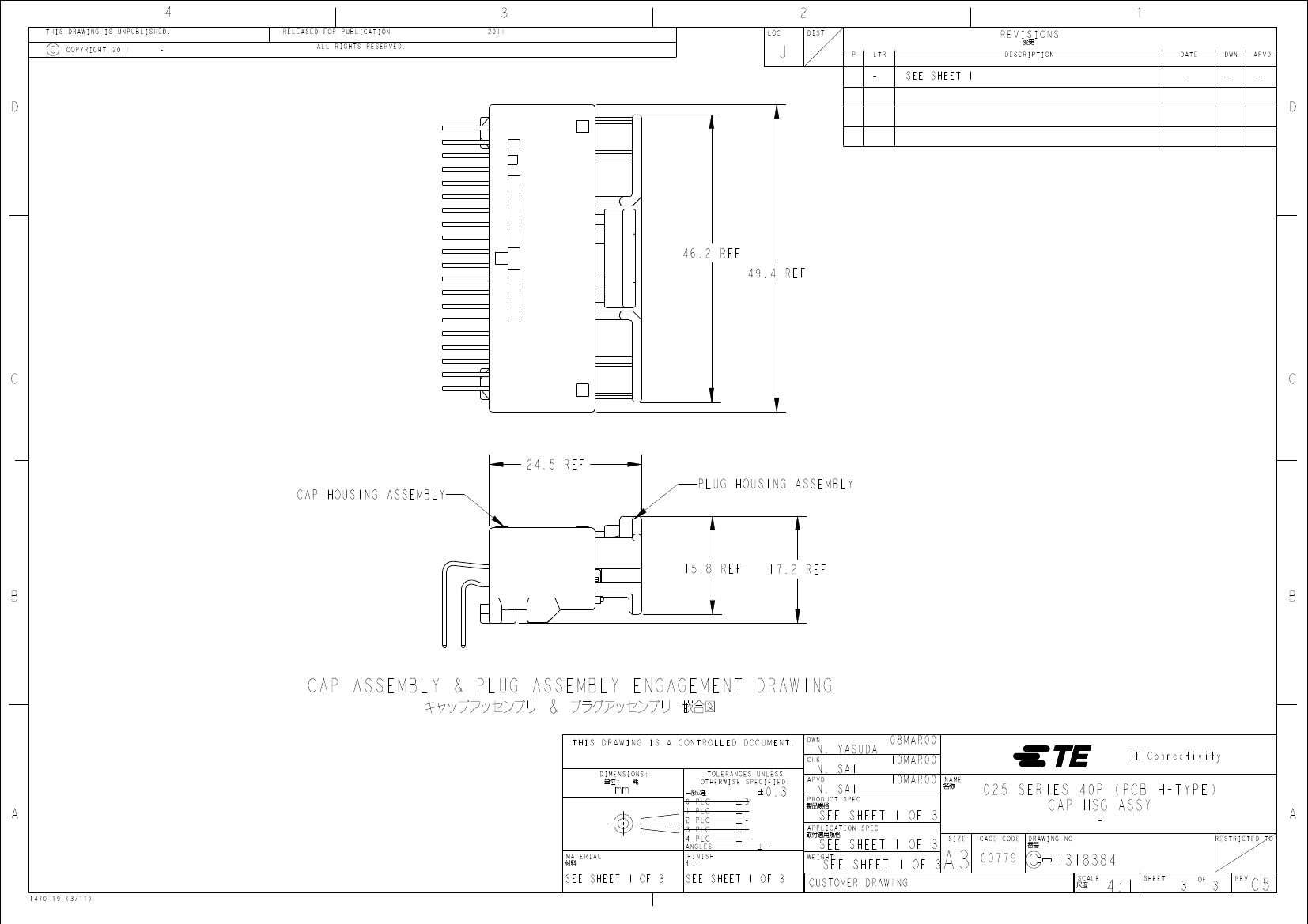

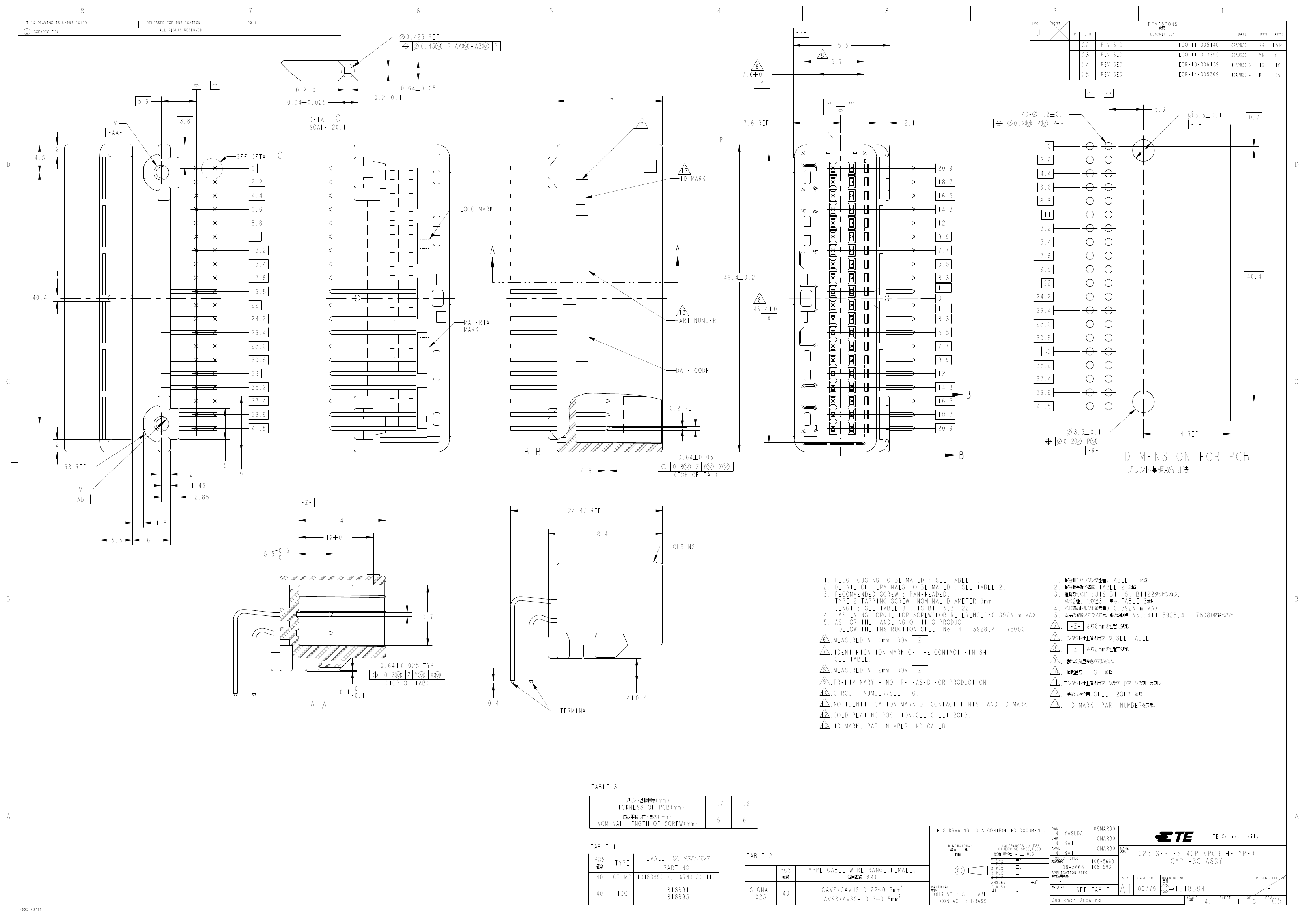

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
7
2011
6
0.425 REF
5
4
-R-
3
LOC
2
1
REVISIONS
変更
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT 2011
-
J
DIST
8
6
7.6 0.1
0.2
0.64
3.8
0.1
0.025
DETAIL
C
SCALE 20:1
0.2
0.1
0.64
0.05
17
7
-P-
SEE DETAIL
0
2.2
4.4
6.6
8.8
11
13.2
1
40.4
15.4
17.6
19.8
22
24.2
26.4
28.6
30.8
DATE CODE
MATERIAL
MARK
13
PART NUMBER
49.4
0.2
6
46.4
LOGO MARK
7.6 REF
-Y-
0
3
15.5
9.7
C2
C3
C4
C5
3
REVISED
REVISED
REVISED
REVISED
ECO-11-005140
ECO-11-013395
ECR-13-006139
ECR-14-005369
02APR2011
29AUG2011
11APR2013
10APR2014
RK
YN
TS
KT
HMR
YF
HY
RK
1.2
1.8
5.6
V
0
-AA-
4.5
2
2.1
40-
1.2
0.1
5.6
0
-P-
0
20.9
18.7
16.5
14.3
12.1
9.9
7.7
5.5
3.3
1.1
0
2.2
4.4
6.6
8.8
11
13.2
15.4
17.6
19.8
22
24.2
26.4
28.6
30.8
33
35.2
37.4
39.6
41.8
3.5
0.1
0.7
D
C
13
ID MARK
D
40.4
-X-
0.1
1.1
3.3
5.5
7.7
9.9
12.1
14.3
C
33
35.2
37.4
39.6
41.8
2
R3 REF
V
5
C
0.2 REF
16.5
18.7
20.9
3.5
0.1
-R-
14 REF
B-B
2
1.45
2.85
-Z-
14
12 0.1
+0.5
5.5
0
24.47 REF
18.4
9
0.8
0.64
0.05
DIMENSION FOR PCB
プリント基板取付寸法
(TOP OF TAB)
-AB-
1.8
5.3
6.1
HOUSING
B
9.7
1. PLUG HOUSING TO BE MATED ; SEE TABLE-1.
2. DETAIL OF TERMINALS TO BE MATED ; SEE TABLE-2.
3. RECOMMENDED SCREW : PAN-HEADED,
TYPE 2 TAPPING SCREW, NOMINAL DIAMETER 3mm
LENGTH; SEE TABLE-3 (JIS B1115,B1122).
4. FASTENING TORQUE FOR SCREW(FOR REFERENCE):0.392N・m MAX.
5. AS FOR THE HANDLING OF THIS PRODUCT,
FOLLOW THE INSTRUCTION SHEET No.;411-5928,411-78080
6 .MEASURED AT 6mm FROM
-Z-
7 .IDENTIFICATION MARK OF THE CONTACT FINISH;
SEE TABLE.
8 .MEASURED AT 2mm FROM
10 .CIRCUIT NUMBER：SEE FIG.1
11 .NO IDENTIFICATION MARK OF CONTACT FINISH AND ID MARK
12 .GOLD PLATING POSITION：SEE SHEET 2OF3.
13 .ID MARK, PART NUMBER INDICATED.
-Z-
9 .PRELIMINARY - NOT RELEASED FOR PRODUCTION.
0.4
4 0.4
TERMINAL
1. 嵌合相手ハウジング型番；TABLE-1 参照
2. 嵌合相手端子構成；TABLE-2 参照
3. 推奨取付ねじ :JIS B1115, B1122タッピンねじ,
なべ2種, 呼び径3, 長さ：TABLE-3参照
4. ねじ締めトルク(参考値)；0.392N・m MAX
5. 本品の取扱いについては、取扱説明書 No.;411-5928,411-78080に従うこと
6 .
8 .
-Z-
-Z-
より6mmの½½で測定。
より2mmの½½で測定。
7 .コンタクト仕上識別用マーク;SEE TABLE
9 . 試½の為量産されていない。
10 . 回路番号：FIG.1参照
11 .コンタクト仕上識別用マーク及びIDマークの刻印は無し
12 . 金めっき½½：SHEET 2OF3 参照
13 . ID MARK, PART NUMBERを表示。
B
0.64
0
-0.1
0.025 TYP
A-A
0.1
(TOP OF TAB)

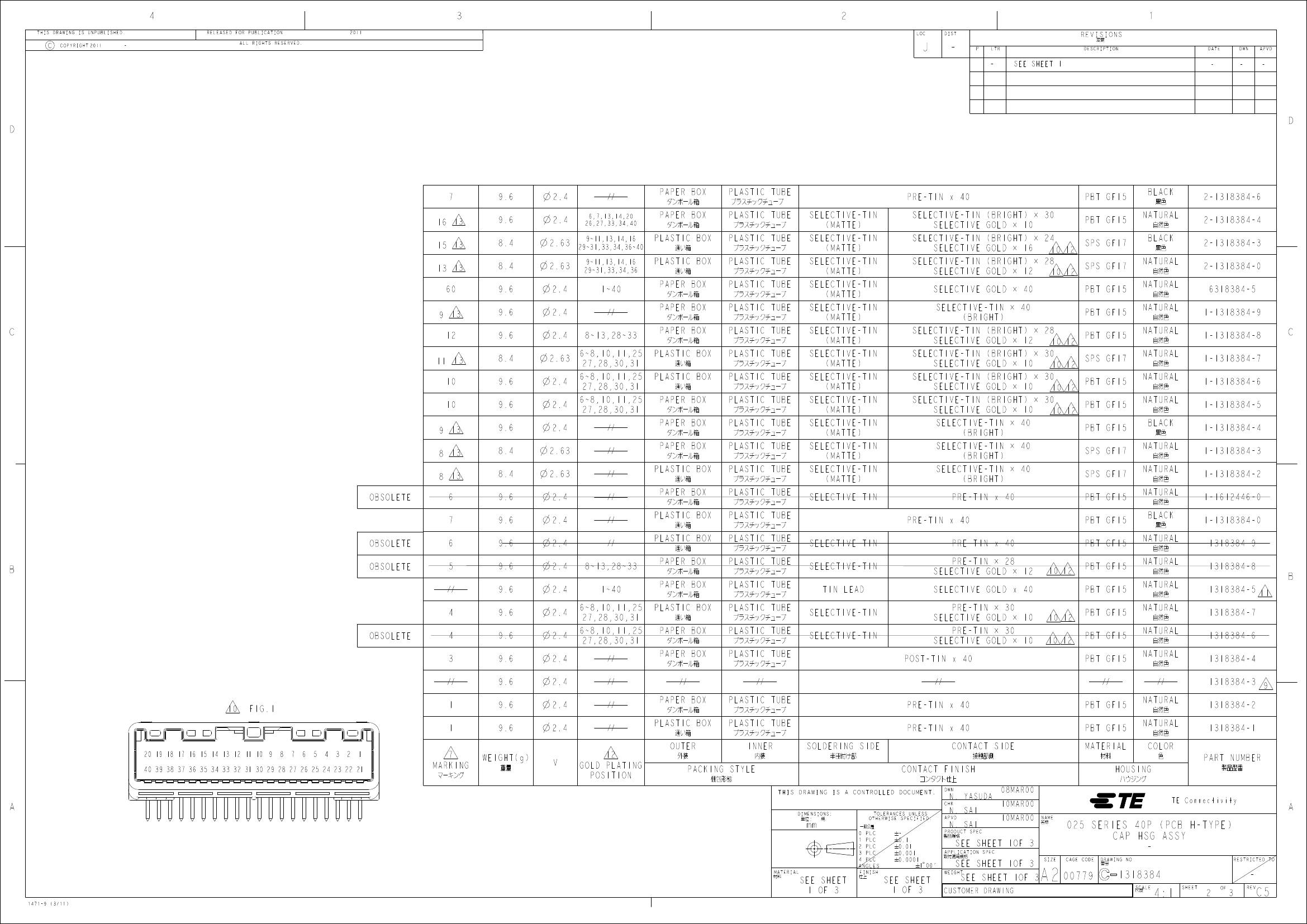

TABLE-3
プリント基板板厚(mm)
THICKNESS OF PCB(mm)
1.2
5
1.6
6
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
A
固定用ねじ首下長さ(mm)
NOMINAL LENGTH OF SCREW(mm)
TABLE-1
POS
極数
40
40
4805 (3/11)
A
N. YASUDA
N. SAI
N. SAI
08MAR00
10MAR00
10MAR00
108-5660
108-5931
SIZE
TE Connectivity
名称
NAME
DIMENSIONS:
TYPE
CRIMP
IDC
FEMALE HSG メスハウジング
1318389(I), 1674312(III)
1318691
1318695
PART NO
TABLE-2
POS
極数
SIGNAL
025
40
APPLICABLE WIRE RANGE(FEMALE)
適用電線(メス)
CAVS/CAVUS 0.22∼0.5mm
AVSS/AVSSH 0.3∼0.5mm
2
2
単½: 粍
mm
HOUSING : SEE TABLE
CONTACT : BRASS
材料
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
一般公差 = 0.3
#
一般公差
-
-
-
-
-
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
½品規格
PRODUCT SPEC
仕上
FINISH
3
$
取付適用規格
WEIGHT
APPLICATION SPEC
108-5668
-
025 SERIES 40P (PCB H-TYPE)
CAP HSG ASSY
-
CAGE CODE
DRAWING NO
-
SEE TABLE
Customer Drawing
A1
00779
番号
RESTRICTED TO
1318384
SCALE
-
SHEET
尺度
4:1
1
OF
3
REV
C5
