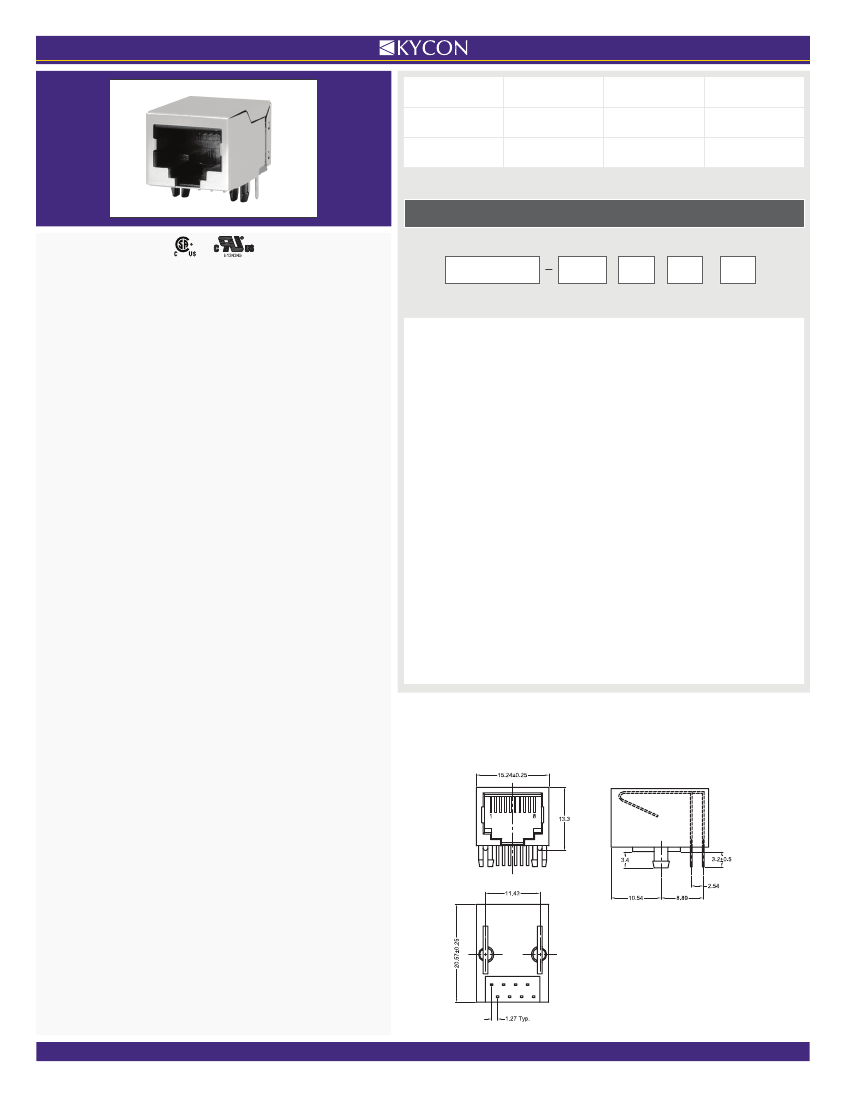

MODULAR JACKS AND PLUGS: GSX Series
Right Angle Modular Jack
Product Features
0.515" Height
Snap in Board Retention Tabs
Available with Ground Tabs
Available Fully Shielded for Category 5 Applications
CSA/NRTL Certified File No. LR78160
UL File No. E134345
GSX
Series
N
Shield
Option
88
No. of
Positions &
Contacts
Ground
Pin
Spacing
Plating
Option
Series
GSX
- Right Angle Jack, PCB Mount
Shield Options
N
- Non-Shielded
(only with
No Ground Pin Spacing
)
NS
- Fully Shielded
NS2
- Fully Shielded with Ground Tabs
NS7
- Fully Shielded with Top & Side Ground Tabs
Number of Positions / Contacts
88
- 8 Positions / 8 Contacts
Ground Pin Spacing
3.05
- 3.05mm Ground Pin Spacing
3.68
- 3.68mm Ground Pin Spacing
4.57
- 4.57mm Ground Pin Spacing
Plating Option
Blank
- Standard
50
-
50µ" Gold Plating
Performance Specifications
Materials and Finish
Housing Material
PBT Thermoplastic, Glass Filled, UL 94V-0 Rated,
Black Color
Shield Material
Copper Alloy, Nickel Plated
Contact Material
Phosphor Bronze
Electrical Characteristics
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V AC RMS for 1 Minute
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
Voltage Rating
125V DC
Operating Temperature
-40°C to +85°C
Durability Rating
750 Mating Cycles Min.
Contact Kycon for *High
Temperature and
Other Options
GSX Series
Dimensions in mm
GSX-N-88
*Mins may apply
