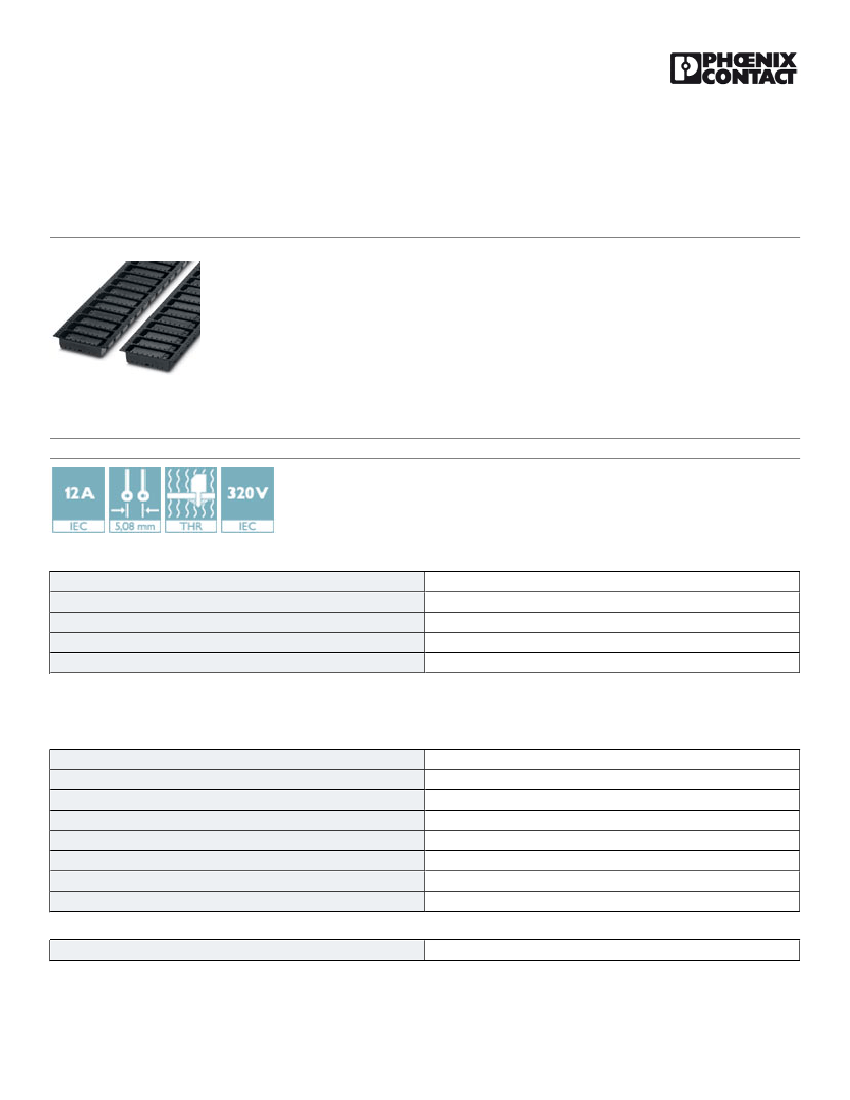

Printed-circuit board connector - CC 2,5/10-
GFR-5,08P26THRR88 - 1956551
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
black, Contact surface: Tin, Mounting: THR soldering, Two-in-one – Pin strips must always be made up of a left
(L) and a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the
THR pin strip.
The illustration shows 6-position
versions
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
240 pc
7.0 g
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
Hole diameter
12 mm
5.08 mm
45.72 mm
9 mm
8.6 mm
2.6 mm
1 x 1 mm
1.4 mm
General
Range of articles
CC 2,5/..-GF
04/22/2016 Page 1 / 8
https://www.phoenixcontact.com/us/products/1956551
Printed-circuit board connector - CC 2,5/10-
GFR-5,08P26THRR88 - 1956551
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
12 A (per position)
LCP
V0
black
10
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
272607xx
27260701
27260701
27260701
27260704
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
30211810
04/22/2016 Page 2 / 8
https://www.phoenixcontact.com/us/products/1956551
Printed-circuit board connector - CC 2,5/10-
GFR-5,08P26THRR88 - 1956551
Classifications
UNSPSC
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
39121409
39121409
39121409
39121409

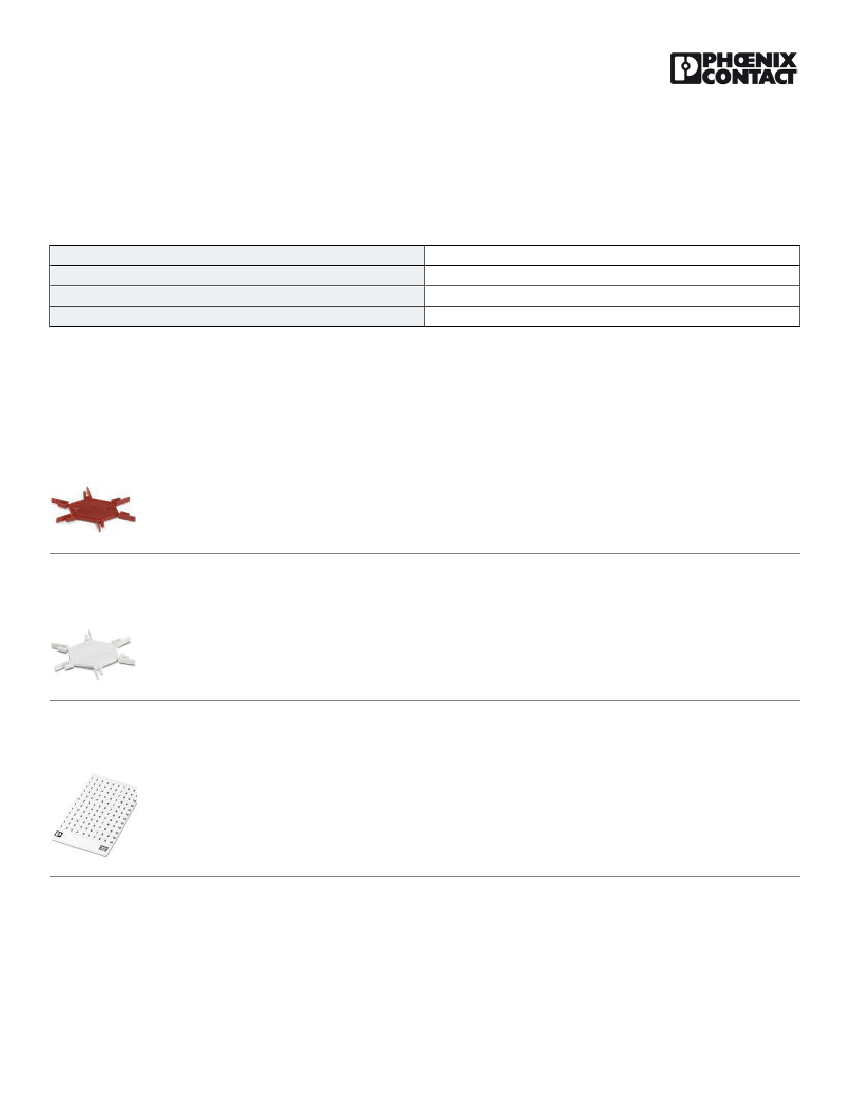

Accessories
Accessories
Coding element
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Coding section - CR-MSTB NAT HT - 1954362
HT coding section, prior to the reflow soldering process it is inserted into the recess on the header, made from high-
temperature-resistant beige insulation material
Labeled terminal marker
Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5.08 mm, Lettering field: 5.08 x 3.8 mm
Marker pen
04/22/2016 Page 3 / 8
https://www.phoenixcontact.com/us/products/1956551
Printed-circuit board connector - CC 2,5/10-
GFR-5,08P26THRR88 - 1956551

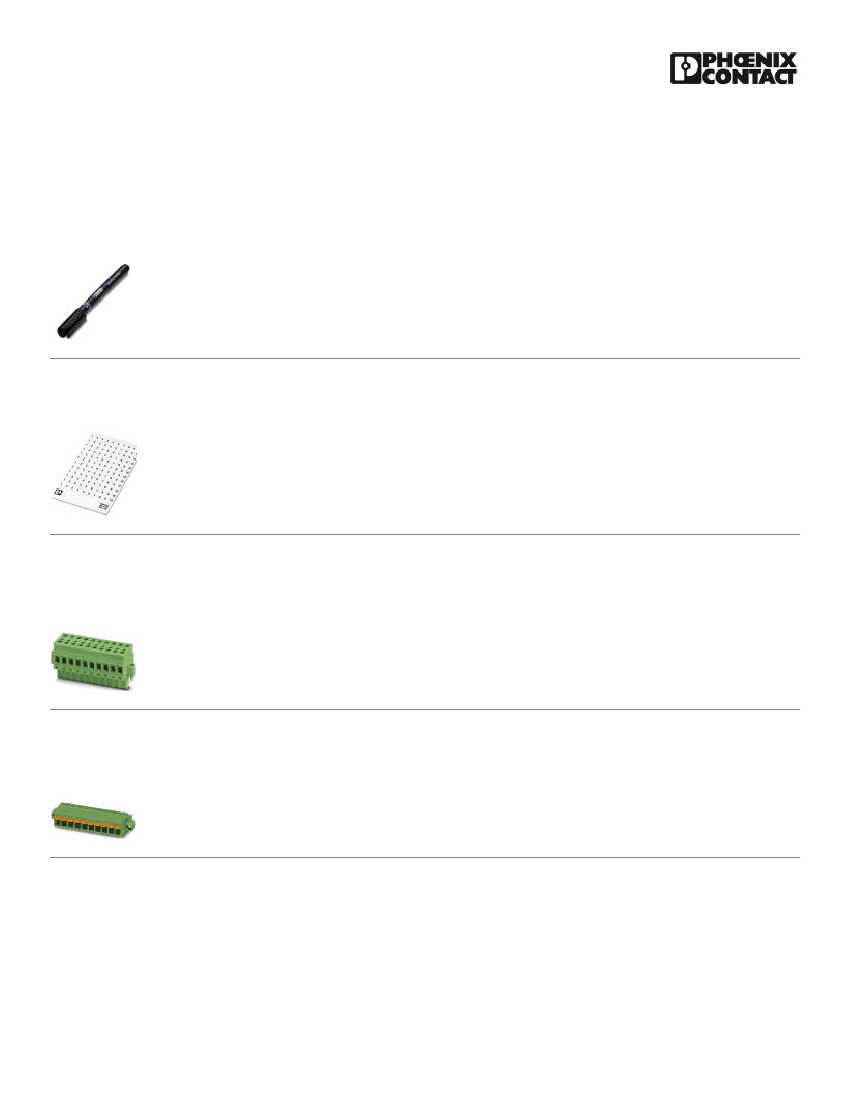

Accessories
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Terminal marking
Marker card - SK 5,08/3,8:UNBEDRUCKT - 0805412
Marker card, Card, white, unlabeled, can be labeled with: Marker pen, Mounting type: Adhesive, for terminal block width:
5.08 mm, Lettering field: 5.08 x 3.8 mm
Additional products
Printed-circuit board connector - TVMSTB 2,5/10-STF-5,08 - 1719176
Plug component, Nominal current: 12 A, Rated voltage (III/2): 400 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - FKCN 2,5/10-STF-5,08 - 1754872
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Push-in spring connection, Color: green, Contact surface: Tin
04/22/2016 Page 4 / 8
https://www.phoenixcontact.com/us/products/1956551
Printed-circuit board connector - CC 2,5/10-
GFR-5,08P26THRR88 - 1956551

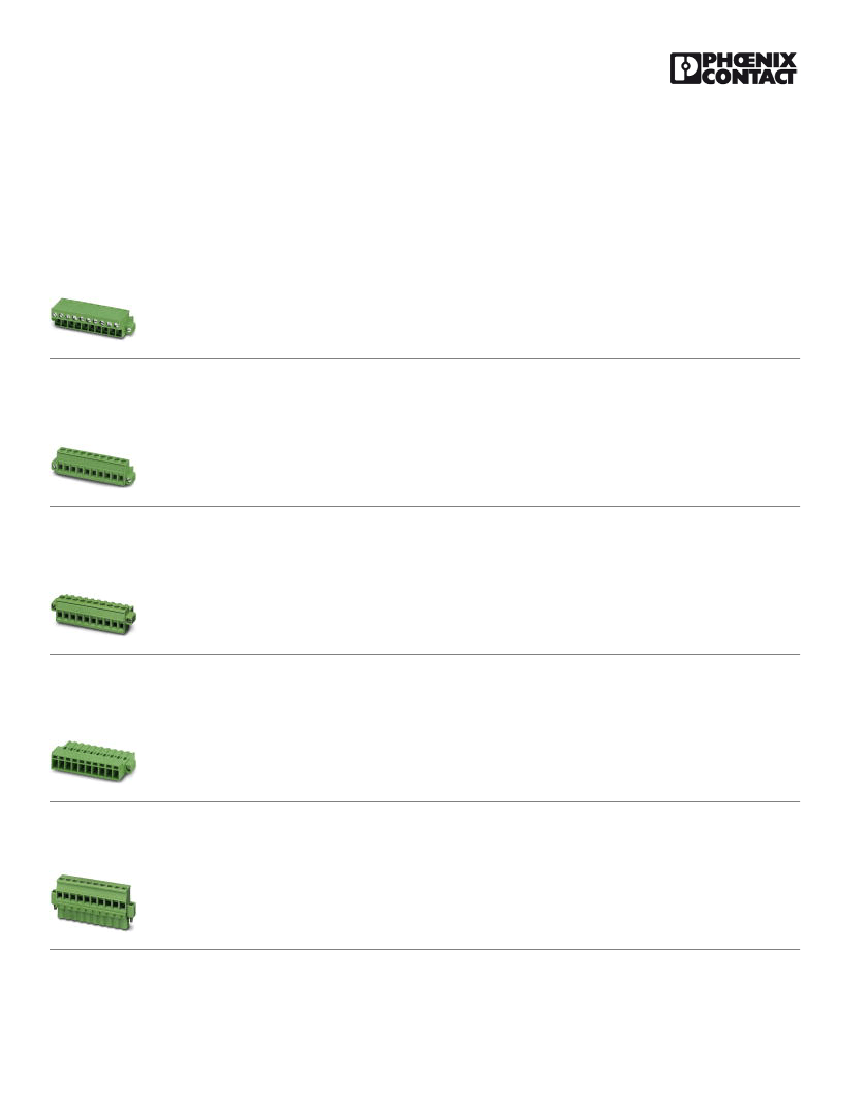

Accessories
Printed-circuit board connector - FRONT-MSTB 2,5/10-STF-5,08 - 1777879
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Front screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - MSTB 2,5/10-STF-5,08 - 1778069
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - MSTBT 2,5/10-STF-5,08 - 1805372
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - MSTBC 2,5/10-STZF-5,08 - 1809815
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and
conductor cross section range [mm²] data: 10A/MSTBC-MT 0,5-1,0 (3190564); 10A/MSTBC-MT 0,5-1,0 BA (3190645);
12A/MSTBC-MT 1,5-2,5 (3190551); 12A/MSTBC-MT 1,5-2,5 BA (3190658). BA = Bandkontakte
Printed-circuit board connector - MVSTBW 2,5/10-STF-5,08 - 1834987
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
