M80-5010822 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5010822

M80-5010822: DescriptionHeaders u0026 Wire Housings 8P DIL VERT PC TAIL; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-5010822 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5010822	-	-	View	Buy Now

M80-5010822 Overview

Headers u0026 Wire Housings 8P DIL VERT PC TAIL

M80-5010822 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.238 inch
subject depth	0.22 inch
body length	0.709 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M80-501
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.173 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

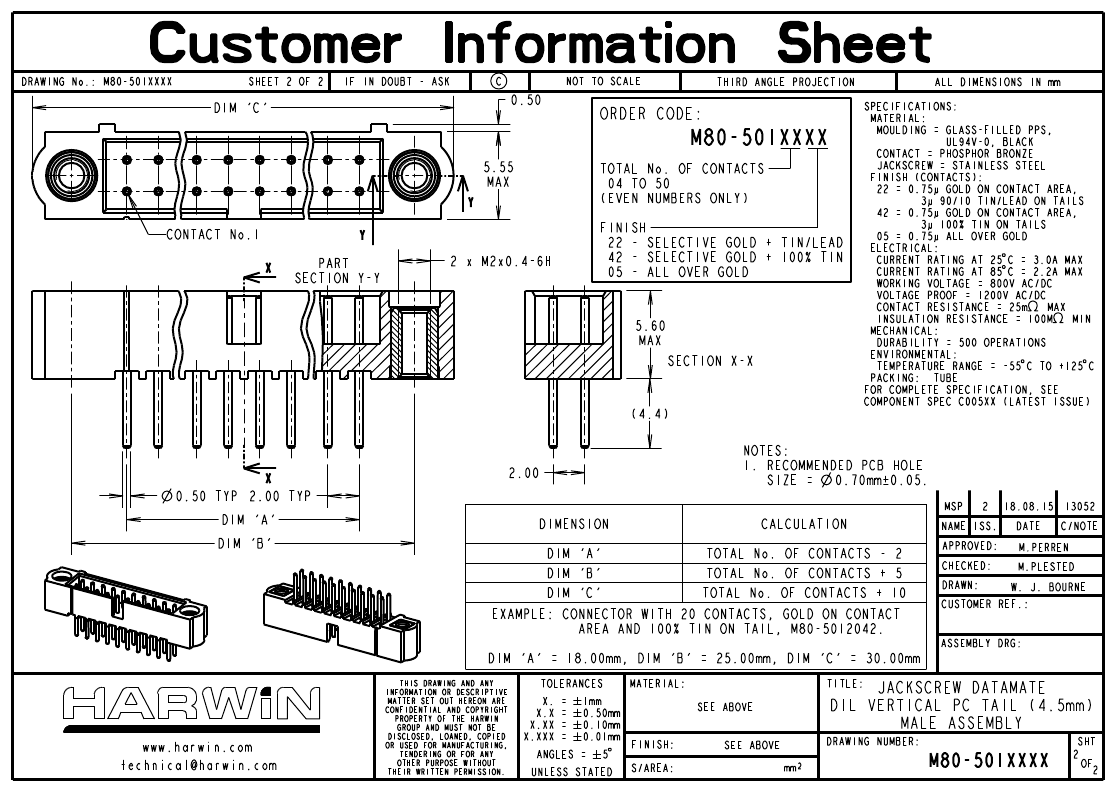

Preview

Download Datasheet

View All

M80-5010822 Related Products

	M80-5010822	M80-5015022
Description	Headers u0026 Wire Housings 8P DIL VERT PC TAIL	Headers u0026 Wire Housings 25+25 POS VERT MALE 4.5mm TL W/JS TIN/LD
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Harwin	Harwin
Reach Compliance Code	compliant	compliant
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE
body width	0.238 inch	0.238 inch
subject depth	0.22 inch	0.22 inch
body length	0.709 inch	2.362 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0	e0
MIL compliance	NO	NO
Manufacturer's serial number	M80-501	M80-501
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	M2X0.4	M2X0.4
Installation option 2	JACKSCREW	JACKSCREW
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm
Plating thickness	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.173 inch	0.173 inch
Terminal pitch	2 mm	2 mm
Termination type	SOLDER	SOLDER
Total number of contacts	8	50
UL Flammability Code	94V-0	94V-0
