DESCRIPTION:
MODEL NUMBER:
APPLICATION:
CRIMP TOOL:
IMPEDANCE:
FREQUENCY RANGE:
MATERIAL:
D-SUB MINI GENDER CHANGER DB25 F TO F
30-9534
ADAPTER
N/A
N/A
N/A
INSULATOR
CONTACT
SHELL
PBT GLASS FIBRE REINFORCED UL 94 V0
BRASS GOLD FLASH PLATED
TIN PLATED SHELL
RoHS COMPLIANCE:
TECHNICAL DETAIL:
YES
N/A
数字签名人
lin.ma@cn.
cinch.com
DN：cn=lin.ma@cn.
cinch.com
日期：2017.06.20
15:03:32 +08'00'
3RD ANGLE PROJECTION
AIM-Cambridge
Title:
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: METRIC

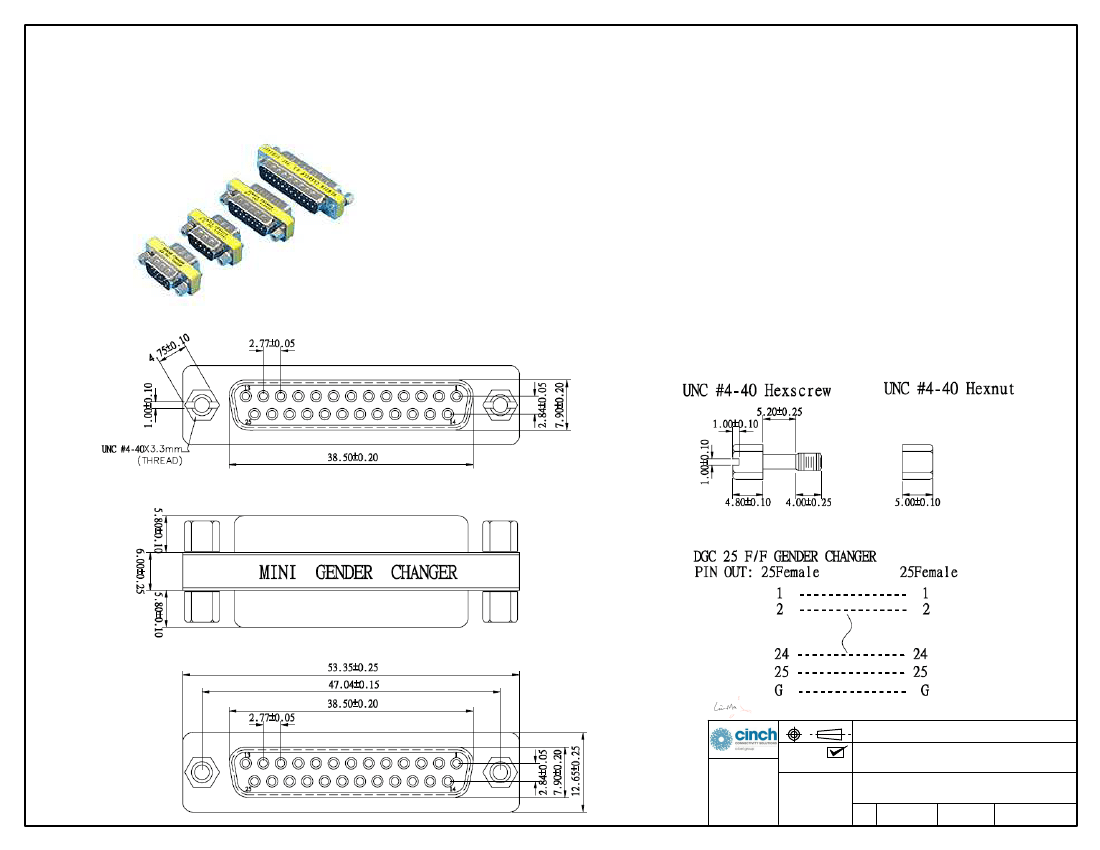

D-SUB MINI GENDER CHANGER
DB25 F TO F
Model No.
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.X
u
.51
.XX
u
.127
ANGLES
u
2
v
30-9534
Size
A
DO NOT SCALE
Date:
2017/6/20
DRAWING
Sheet 1 of 1
