C1206T475K3RCL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> C1206T475K3RCL

C1206T475K3RCL: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 4.70UF 25.0V; CategoryPassive components; File Size1MB，22 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C1206T475K3RCL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C1206T475K3RCL	-	-	View	Buy Now

C1206T475K3RCL Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 4.70UF 25.0V

C1206T475K3RCL Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	KEMET
Capacitance	4.7 uF
Voltage Rating DC	25 VDC
Dielectric	X7R
Tolerance	10 %
Case Code - in	1206
Case Code - mm	3216
Height	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Termination	-
Product	General Type MLCCs
Packaging	Reel
Capacitance - nF	4700 nF
Class	Class 2
Length	3.2 mm
Package / Case	1206 (3216 metric)
Factory Pack Quantity	2000
Termination Style	SMD/SMT
Voltage Rating AC	-
Width	1.6 mm
Unit Weight	0.000571 oz

Preview

Download Datasheet

View All

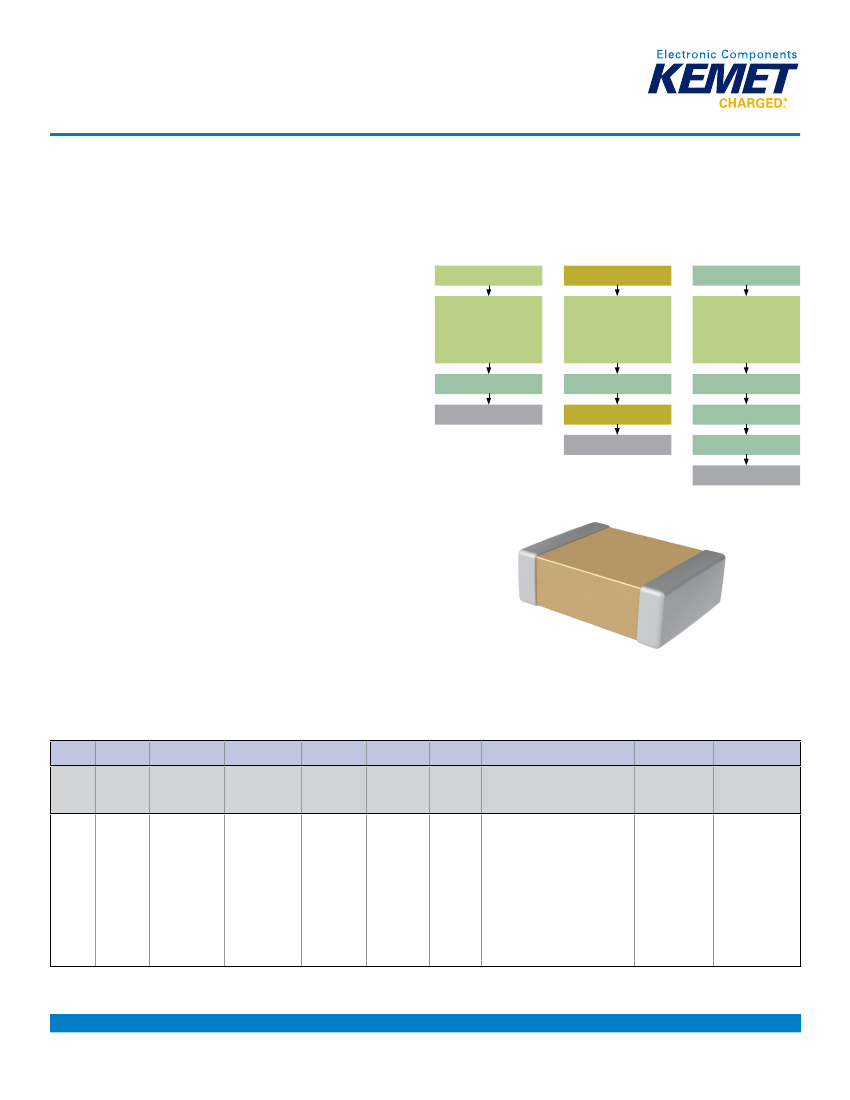

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Commercial Off-The-Shelf (COTS) for Higher Reliability

Applications, X7R Dielectric, 6.3 – 250 VDC

Overview

KEMET’s COTS program is an extension of KEMET knowledge

of high reliability test regimes and requirements. KEMET

regularly supplies “up-screened” products by working with

customer drawings and imposing specified design and test

requirements. The COTS program offers the same high quality

and high reliability components as up-screened products,

but at a lower cost to the customer. This is accomplished by

eliminating the need for customer-specific drawings to achieve

the reliability level required for customer applications. A series

of tests and inspections have been selected to provide the

accelerated conditioning and 100% screening necessary to

eliminate infant mortal failures from the population.

KEMET’s X7R dielectric features a 125°C maximum operating

temperature and is considered “temperature stable.” The

Electronics Components, Assemblies & Materials Association

(EIA) characterizes X7R dielectric as a Class II material.

Components of this classification are fixed, ceramic dielectric

capacitors suited for bypass and decoupling applications or

for frequency discriminating circuits where Q and stability of

capacitance characteristics are not critical. X7R exhibits a

predictable change in capacitance with respect to time and

voltage and boasts a minimal change in capacitance with

reference to ambient temperature. Capacitance change is

limited to ±15% from −55°C to +125°C.

All COTS testing includes voltage conditioning and post-electrical

testing as per MIL–PRF–55681. For enhanced reliability, KEMET

also provides the following test level options and conformance

certifications:

Test Level A

Voltage Conditioning

DWV

IR@25°C

CAP

PDA 8%

C of C

Test Level B

Voltage Conditioning

DWV

IR@25°C

CAP

PDA 8%

DPA

C of C

Test Level C

Voltage Conditioning

DWV

IR@25°C

CAP

PDA 8%

DPA

85/85

C of C

Ordering Information

1210

104

Rated

Voltage

(VDC)

9 = 6.3

8 = 10

4 = 16

3 = 25

5 = 50

1 = 100

2 = 200

A = 250

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Dielectric

R = X7R

Failure Rate/Design

A = Testing per MIL–PRF–

55681 PDA 8%

B= Testing per MIL–PRF–

55681 PDA 8%, DPA per

EIA–469

C = Testing per MIL–

PRF–55681 PDA 8%, DPA

per EIA–469, Humidity per

MIL–STD–202, Method 103,

Condition A

Termination

Finish

C = 100%

Matte Sn

L = SnPb (5%

Pb minimum)

Packaging/

Grade (C-Spec)

See

"Packaging

C-Spec

Ordering

Options Table"

below

Case Size

Specification/

Capacitance Capacitance

Ceramic

(L" x W")

Series

Code (pF)

Tolerance

0402

0603

0805

1206

1210

1812

2220

T = COTS

Two

significant

digits and

number of

zeros

J = ±5%

K = ±10%

M = ±20%

Additional termination finish options may be available. Contact KEMET for details.

One world. One KEMET

C1027_X7R_COTS_SMD • 6/8/2017
