CCU2541E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CCU2541E

CCU2541E: CategoryPassive components; File Size185KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com

Download Datasheet Parametric View All

CCU2541E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CCU2541E	-	-	View	Buy Now

CCU2541E Parametric

Parameter Name	Attribute value
Product Category	Potentiometers
Manufacturer	Ohmite
RoHS	Details
Termination Style	Solder Lug
Product	Potentiometer
Number of Gangs	1 Gang
Resistance	250 kOhms
Taper	Linear
Power Rating	2 W
Tolerance	10 %
Element Type	Composition
Number of Turns	1 Turn
Shaft Type	Slotted
Type	Rotary Metal
Shaft Diameter	6.35 mm
Shaft Length	50.8 mm
Packaging	Bulk
Factory Pack Quantity	2

Preview

Download Datasheet

View All

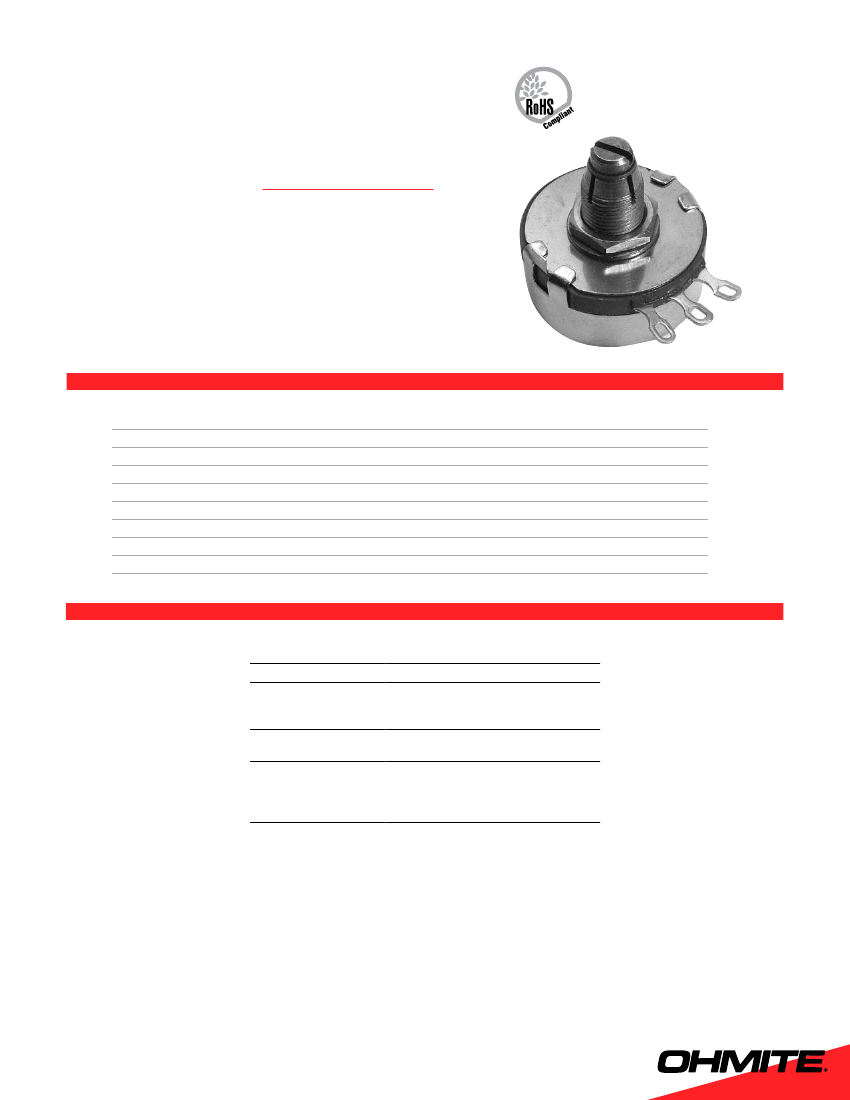

Potentiometers

Molded composition

Ohmite molded composi-

• Low noise, smooth

tion potentiometers are

available in various models operation

for applications in military • In accordance with “Mil”

devices, industrial equip-

RV4N, RV4L, RV6L,

ment and in equipment

RV6N, 2RV7N types

requiring a convenient

• RoHS compliant; non-

resistance control device.

RoHS version unavail-

able.

s e r i e s s P e c i F i c at i O N s

F e at u r e s

Model

ASM

CCU

CLU

CMU

Watts

0.5

2.0

Ohmic

range

50-5M

Behind panel

(in./mm)

0.703/17.9

0.625/15.9

1.266/32.1

0.625/15.9

Diameter

(in./mm)

0.50/12.7

1.16/29.4

Rotation

295° ±5°

312° ±3°

Voltage

(RMS)

350

500

characteristics

Derating

linear from 100% at +70°C to 0% at

+120°C

Operating temp. range

-55°C to 120°C

Construction

Elements molded into a single, integral

structure. Metal cover protects and

shields the internal parts.

Sealing

synthetic resin containing non-mercurial

fungicide

Product life

Since all rheostats/potentiometers are

electro-mechanical devices, they are

subject to mechanical wear and, there-

fore, have a finite life.

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com

191
