NJG1704KC1
800MHz BAND FRONT-END GaAs MMIC
nGENERAL
DESCRIPTION
NJG1704KC1 is a front-end GaAs MMIC including
a LNA, a local amplifier and a mixer, designed mainly for
800MHz band cellular phone.
The ultra small & ultra thin FLP10-C1 package is applied.
nPACKAGE
OUTLINE
NJG1704KC1
nFEATURES
lLow
Voltage Operation
lLow
Current Consumption
lUltra
Small & Ultra Thin package
nLNA
lHigh
Small Signal Gain
lLow
Noise Figure
lHigh
Input IP3
nMixer
lHigh
Conversion Gain
lLow
Nose Figure
lHigh
Input IP3
+2.7V typ.
LNA 3.1mA typ.
Mixer 6.1mA typ. (with local amplifier operation current)
FLP10-C1 (Mount Size: 2.8 x 3.0 x 0.75mm)
16.5dB typ. @ f
RF
=820MHz
1.4dB typ. @ f
RF
=820MHz
-4.0dBm typ. @ f
RF
=820.0+820.1MHz
12.5dB typ. @ f
RF
=820MHz, f
LO
=690MHz, P
LO
=-10dBm
5.0dB typ. @ f
RF
=820MHz, f
LO
=690MHz, P
LO
=-10dBm
+1.0dBm typ. @f
RF
=820.0+820.1MHz, f
LO
=690MHz,P
LO
=-10dBm
nPIN
CONFIGURATION
KC1 TYPE
(Top View)
Orientation Mark
Pin Connection
1.LNAIN
2.LNACAP
1
2
3
4
5
10
9
8
7
6
3.GND
4.IFOUT
5.VLO
6.LOIN
7.GND
8.MIXIN
9.GND
10.LNAOUT
NOTE: Please note that any information on this catalog will be subject to change.
-1-
NJG1704KC1
nABSOLUTE
MAXIMUM RATINGS
PARAMETER
LNA Voltage
Mixer Voltage
LOCAL Amplifier Voltage
Input Power 1
Input Power 2
Power Dissipation
Operating Temperature
Storage Temperature
SYMBOL
CONDITIONS
V
LNA
V
MIX
V
LO
P
LNAIN
V
LNA
=V
MIX
=V
LO
=2.7V
P
LOIN
V
LNA
=V
MIX
=V
LO
=2.7V
P
D
T
opr
T
stg
(T
a
=+25°C, Z
s
=Z
l
=50Ω)
RATINGS
UNITS
5.0
V
5.0
V
5.0
V
+15
dBm
+10
dBm
550
mW
-40~+85
°C
-55~+125
°C
nELECTRICAL
CHARACTERISTICS 1
(LNA)
GENERAL CONDITIONS: T
a
=+25°C, V
LNA
=2.7V, V
MIX
=V
LO
=0V, f
RF
=820MHz
P
RF
=-36dBm, Z
s
=Z
l
=50Ω, with test circuit
PARAMETER
SYMBOL
CONDITIONS
MIN TYP MAX UNITS
Operating Frequency
freq
800
820
900
MHz
LNA Voltage
V
LNA
2.5
2.7
4.5
V
LNA Operating Current
I
LNA
P
RF
, P
LO
=OFF
-
3.1
3.7
mA
Small Signal Gain
Gain
15.0 16.5 18.0
dB
Gain Flatness
G
flat
f
RF
=810~885MHz
-
0.5
1.0
dB
Noise Figure
NF
-
1.4
1.6
dB
Pout at 1dB Gain
P
-1dB
-3.0
-1.0
-
dBm
Compression point
Input 3rd Order Intercept
IIP3
f
RF
=820.0+820.1MHz
-10.0 -4.0
-
dBm
point
RF IN VSWR
VSWR
i
-
1.6
2.0
RF OUT VSWR
VSWR
o
-
1.5
2.0
nELECTRICAL
CHARACTERISTICS 2
(Mixer)
GENERAL CONDITIONS: T
a
=+25°C, V
LNA
=0V, V
MIX
=V
LO
=2.7V, f
RF
=820MHz, f
LO
=690MHz
P
RF
=-30dBm, P
LO
=-10dBm, Z
s
=Z
l
=50Ω, with test circuit
PARAMETER
SYMBOL
CONDITIONS
MIN TYP MAX UNITS
Operating Frequency
freq
800
820
900
MHz
Mixer Voltage
V
MIX
2.5
2.7
4.5
V
Local Amplifier Voltage
V
LO
2.5
2.7
4.5
V
Mixer Operating Current
I
MIX
P
RF
, P
LO
=OFF
-
5.0
6.3
mA
Local Amplifier Operating
I
LO
P
RF
, P
LO
=OFF
-
1.0
1.2
mA
Current
Conversion Gain
G
c
11.0 12.5
-
dB
Noise Figure
NF
-
5.0
7.0
dB
Input 3rd Order Intercept
IIP3
f
RF
=820.0+820.1MHz
-
+1.0
-
dBm
Point
-2-
NJG1704KC1
nTERMINAL
INFORMATION
No.
1
2
3
SYMBOL
LNAIN
LNACAP
GND
FUNCTION
RF input terminal of LNA. An external matching circuit is required.
Terminal for the bypass capacitor of LNA. The bypass capacitor C1 as
shown in test circuits, should be connected to this terminal as close as
possible.
Ground terminal(0V)
IF signal output terminal. The IF signal is output through external matching
circuit connected to this terminal. Please connect inductances L7, L8 and
power supply as shown in test circuits, since this terminal is also the
terminal of mixer power supply.
Power supply terminal for local amplifier. Please place R1 and L10 as
shown in test circuits at very close to this terminal.
Local signal input terminal to local amplifier. An external matching circuit is
required.
Ground terminal(0V)
RF signal input terminal to mixer. An external matching circuit is required.
Ground terminal(0V)
Signal output terminal of LNA. The RF signal from LNA is output through
external matching circuit connected to this terminal. Please connect
inductances L3, L4 and power supply as shown in test circuits, since this
terminal is also the terminal of LNA power supply.
4
IFOUT
5
6
7
8
9
VLO
LOIN
GND
MIXIN
GND
10
LNAOUT
CAUTION
1) Ground terminal (No.3, 7, 9) should be connected to the ground plane as low
inductance as possible.
-3-
NJG1704KC1

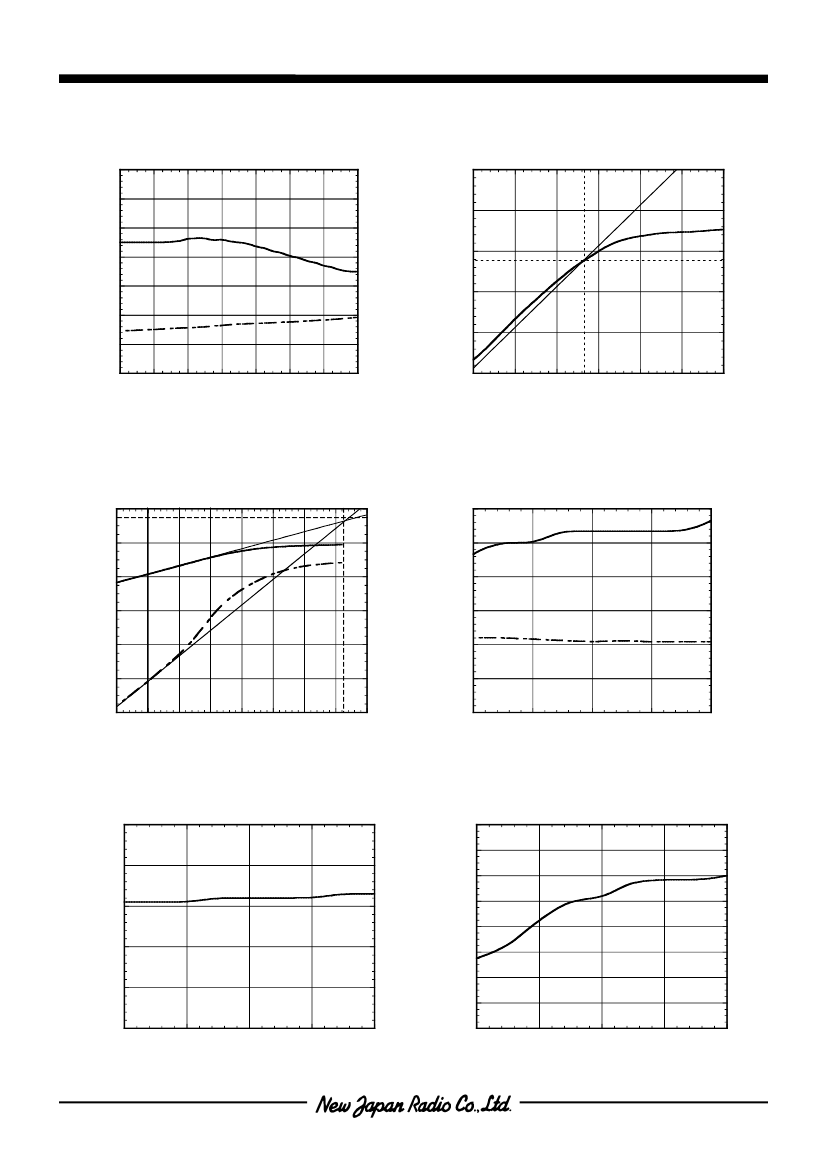

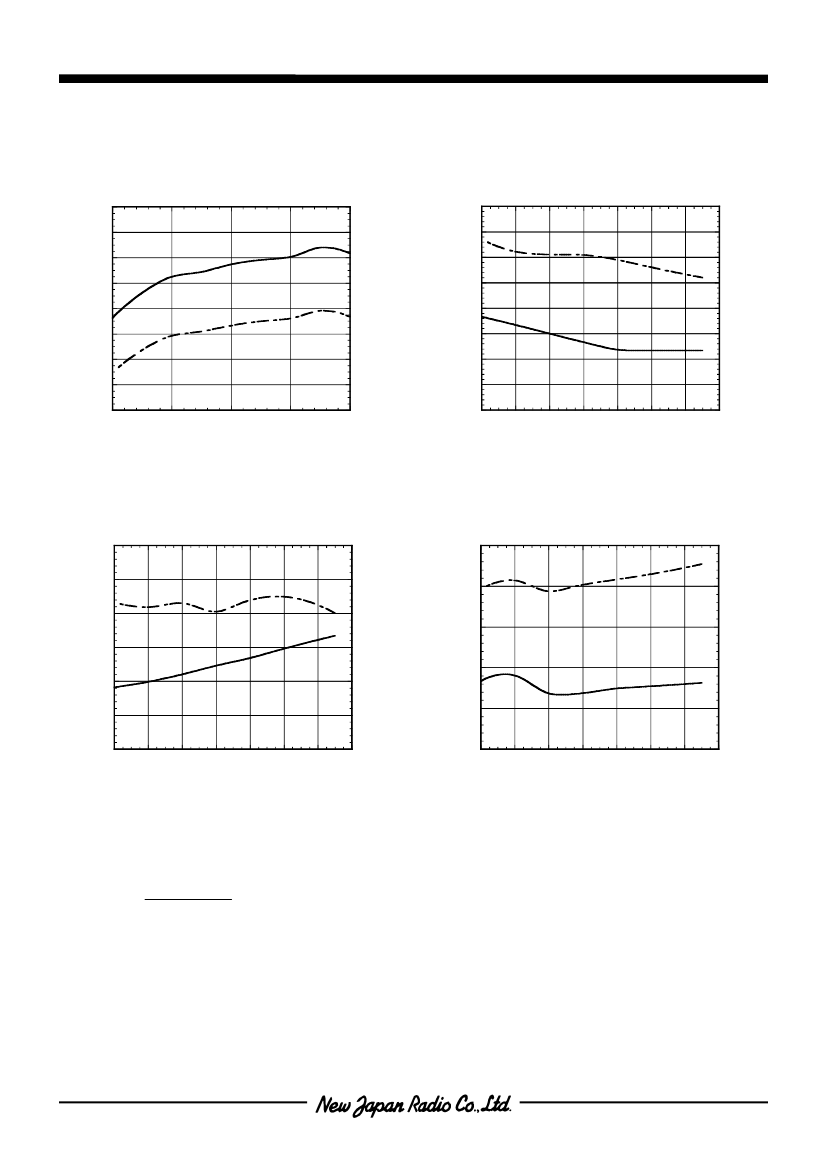

nTYPICAL
CHARACTERISTICS
(LNA,f
LO
=690MHz,with test circuit)
Gain,Noise Figure vs. Frequency
(V
19
18
17
Gain (dB)
16
15
14
13
12
780
800
820
840
860
880
Frequency (MHz)
900
NF
LNA
Pout vs. Pin
(V
4
3.5
5
Noise Figure (dB)
3
2.5
2
1.5
1
0.5
920
-15
-30
-25
-20
-15
Pin (dBm)
-10
-5
0
P-1dB
-1.1dBm
0
10
LNA
=2.7V)
=2.7V,f=820MHz)
Gain
Pout (dBm)
-5
-10
Pout,IM3 vs. Pin
(V
20
LNA
Gain,Noise Figure vs. V
(f=820MHz)
17
Gain
=2.7V,f=820.0+820.1MHz)
LNA
0
16.5
2
Noise Figure (dB)
Pout,IM3(dBm)
-20
Pout
Gain (dB)
16
-40
IM3
-60
IIP3
-3.6dBm
15.5
NF
15
1.5
-80
14.5
1
-100
-40
-35
-30
-25
-20
-15
Pin (dBm)
-10
-5
0
14
2.5
3
V
LNA
3.5
(V)
4
4.5
P-1dB vs. V
I
3.3
LNA
vs. V
LNA
LNA
8
6
(f=820MHz)
3.2
4
3.1
P-1dB (dBm)
2
0
-2
-4
2.9
-6
2.8
2.5
3
V
3.5
(V)
4
4.5
-8
2.5
3
V
3.5
(V)
4
4.5
LNA
(mA)
I
3
LNA
LNA
-4-
NJG1704KC1
nTYPICAL
CHARACTERISTICS
(LNA, f
LO
=690MHz,with test circuit)
OIP3,IIP3 vs. V
20
18
16
OIP3 (dBm)
14
LNA
8
6
4
IIP3 (dBm)
Gain (dB)
2
IIP3
0
-2
-4
-6
-8
19
18.5
18
17.5
17
16.5
16
15.5
15
-40
Gain,I
(V
LNA
vs. Temperature
3.3
I
3.2
LNA
(f=820.0+820.1MHz,Pin=-36dBm)
LNA
=2.7V,f=820MHz)
OIP3
3.1
I
LNA
(mA)
IIP3 (dBm)
3
Gain
2.9
2.8
2.7
2.6
2.5
100
12
10
8
6
4
2.5
3
3.5
V
(V)
LNA
4
4.5
-20
0
20
40
60
o
Ambient Temperature ( C)
80
Noise Figure,P-1dB vs. Temperature
(V
3
LNA
OIP3,IIP3 vs. Temperature
(V
0
16
LNA
=2.7V,f=820MHz)
=2.7V,f=820.0+820.1MHz,Pin=-36dBm)
-3
2.5
P-1dB
-1
15
IIP3
-4
Noise Figure (dB)
P-1dB (dBm)
2
-2
OIP3 (dBm)
14
-5
1.5
NF
1
-3
13
OIP3
-6
-4
12
-7
0.5
-5
0
-40
-20
0
20
40
60
o
Ambient Temperature ( C)
80
-6
100
11
-40
-20
0
20
40
60
o
Ambient Temperature ( C)
80
-8
100
The value of OIP3 and IIP3 shown in
typical characteristics are calculated
3 x Pout-IM3
OIP3=
2
IIP3=OIP3-Gain @Pin=-36dBm
-5-
