MA4EX580L-1225
Low Cost Silicon Double Balanced
HMIC™
HMIC ™ Mixer 4.7 - 6.0 GHz
Features
•
•
•
•
•
•
7.6 dB Typical Conversion Loss
+3 to +7 dBm LO Drive
HMIC™ IC Process
Silicon Low Barrier Schottky Diode
DC – 1050 MHz IF Bandwidth
Low Cost Miniature Plastic Package
SOT-25 Outline
3
2
1
Description
M/A-COM’s MA4EX580L-1225 is a silicon monolithic 4.7 to 6.0
GHz double balanced mixer in a low cost miniature surface
mount SOT-25 package. The die uses M/A-COM’s unique
HMIC
silicon/glass process to achieve low loss passive
elements while retaining the advantages of low barrier silicon
Schottky barrier diodes.
4
5
Pin Configuration
PIN
1
2
3
Function
RF
GND
LO
PIN
4
5
—
Function
GND
IF
—
Applications
These mixers are well suited for high volume wireless and
cellular applications where small size and repeatability are
required. Typical applications include frequency conversion,
modulation and demodulation in wireless receivers and
Ordering Information
Model No.
MA4EX580L-1225T
Package
Tape and Reel
Electrical Specifications @ +25°C
=
Parameter
Conversion Loss
L - R Isolation
L - I Isolation
R - I Isolation
LO VSWR
RF VSWR
IF VSWR
Input IP3
Input 1 dB Compression
IF 1 dB Bandwidth
Frequency Rage
4700 MHz
4.7 - 6.0 GHz
4700 MHz
4.7 - 6.0 GHz
4700 MHz
4.7 - 6.0 GHz
4700 MHz
4.7 - 6.0 GHz
4700 MHz
4.7 - 6.0 GHz
4700 MHz
4.7 - 6.0 GHz
DC - 1050 MHz
4700 MHz
4.7 - 6.0 GHz
4700 MHz
4.7 - 6.0 GHz
DC - 1050 MHz
Test Conditions
LO Drive = +3 +7 dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
IF Level = - 10 dBm
LO Drive = +3 +7 dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +3 +7 dBm
RF = -10 dBm, IF = 60 MHz
LO = 4650 MHz @+5dBm
Units
dB
dB
dB
dB
Typ.
7.6
8.5
23.0
20.0
22.0
20.0
9.4
7.5
2.7
2.8
2.3
3.1
1.1
Max.
8.0
9.5
dBm
dBm
MHz
7.5
8.1
+1.6
+1.5
Specifications subject to change without notice.
North America:
Tel. (800) 366-2266, Fax (800) 618-8883
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
V 3.0

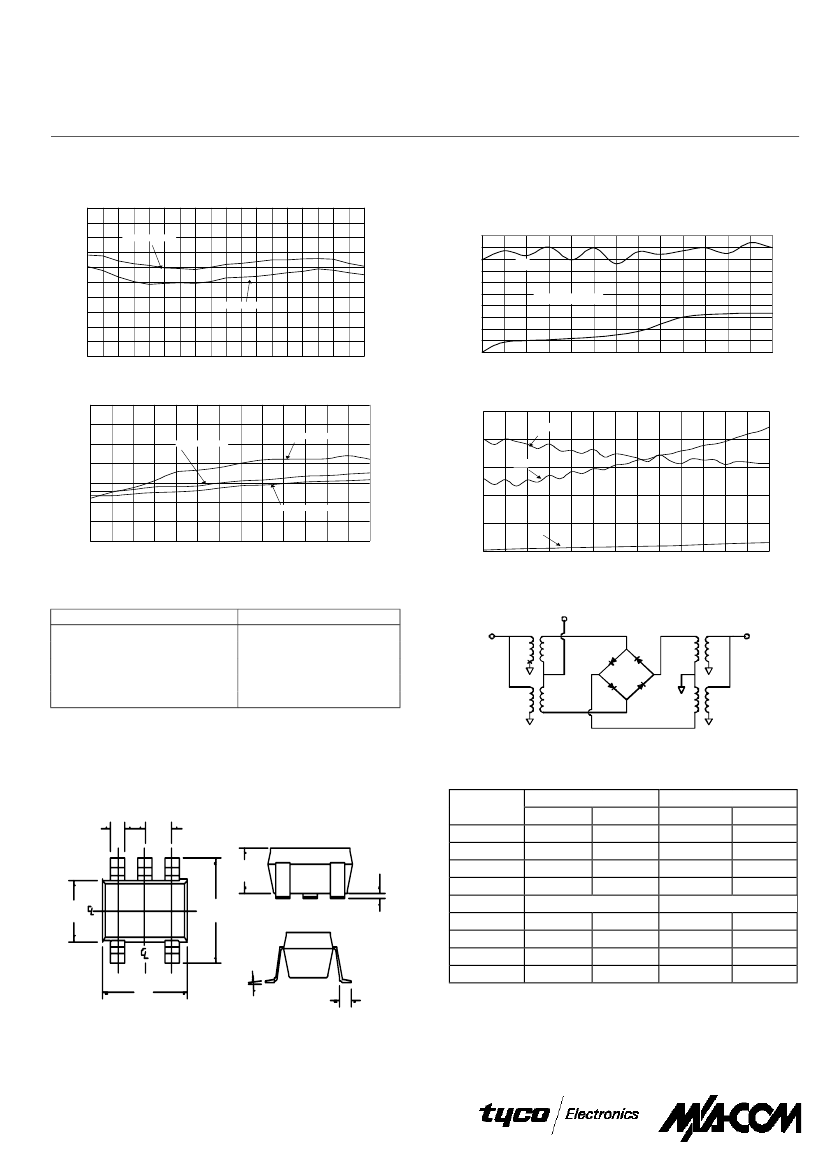

Low Cost Silicon Double Balanced HMIC™ Mixer, 4.7 - 6.0 GHz
Typical Performance Curves
=
Conversion Loss
-5
-5 .5
-6
T y p ic a l + 3 d B m
MA4EX580L-1225
IP3 and 1 dB Compression
10
9
8
7
6
5
4
3
2
1
0
4.70
4.80
RELATIVE POWER (dB)
-6 .5
-7
-7 .5
-8
T y p ic a l + 7 d B m
IP
3
IP
3
(dBm)
1 dB Compression
-8 .5
-9
-9 .5
-1 0
4700
4900
5100
5300
5500
5700
5900
6100
6300
6500
4.90
5.00
5.10
5.20
5.30
5.40
5.50
5.60
5.70
5.80
5.90
6.00
F R E Q U E N C Y (M H z )
FREQUENCY (GHz)
Isolations
0
VSWR
3 .5
LO
R -I IS O L A T IO N
L - I IS O L A T IO N
-5
RELATIVE POWER (dB)
-1 0
3
VSWR RATIO
-1 5
2 .5
RF
-2 0
-2 5
L -R IS O L A T IO N
2
-3 0
1 .5
IF
-3 5
4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000
F R E Q U E N C Y (M H z )
1
4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000
F R E Q U E N C Y (M H z
Absolute Maximum Rating
1
Parameter
Operating Temperature
Storage Temperature
Incident LO Power
Incident RF Power
Mounting Temperature
Maximum Ratings
-65°C to +125°C
-65°C to +150°C
+20 dBm
+20 dBm
+235°C for 10 seconds
Schematic
IF
RF
PIN 1
PIN 5
LO
PIN 3
1. Exceeding these limits may cause permanent damage.
Case Style
SOT-25
5
X
SOT-25
1
DIM
A
B
C
D
E
F
G
H
J
INCHES
MIN
MAX
0.1103
0.1181
0.1023
0.1181
0.0355
0.0512
0.0591
0.0669
0.0374 Typ.
0.0138
0.0197
0.0031
0.0079
0.0020
0.0059
0.0138
0.0216
MILLIMETERS
MIN
MAX
2.8
3.10
2.6
3.00
0.9
1.30
1.5
1.7
0.95 Typ.
0.35
0.5
0.08
0.20
0.05
0.15
0.35
0.55
E
TYP.
C
H
D
B
G
A
J
1. Lead Coplanarity should be 0.003 (0.08) max.
Specifications subject to change without notice.
North America:
Tel. (800) 366-2266, Fax (800) 618-8883
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
V 3.0
