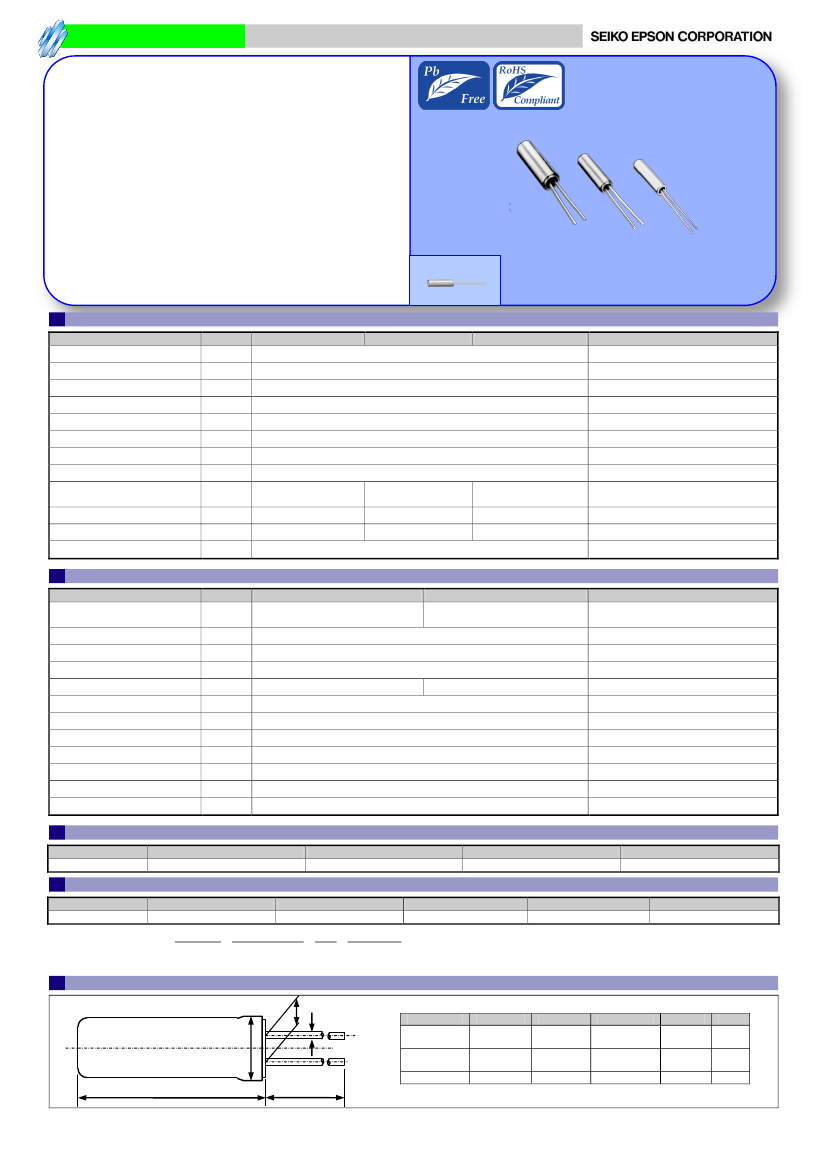

C-001R-327680K-APBFREE datasheet, PDF

Datasheet> All Categories > Passive components> C-001R-327680K-APBFREE

C-001R-327680K-APBFREE: DescriptionCrystals 32.768KHz 12.5pF 20ppm -10C +60C; CategoryPassive components; File Size353KB，2 Pages; ManufacturerEPSON; Websitehttp://www.epsondevice.com

Download Datasheet Parametric Compare View All

C-001R-327680K-APBFREE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C-001R-327680K-APBFREE	-	-	View	Buy Now

C-001R-327680K-APBFREE Overview

Crystals 32.768KHz 12.5pF 20ppm -10C +60C

C-001R-327680K-APBFREE Parametric

Parameter Name	Attribute value
Product Category	Crystals
Manufacturer	EPSON
RoHS	Details
Termination Style	Radial
Package / Case	Cylinder
Load Capacitance	12.5 pF
Frequency	32.768 kHz
Tolerance	20 PPM
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+ 60 C
Length	8 mm
Diameter	3.1 mm
Packaging	Bulk
Mounting Style	Through Hole
Factory Pack Quantity	1000
Type	Quartz Crystal

Preview

Download Datasheet

View All

Crystal unit

Product Number (please contact us)

C-002RX

: Q11C02RX1xxxx00

C-004R

: Q11C004R1xxxx00

C-005R

: Q11C005R1xxxx00

C-2 TYPE

: Q12C20001xxxx00

C-4 TYPE

: Q12C40001xxxx00

kHz RANGE CRYSTAL UNIT

C - TYPE

C - 2 TYPE

C - 4 TYPE

Frequency

range

Thickness

Overtone

order

Applications

32.768 kHz（20 kHz½120 kHz）

φ1.2

½φ2.0

mm Max.

Fundamental

Clock and Microcomputer

Actual size

C-002RX

C-2 TYPE

C-004R

C-4 TYPE

C-005R

Specifications for C-TYPE (characteristics)

Item

Nominal frequency range

Storage temperature

Operating temperature

Level of drive

Frequency tolerance (standard)

Symbol

f_nom

T_stg

T_use

f_tol

f_age

C-002RX

C-004R

32.768 kHz

-20 °C to +70 °C

-10 °C to +60 °C

1.0 µW Max.

±20 × 10

-6

+25 °C ± 5 °C

0.04

× 10

-6

/ °C

Max.

6 pF to ∞

50 kΩ Max.

（30

kΩ Typ.）

2.0 fF

0.85 pF

±3 × 10 / year Max.

-6

C-005R

Conditions / Remarks

Storage as single product.

+25 °C, DL=0.1 µW

Turnover temperature

Parabolic coefficient

Load capacitance

Motional resistance (ESR)

Motional capacitance

Shunt capacitance

Frequency aging

Please specify

50 kΩ Max.

（37

kΩ Typ.）

1.9 fF Typ.

0.75 pF Typ.

+25 °C, First year

50, 60 kΩ Max.

（30

kΩ Typ.）

2.0 fF

0.85 pF

Specifications for C-2 TYPE C-4 TYPE (characteristics)

Item

Nominal frequency range

Storage temperature

Operating temperature

Level of drive

Frequency tolerance (standard)

Symbol

f_nom

T_stg

T_use

f_tol

f_age

-6

C-2 TYPE

20 kHz to 120 kHz

-20 °C to +70 °C

-10 °C to +60 °C

1.0 µW Max.

±20 × 10 ,±50 × 10 ,±100 × 10

-6

C-4 TYPE

32 kHz to 120 kHz

Conditions / Remarks

Please contact us about available

frequencies.

Storage as single product.

±50 × 10 ,±100 × 10

-6

+25 °C, DL=0.1 µW

Turnover temperature

Parabolic coefficient

Load capacitance

Motional resistance (ESR)

Motional capacitance

Shunt capacitance

Frequency aging

+25 °C ± 5 °C

0.04

× 10 / °C Max.

6 pF to ∞

As per table below

4.0 fF to 0.6 fF

2.0 pF to 0.6 pF

±5 × 10

-6

/ year Max.

+25 °C, First year

Please specify

Motional resistance

Frequency

Motional resistance

C-2 TYPE

31.2 kHz≦f_nom＜40 kHz

35 kΩ Max.

40 kHz≦f_nom＜90 kHz

20 kΩ Max.

90 kHz≦f_nom≦120 kHz

12 kΩ Max.

20 kHz≦f_nom＜31.2 kHz

55 kΩ Max.

Motional resistance

Frequency

Motional resistance

C-4 TYPE

38 kHz≦f_nom＜60 kHz

30 kΩ Max.

60 kHz≦f_nom＜74 kHz

25 kΩ Max.

74 kHz≦f_nom≦100 kHz

22 kΩ Max.

100 kHz＜f_nom≦120 kHz

15 kΩ Max.

32 kHz≦f_nom＜38 kHz

55 kΩ Max.

Product name

(Standard form)

C-002RX 32.768000kHz 12.5 +20.0-20.0

①

②

③

④

①Model

②Frequency

③Load

capacitance(pF)

④Frequency

tolerance(

+25

C)

(Unit:mm)

-6

External dimentions

Model

C-002RX

C-2 TYPE

C-004R

C-4 TYPE

C-005R

6.0 Max.

5.0 Max.

4.6 Max.

4.0 Min.



2.0 Max.



1.5 Max.



1.2 Max.



0.2



0.18



0.15

0.7

0.5

0.3

C-001R-327680K-APBFREE Related Products

	C-001R-327680K-APBFREE	C-002RX-327680K-EPBFREE	C-005R-327680K-ACPBFREE	C-002RX-327680K-APBFREE
Description	Crystals 32.768KHz 12.5pF 20ppm -10C +60C	IC u0026 Component Sockets 8P DIP SKT 300 CL LADDER	Crystals 32.768 KHz 6 pF REFLOWABLE SMD	Tactile Switches 6x6x5.74mm 160g R/A
Product Category	Crystals	Crystals	Crystals	Crystals
Manufacturer	EPSON	EPSON	EPSON	EPSON
RoHS	Details	Details	Details	Details
Termination Style	Radial	Radial	Radial	Radial
Package / Case	Cylinder	Cylinder	Cylinder	Cylinder
Load Capacitance	12.5 pF	6 pF	9 pF	12.5 pF
Frequency	32.768 kHz	32.768 kHz	32.768 kHz	32.768 kHz
Tolerance	20 PPM	20 PPM	20 PPM	20 PPM
Minimum Operating Temperature	-10 C	- 10 C	- 10 C	- 10 C
Maximum Operating Temperature	+ 60 C	+ 60 C	+ 60 C	+ 60 C
Length	8 mm	6 mm	4.6 mm	6 mm
Diameter	3.1 mm	2 mm	1.2 mm	2 mm
Packaging	Bulk	Bulk	Bulk	Bulk
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole
Factory Pack Quantity	1000	500	500	500
Type	Quartz Crystal	Quartz Crystal	Quartz Crystal	Quartz Crystal
Drive Level	-	1 uW	1 uW	1 uW
ESR	-	30 kOhms	37 kOhms	30 kOhms
Lead Spacing	-	0.7 mm	0.3 mm	0.7 mm
