Part Number

Search

TNP10SC15R0FE

Description
Darlington Transistors TRANSISTOR ARRAYS
CategoryPassive components
File Size429KB,2 Pages
ManufacturerOhmite
Websitehttps://www.ohmite.com
Download Datasheet Parametric View All

TNP10SC15R0FE Online Shopping

Suppliers Part Number Price MOQ In stock
TNP10SC15R0FE - - View Buy Now

TNP10SC15R0FE Overview

Darlington Transistors TRANSISTOR ARRAYS

TNP10SC15R0FE Parametric

Parameter NameAttribute value
Product CategoryThin Film Resistors - Through Hole
ManufacturerOhmite
RoHSDetails
Resistance15 Ohms
Power Rating10 W
Tolerance1 %
Temperature Coefficient50 PPM / C
Operating Temperature Range- 55 C to + 155 C
Length12 mm
Termination StyleRadial
PackagingBulk
Height3.1 mm
Lead Diameter0.6 mm
Lead Spacing5.08 mm
Package / CaseTO-126
ProductThin Film Resistors Through Hole
Factory Pack Quantity60
Width8.5 mm

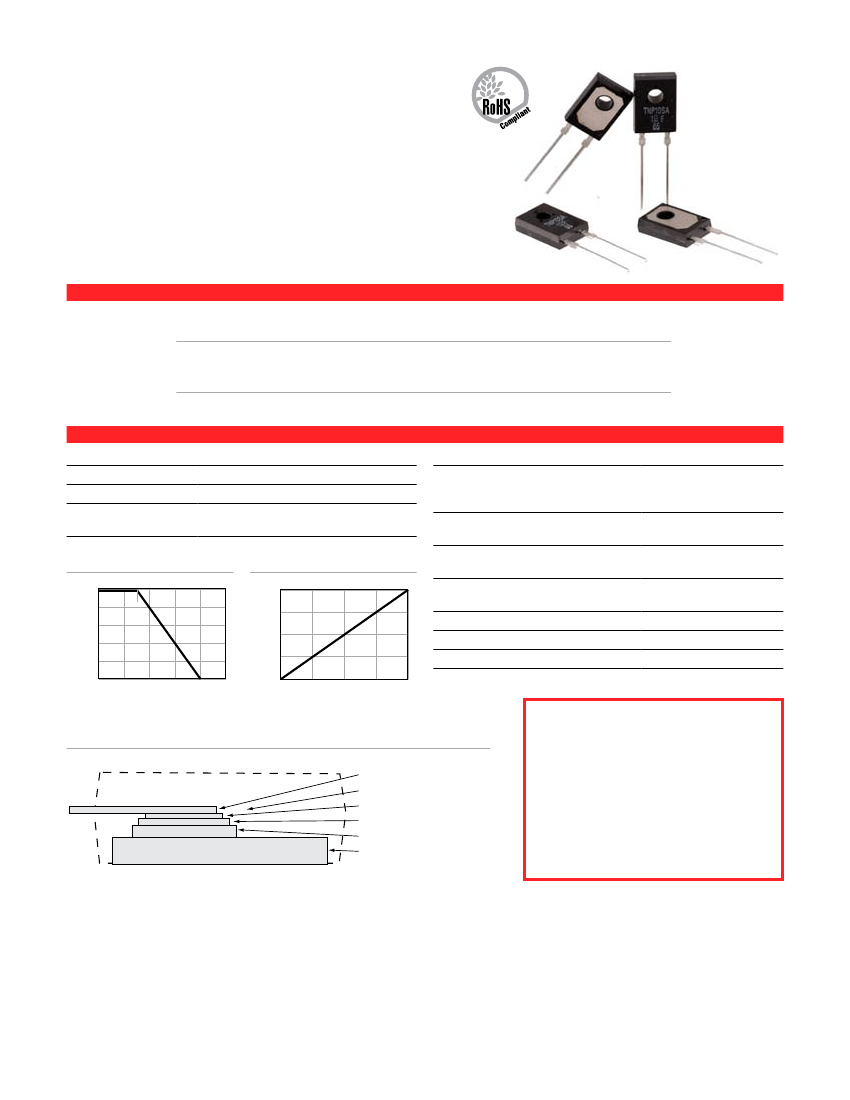

TNP10 Series
Thin Film TO-126 Resistor
Ohmite offers a high power heatsinkable TO-126 packaged
resistor. They can achieve 1W in free air and 10W when
attached to a proper heatsink. The non-inductive design is ideal
for high speed circuits. These models exhibit low noise, high
frequency operation and high density installation. Applications
include: Constant current sources, electronic load circuits, LSI
tests, measurement, audio PA systems and motor control.
S P e c i f i c aT i o N S
Series
TNP10S
Wattage*
10W
* Flange temp. -55° - 25°C; 1W at free air **From hot spot to flange
Resistance
Range (Ω)
0.09-0.1
0.1-9.1
10-51K
Tolerance
5% (J)
±1% (F), 5% (J)
±1% (F)
TCR
Heat
(ppm/°C) Resistance**
±250
±100
5.9°C/W
±50
characTeriSTicS
Resistance Range
Values listed below; others on request
Temp. Range
-55°C to +155°C
Rated Temperature
+25°C
Rated Power
10W (-55 to 25°C flange temperature),
1W free air
Item Performance
Dielectric
2000VAC
Withstanding
Voltage
Insulation
Over 1000MΩ
Resistance
Moisture
±(1.0%+0.05Ω)
Resistance
Load Life
±(1.0%+0.05Ω)
Soldering Heat
±(1.0%+0.05Ω)
Solderability
Over 95% of surface
Vibration
±0.25%
0
2.5
5
7.5
Applied Power (W)
10
Condition
60 sec., between termi-
nals and flange
Between terminals and
flange
60°C, 90 to 95%RH, DC
0.1W, 1000 hrs.
25°C, 90min. ON, 30min.
OFF, 1000hrs
350 ±5°C, 3 sec.
230 ±5°C, 3 sec.
IEC 60068-2-6
Derating
10
Rating Power* (W)
8
6
4
2
50° 100° 155° 200°
Flange Temp. (°C)
*with 2.8K/W heatsink
0
-55°
25°
Temperature Rise
Temperature Rise (°C)
120
90
60
30
0
Coonstruction
Leads (tin plated Cu)
Molding (epoxy UL94-VO)
Conductor (Cu)
Resistor (Ni-Cr or RuO)
Substrate (alumina)
Flange (Ni plated Cu)
THIS PRODUCT IS DESIGNED
FOR USE WITH PROPER
HEATSINKING.
Maximum base plate temperature of the resistor
must be monitored and kept within speci-
fied limits to establish the power rating. Best
technique is to attach a thermocouple to the side
of the base plate of the resistor. Temperature of
plastic housing or heat sink cannot be used to
establish rating of the resistor.

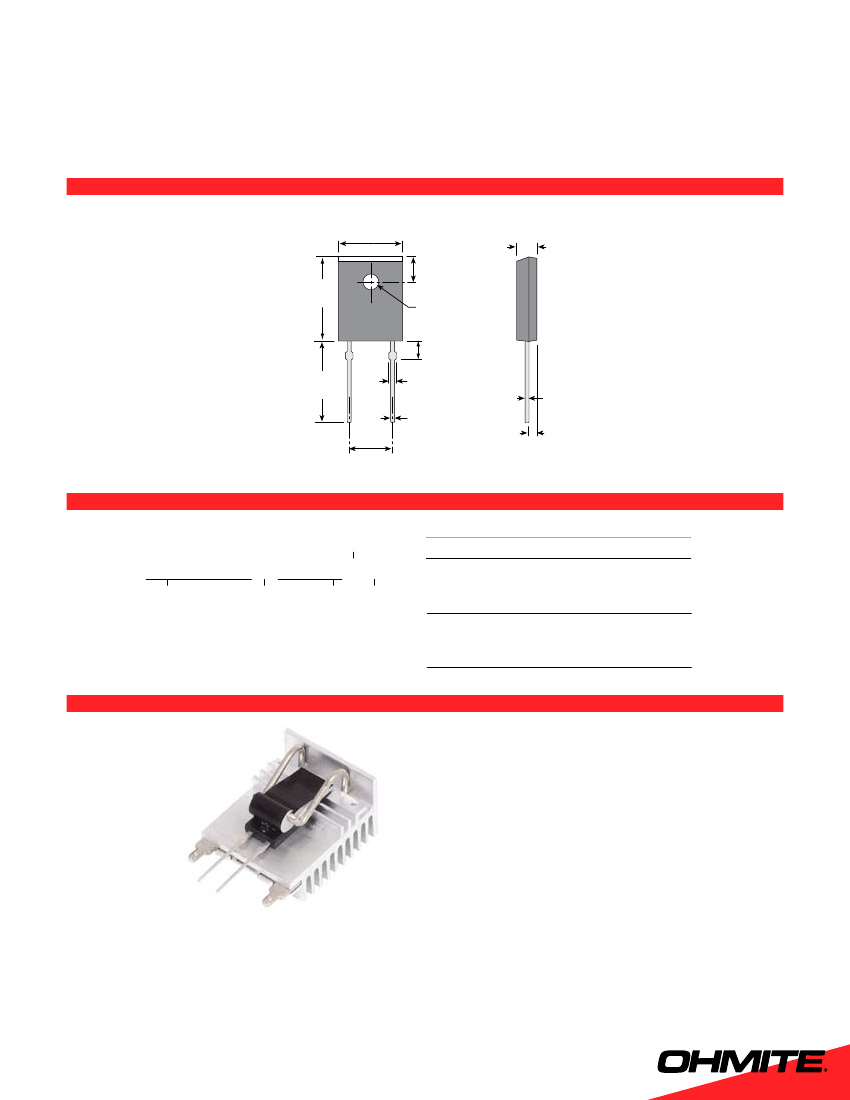

(continued)
152
1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
