SAW Components
SAW IF filter
Data Sheet
Application
s
Low-loss IF filter for WiMAX
s
Usable passband 10.4 MHz
s
Balanced or unbalanced operation possible
B5032
456.00 MHz
Features

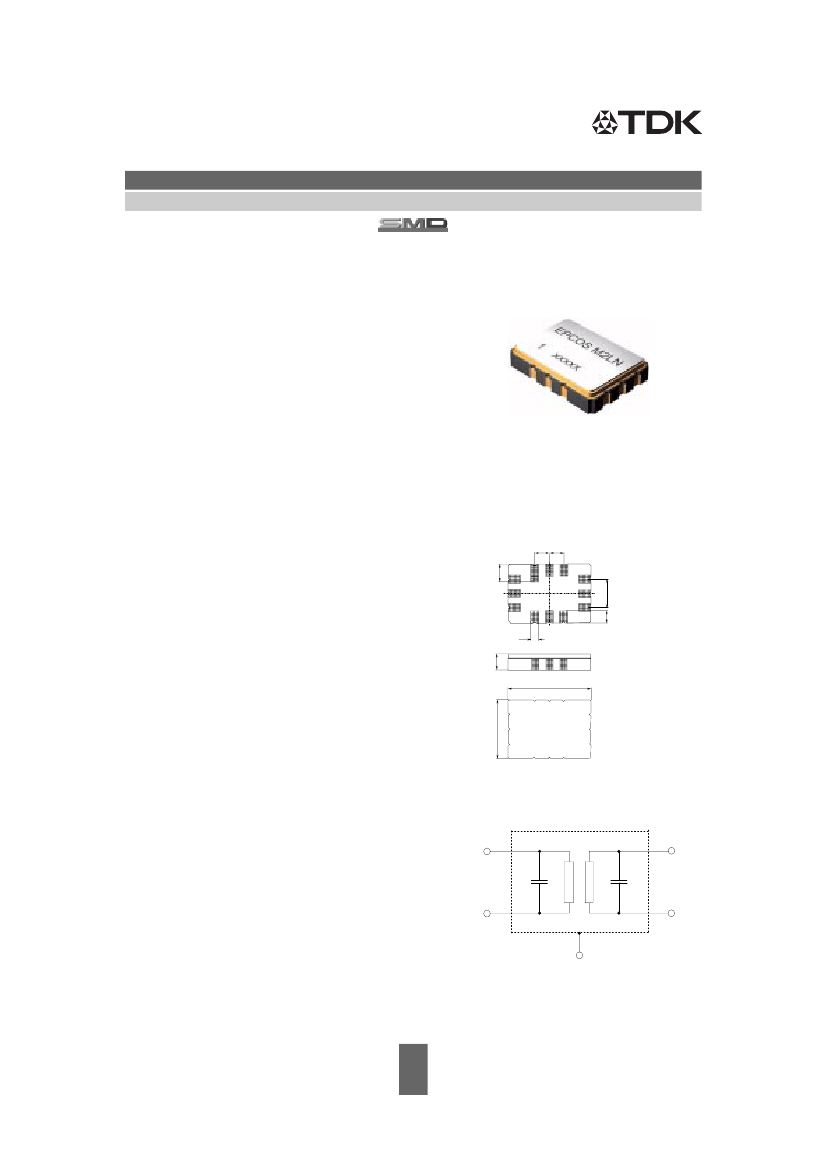

Package size 7.0 x 5.0 x 1.33 mm
3
Package code QCC12E
RoHS compatible
Approx. weight 0.2 g
Ceramic package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
Electrostatic Sensitive Device
(ESD)
s
Filter surface passivated
s
s
s
s
s
1,27 1,27
1
2
3
4
1,4
12
1,1 2,54
bottom view
11
10
9
8
7
0,8
1,33
side view
7,0
5,0
6
5
top view
Pin configuration
s
s
s
s
s
s
10
12
4
6
2, 3, 8, 9
1, 5, 7, 11
Input
Input ground or balanced input
Output
Output ground or balanced output
To be grounded
Case ground
10
4
12
6
1,5,7,11
Please read
cautions and warnings and
important notes
at the end of this document.
2
Jun 29, 2009
SAW Components
SAW IF filter
Data Sheet
Characteristics
B5032
456.00 MHz
Operating temperature range: T =
–40 to 90 ˚C
Terminating source impedance: Z
S
= 50
Ω
single ended or 200
Ω
balanced and matching network
Terminating load impedance:
Z
L
= 50
Ω
single ended or 200
Ω
balanced and matching network
min.
Nominal frequency
Minimum insertion attenuation
(including matching network)
Amplitude ripple
(p-p)
f
N
±
2.9 MHz
f
N
±
5.2 MHz
Group delay ripple
(p-p)
f
N
±
5.2 MHz
Absolute group delay
(at f
N
)
Relative attenuation
(relative to
α
min
)
f
N
±
10.0 ... f
N
±
43.0 MHz
411 - 413 MHz
393 - 411 MHz
343 - 393 MHz
Temperature coefficient of frequency
1)
f
N
α
min
∆α
—
—
typ.
@ 25 ˚C
456.0
8.7
max.
—
11.0
MHz
dB
—
—
∆τ
—
0.4
0.5
1.5
2.0
dB
dB
35
150
ns
τ
α
rel
—
0.7
2.0
µs
37
1)
40
40
42
TC
f
—
43
50
50
50
–18
—
—
—
—
—
dB
dB
dB
dB
ppm/K
for balanced operation mode only a minimum selectivity of 30 dB could be specified
Matching network to 50
Ω
single ended
(element values depend on PCB layout)
L
s1
= 33.0 nH
L
p2
= 15.0 nH
L
p3
= 15.0 nH
L
s4
= 33.0 nH
Please read
cautions and warnings and
important notes
at the end of this document.
3
Jun 29, 2009
SAW Components
SAW IF filter
Data Sheet
Matching network to 200
Ω
balanced
(element values depend on PCB layout)
4:1 transformer is only required for measurement in a 50
Ω
environment
B5032
456.00 MHz
C
s1,
C
s2
not used
L
p1
= 15 nH
C
s3,
C
s4
not used
L
p2
= 15 nH
1:4
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
DC voltage
ESD voltage
Input power
1)
4:1
T
T
stg
V
DC
V
DC
V
ESD
P
IN
–40/+90
–40/+90
5
0
200
1)
10
˚C
˚C
V
V
V
dBm
between input, output and ground
between 10,12 and between 4,6
machine model, 1 pulse
acc. to J-STD22A-0115A (machine model, 1 pulse +/-).

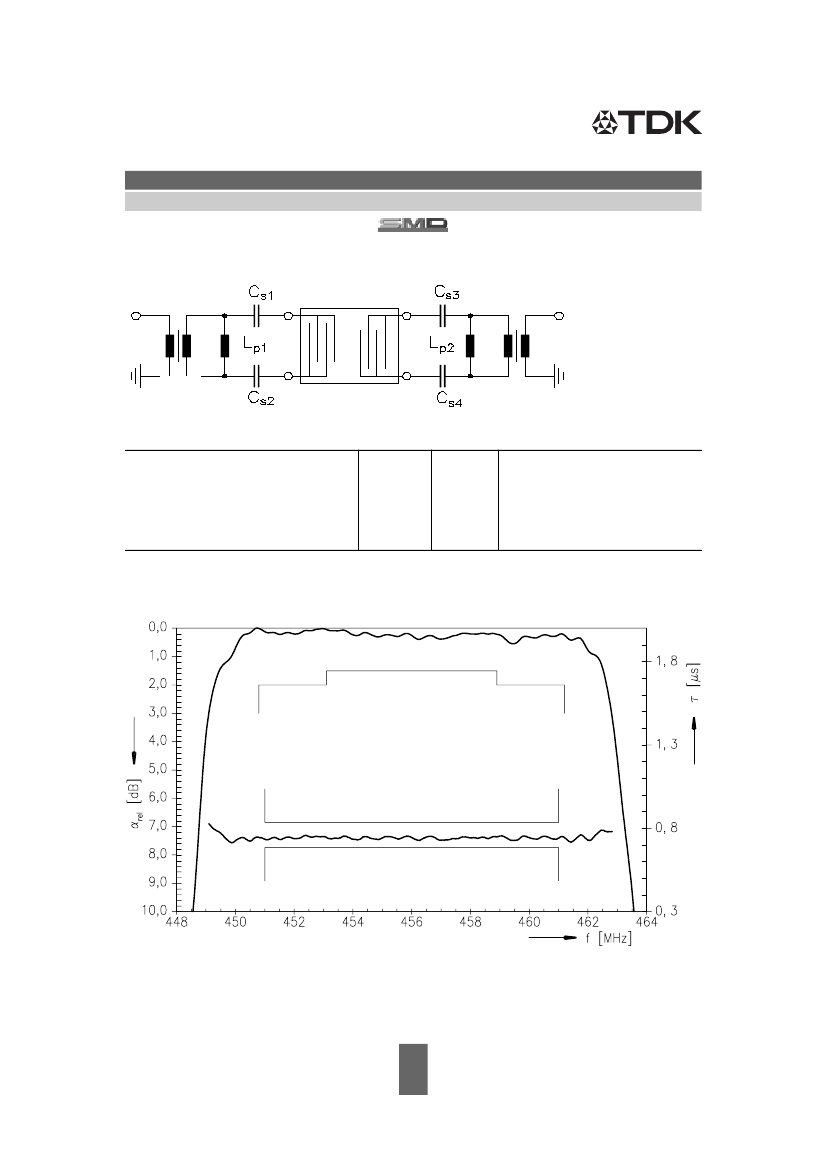

Normalized transfer function (pass band)
Please read
cautions and warnings and
important notes
at the end of this document.
4
Jun 29, 2009
SAW Components
SAW IF filter
Data Sheet

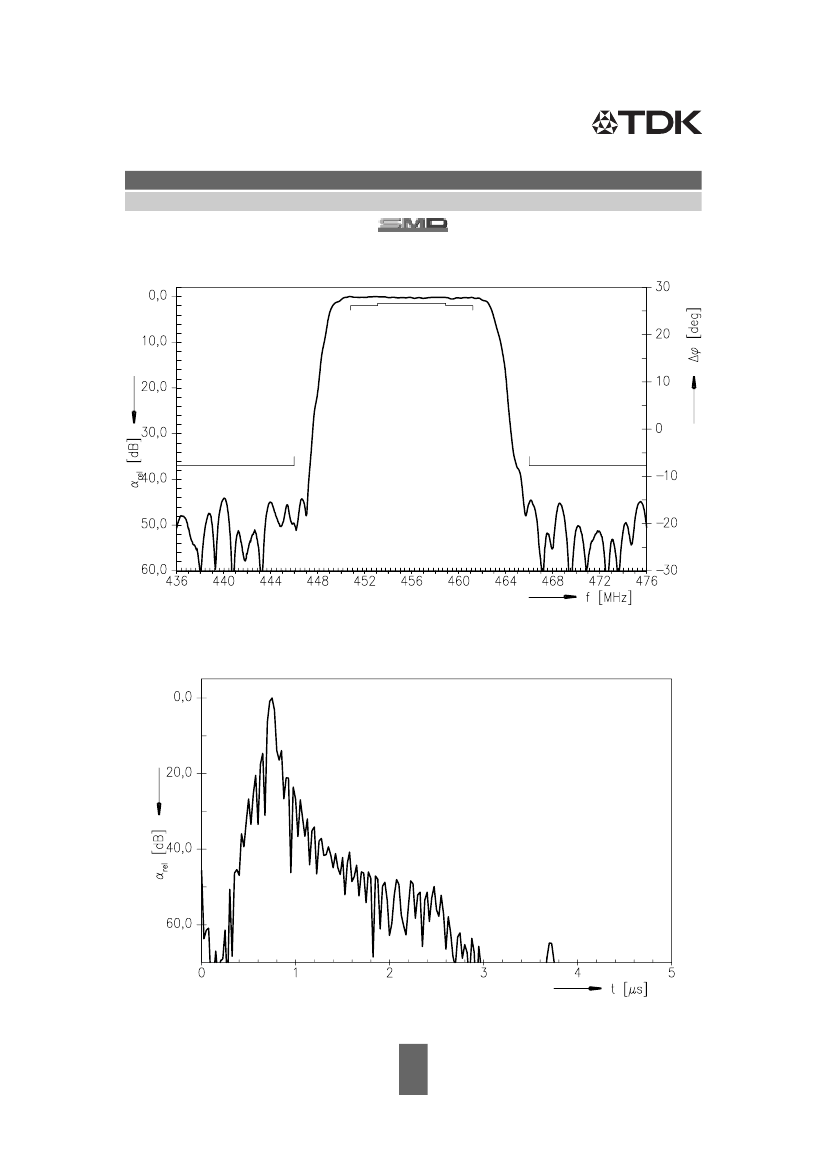

Transfer function
