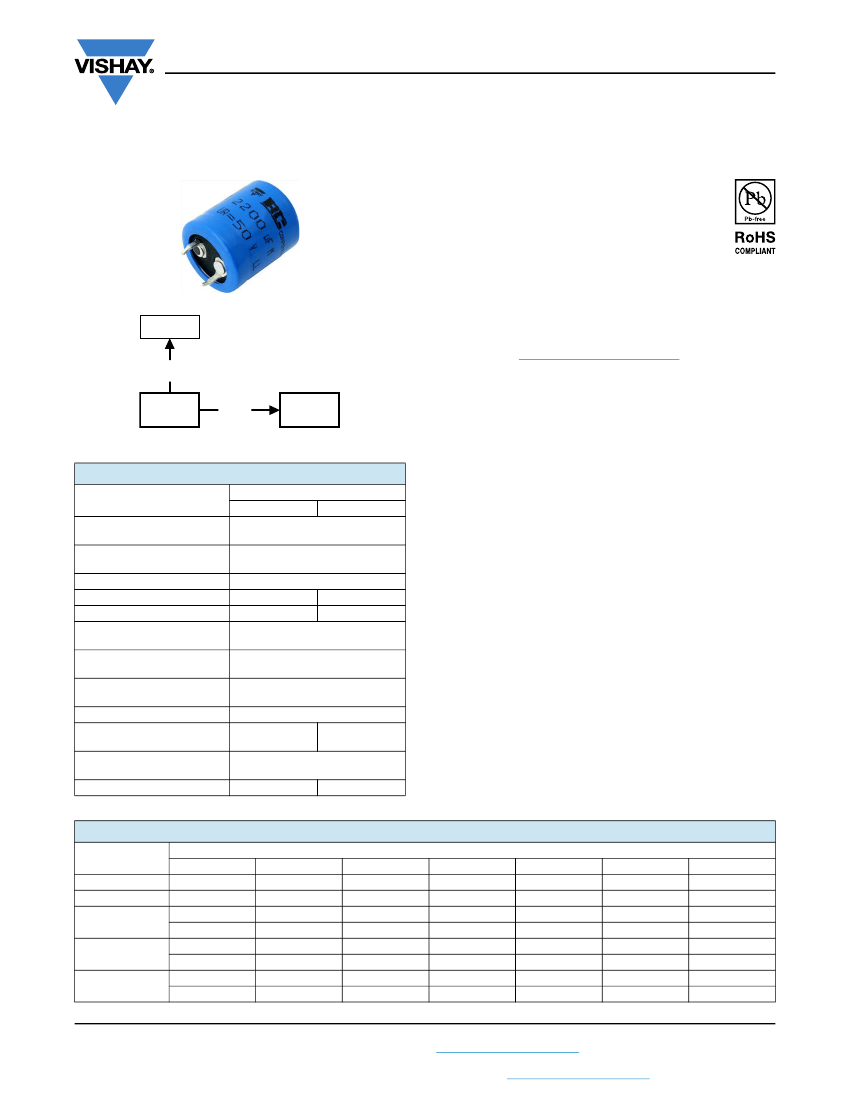

058/059 PLL-SI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Power Long Life Snap-In
FEATURES
• Long useful life: 10 000 h at +105 °C
• High ripple current capability
• Keyed polarity version available
• Polarized aluminum electrolytic capacitors, non-solid
electrolyte
• Large types, minimized dimensions, cylindrical aluminum
case, insulated with a blue sleeve
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
smaller
dimensions
058/059
PLL-SI
056/057
PSM-SI
159 PUL-SI
APPLICATIONS
85 °C
• Computer, telecommunication and industrial systems
• Smoothing and filtering applications
• Standard and switched mode power supplies
• Energy storage in pulse systems
Fig. 1
QUICK REFERENCE DATA
DESCRIPTION
VALUE
058
059
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
Nominal case sizes
22 x 25 to 35 x 50
(Ø D x L in mm)
Rated capacitance range
33 μF to 47 000 μF
(E6 series), C
R
Tolerance on C
R
± 20 %
Rated voltage range, U
R
10 V to 100 V
200 V to 400 V
Category temperature range -40 °C to 105 °C -25 °C to 105 °C
50
V: 2000 h;
Endurance test at 105 °C
63 V: 5000 h
50
V: 5000 h;
Useful life at 105 °C
63 V: 10 000 h
Useful life at 40 °C,
50
V: 125 000 h;
1.9 x I
R
applied
63 V: 250 000 h
Shelf life at 0 V, 105 °C
500 h
Max. RMS value of
n/a
12 V
ripple voltage
Based on sectional
IEC 60384-4 / EN130300
specification
Climatic category IEC 60068
40 / 105 / 56
25 / 105 / 56
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 058 SERIES
(Ø D x L in mm)
C
R
(μF)
330
470
680
1000
1500
10
-
-
-
-
-
-
-
-
16
-
-
-
-
-
-
-
-
25
-
-
-
-
-
-
-
-
U
R
(V)
40
-
-
-
-
-
-
22 x 25
-
50
-
-
-
-
22 x 25
-
22 x 30
-
63
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
100
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
Revision: 12-Oct-16
Document Number: 28342
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
058/059 PLL-SI
www.vishay.com
Vishay BCcomponents
U
R
(V)
40
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 058 SERIES
(Ø D x L in mm)
C
R
(μF)
2200
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
10
-
-
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
16
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
25
22 x 25
-
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
50
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
-
-
63
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
-
-
-
-
100
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
-
-
-
-
-
-
-
-
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 059 SERIES
(Ø D x L in mm)
C
R
(μF)
33
47
68
U
R
(V)
200
-
-
-
-
22 x 25
-
22 x 30
-
22 x 35
25 x 30
30 x 30
25 x 40
30 x 35
25 x 50
35 x 35
30 x 45
35 x 50
250
-
-
22 x 25
-
22 x 30
-
22 x 35
25 x 30
30 x 30
25 x 35
30 x 35
25 x 50
35 x 35
30 x 45
35 x 45
-
-
385
22 x 25
22 x 30
22 x 35
25 x 30
30 x 30
25 x 40
25 x 50
30 x 40
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
400
-
22 x 30
22 x 35
25 x 30
30 x 30
25 x 40
30 x 35
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
100
150
220
330
470
680
1000
Revision: 12-Oct-16
Document Number: 28342
2
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
058/059 PLL-SI
www.vishay.com

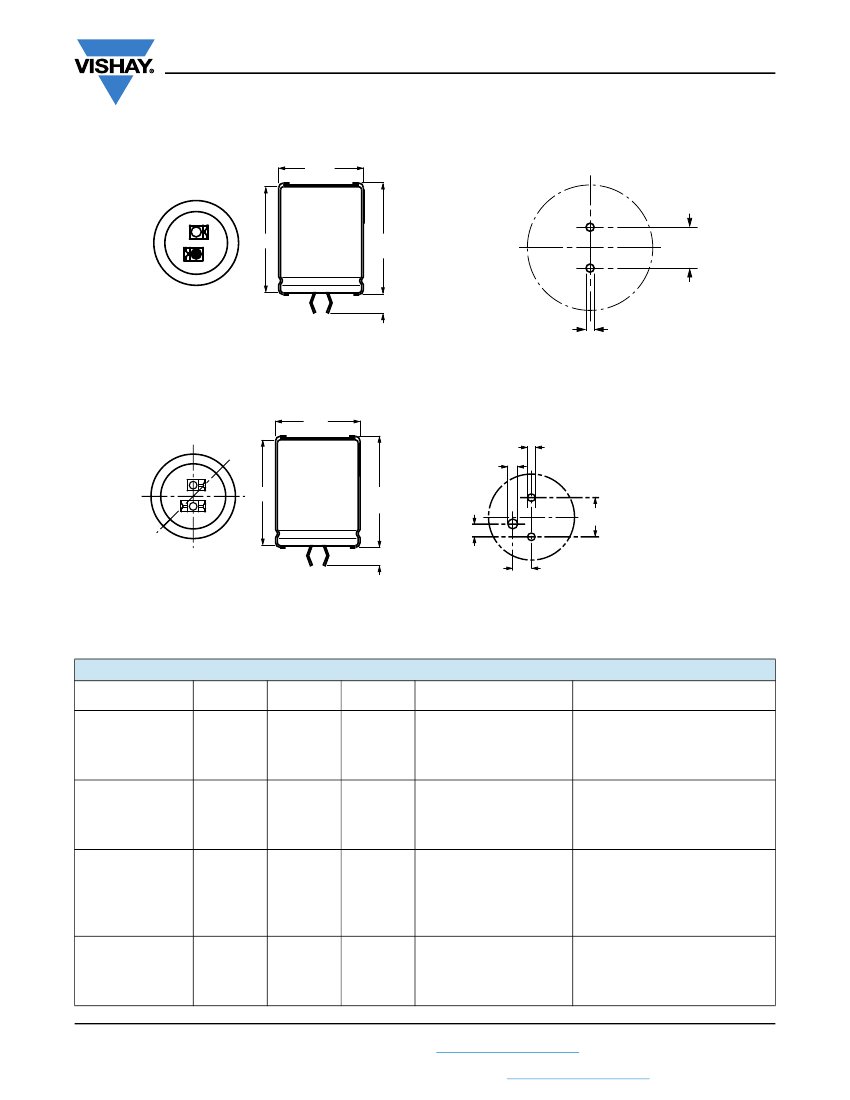

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
TWO TERMINAL SNAP-IN
ØD
Vishay BCcomponents
+ TERMINAL
- TERMINAL
L
L+2
max.
10 ± 0.1
Bottom view
5.8
+0
-1
The minus terminal can be marked with a black dot or with an imprinted
“-”
sign.
Ø 2 ± 0.1 (2 x)
Fig. 2 - Two terminal snap-in
Fig. 3 - Mounting hole diagram
THREE TERMINAL SNAP-IN
ØD
Ø 2 ± 0.1 (2 x)
Ø 2.5 ± 0.1
+ TERMINAL
- TERMINAL
L+2
max.
10 ± 0.1
minus pole
marking
Bottom view
3.3 ± 0.1
4 ± 0.5
4.75 ± 0.1
The negative terminal has
TWO
pins which are
BOTH
electrically
connected.
The 10 mm
spacing
of the 2 pin
snap-in
is used as the base layout
and a third hole is added.
The third hole is closer to the
negative primary hole
so
that
polarization is always maintained,
together with added mechanical
stability.
L
Fig. 4 - Three terminal snap-in
Fig. 5 - Mounting hole diagram
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL CASE
SIZE Ø D x L
22 x 25
22 x 30
22 x 35
22 x 40
25 x 30
25 x 35
25 x 40
25 x 50
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 35
35 x 40
35 x 45
35 x 50
Revision: 12-Oct-16
Ø D
MAX.
23
23
23
23
26
26
26
26
31
31
31
31
31
36
36
36
36
L
MAX.
27
32
37
42
32
37
42
52
32
37
42
47
52
37
42
47
52
MASS
(g)
12
16
20
23
22
24
27
38
30
35
40
45
50
48
55
63
72
PACKAGING QUANTITIES
(units per box)
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
CARDBOARD BOX DIMENSIONS
LxWxH
260 x 250 x 39
260 x 250 x 44
260 x 250 x 49
260 x 250 x 54
290 x 280 x 44
290 x 280 x 49
290 x 280 x 54
290 x 280 x 64
340 x 330 x 44
340 x 330 x 49
340 x 330 x 54
340 x 330 x 59
340 x 330 x 64
390 x 198 x 49
390 x 198 x 54
390 x 198 x 59
390 x 198 x 64
Document Number: 28342
3
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
058/059 PLL-SI
www.vishay.com
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 058 series
10 000 μF / 25 V; ± 20 %
Nominal case size: Ø 30 mm x 40 mm
2-terminal snap-in:
Ordering code: MAL2 058 56103 E3
Former 12NC: 2222 058 56103
3-terminal snap-in:
Ordering code: MAL2 058 76103 E3
Former 12NC: 2222 058 76103
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz
Rated RMS ripple current at 100 Hz
or
10 kHz and 105 °C
Max. leakage current after 1 min at U
R
Max. leakage current after 5 min at U
R
Max. equivalent series resistance at 100 Hz
Max. impedance at 10 kHz
Note
