Quartz Crystal
•
•
•
•
•
•
•
•
•
MP Series
FEATURES
Standard HC-49/U Package, HC-49/U SMMC Package Option Available
Stable Frequency Over Temperature and Drive Level
Fundamental and 3
rd
Overtone Crystals
Frequency Range 1.8432 – 64 MHz
Frequency Tolerance, ±30 ppm Standard
Frequency Stability, ±50 ppm Standard
Operating Temperature, –20°C to +70°C Standard, -40°C to +85°C Available
Tape & Reel Packaging Available
RoHS/Green Compliant (6/6)
APPLICATIONS
The MP crystal series offers excellent long-term stability and reliability in a proven resistance-weld metal package.
The excellent shock performance makes it suitable for microprocessor, telecommunication, industrial, consumer
electronics and networking applications.

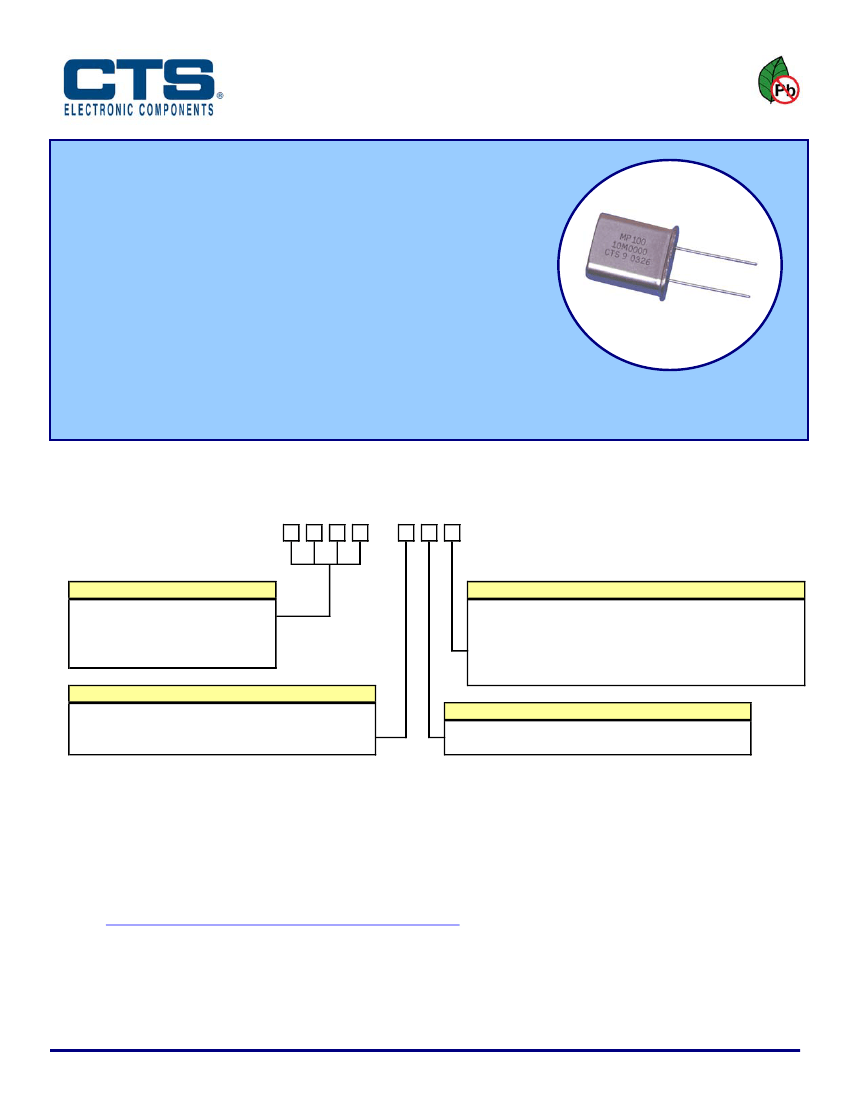

ORDERING INFORMATION
MP
-
FREQUENCY/LOAD CODE
Product Frequency/Load Code.
[3 to 4 digits]
Refer to Standard Product Part Numbers
table on Page 2.
PACKAGING OPTIONS
Blank - Bulk
**
1 - Tape and Reel (SM/SMMC Product Option Only)
2 - Radial Taping (Ammopak)
** Standard packaging is bulk in a bag.
PRODUCT OPTIONS
INS - Mylar Insulation Spacer
SLV - Insulating Body Sleeve
*
SMMC - Surface Mount Lead Form w/ Metal Clip Third Lead
*
SM - Surface Mount Lead Form w/ TW Third Lead [Obsolete]
TW - Hold Down Top Wire (welded) [Obsolete]
TEMPERATURE RANGE OPTIONS
Blank - Standard, -20°C to +70°C
E - Extended Temperature Range, -40°C to +85°C
* Consult factory for Option availability.
Non-Standard Ordering Options
Custom requirements may be available upon request. Use form C052 to detail non-standard parameters.
(http://www.ctscorp.com/components/CTS_Crystal_Specifying_Form.xls)
Contact your local CTS Representative or CTS Customer Service for assistance.
Document No. 008-0308-0
Page 1- 6
Rev. H
www.ctscorp.com
Low Cost Quartz Crystal
STANDARD PRODUCT PART NUMBERS
Part numbers in
BOLD
are common stock items through CTS authorized distributors. Non-bold part numbers may be stocked or are available for order.
Contact your CTS Distributor or local CTS Representative for availability.
PART
PART
PART
PART
LOAD
LOAD
OPERATING
OPERATING
FREQUENCY
FREQUENCY
NUMBER
NUMBER
NUMBER
NUMBER
(MHz)
(MHz)
CAPACITANCE
CAPACITANCE
MODE
MODE
-20/70°C
-40/85°C
-20/70°C
-40/85°C
MP Series
1.843200
1.843200
1.843200
2.000000
2.000000
2.000000
2.457600
3.579545
3.579545
3.686400
3.686400
3.686400
4.000000
4.000000
4.000000
4.032000
4.032000
4.096000
4.194304
4.915200
4.915200
4.915200
5.000000
5.000000
5.000000
5.068000
5.068000
5.185000
5.185000
5.185000
5.714300
5.714300
6.000000
6.000000
6.000000
6.000000
6.144000
6.144000
6.250000
6.400000
6.553600
6.553600
7.372800
7.372800
7.372800
8.000000
8.000000
8.000000
8.000000
8.192000
9.216000
9.830400
9.830400
9.830400
10.000000
10.000000
10.000000
10.000000
MP018A
MP018B
MP018S
MP020A
MP020S
MP020B
MP024S
MP036
MP036S
MP037A
MP037
MP037B
MP04A
MP040
MP040B
MP043A
MP043
MP042A
MP041
MP049A
MP042
MP049B
MP05B
MP05A
MP050C
MP050
MP051A
MP052
MP051
MP052C
MP057
MP057A
MP060A
MP060
MP060B
MP060C
MP061
MP061C
MP062
MP064
MP065
MP065C
MP073
MP073A
MP073B
MP080
MP080A
MP080B
MP080C
MP081B
MP092B
MP098A
MP098
MP098B
MP100
MP100A
MP100B
MP101
MP018A-E
MP018B-E
MP018S-E
MP020A-E
MP020S-E
MP020B-E
MP024S-E
MP036-E
MP036S-E
MP037A-E
MP037-E
MP037B-E
MP04A-E
MP040-E
MP040B-E
MP043A-E
MP043-E
MP042A-E
MP041-E
MP049A-E
MP042-E
MP049B-E
MP05B-E
MP05A-E
MP050C-E
MP050-E
MP051A-E
MP052-E
MP051-E
MP052C-E
MP057-E
MP057A-E
MP060A-E
MP060-E
MP060B-E
MP060C-E
MP061-E
MP061C-E
MP062-E
MP064-E
MP065-E
MP065C-E
MP073-E
MP073A-E
MP073B-E
MP080-E
MP080A-E
MP080B-E
MP080C-E
MP081B-E
MP092B-E
MP098A-E
MP098-E
MP098B-E
MP100-E
MP100A-E
MP100B-E
MP101-E
Series
18 pF
13 pF
Series
20 pF
18 pF
32 pF
Series
18 pF
Series
20 pF
18 pF
Series
20 pF
18 pF
Series
20 pF
20 pF
12 pF
Series
20 pF
18 pF
Series
20 pF
18 pF
Series
20 pF
Series
20 pF
32 pF
Series
20 pF
Series
20 pF
18 pF
32 pF
20 pF
32 pF
30 pF
20 pF
20 pF
12 pF
Series
20 pF
18 pF
Series
20 pF
18 pF
32 pF
18 pF
18 pF
Series
20 pF
18 pF
Series
20 pF
18 pF
30 pF
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
10.738635
11.000000
11.000000
11.000000
11.059200
11.059200
11.059200
11.059200
12.000000
12.000000
12.000000
12.000000
12.288000
12.288000
12.288000
12.288000
14.318180
14.318180
14.745600
14.745600
14.745600
15.000000
16.000000
16.000000
16.000000
18.000000
18.432000
18.432000
18.432000
19.660800
19.660800
19.660800
20.000000
20.000000
20.000000
22.118400
22.118400
24.000000
24.000000
24.000000
24.576000
24.576000
25.000000
25.000000
25.000000
27.000000
27.000000
32.000000
32.000000
32.768000
36.000000
40.000000
48.000000
48.000000
48.000000
50.000000
64.000000
MP107
MP110B
MP110A
MP110
MP111
MP111A
MP111B
MP111C
MP120
MP120A
MP120B
MP120C
MP122C
MP122A
MP122B
MP122
MP143
MP143B
MP147
MP147A
MP147B
MP150
MP160
MP160A
MP160B
MP180
MP184
MP184A
MP184B
MP196
MP196A
MP196B
MP200
MP200A
MP200B
MP221
MP221B
MP240
MP240A
MP240B
MP245
MP245B
MP250
MP250A
MP250B
MP270
MP270B
MP320A
MP320B
MP327B
MP360
MP400
MP480
MP480A
MP480B
MP500B
MP640B
MP107-E
MP110B-E
MP110A-E
MP110-E
MP111-E
MP111A-E
MP111B-E
MP111C-E
MP120-E
MP120A-E
MP120B-E
MP120C-E
MP122C-E
MP122A-E
MP122B-E
MP122-E
MP143-E
MP143B-E
MP147-E
MP147A-E
MP147B-E
MP150-E
MP160-E
MP160A-E
MP160B-E
MP180-E
MP184-E
MP184A-E
MP184B-E
MP196-E
MP196A-E
MP196B-E
MP200-E
MP200A-E
MP200B-E
MP221-E
MP221B-E
MP240-E
MP240A-E
MP240B-E
MP245-E
MP245B-E
MP250-E
MP250A-E
MP250B-E
MP270-E
MP270B-E
MP320A-E
MP320B-E
MP327B-E
MP360-E
MP400-E
MP480-E
MP480A-E
MP480B-E
MP500B-E
MP640B-E
32 pF
Series
20 pF
18 pF
Series
20 pF
18 pF
32 pF
Series
20 pF
18 pF
32 pF
Series
20 pF
18 pF
32 pF
Series
18 pF
Series
20 pF
18 pF
Series
Series
20 pF
18 pF
Series
Series
20 pF
18 pF
Series
20 pF
18 pF
Series
20 pF
18 pF
20 pF
18 pF
Series
20 pF
18 pF
Series
18 pF
Series
20 pF
18 pF
Series
18 pF
20 pF
18 pF
18 pF
Series
20 pF
Series
20 pF
18 pF
18 pF
18 pF
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
3rd Overtone
Document No. 008-0308-0
Page 2 - 6
Rev. H
Low Cost Quartz Crystal
ELECTRICAL CHARACTERISTICS
PARAMETER
Frequency Range
Operating Mode
Crystal Cut
Frequency Tolerance @ +25°C
Frequency Stability Tolerance
(Operating Temperature Range, Referenced to 25°C Reading)
MP Series
ELECTRICAL PARAMETERS
VALUE
1.8432 MHz to 64.0 MHz
Fundamental or 3rd Overtone
AT-Cut
± 30 ppm Standard *
± 50 ppm Standard *
-20°C to +70°C *
-40°C to +85°C Available,
See Ordering Information
See ESR Table
See Standard Part Numbers tables *
7.0 pF Maximum
100 µW Typical, 1,000 µW Maximum
±3 ppm/yr Typical, ±5 ppm/yr Maximum
-40°C to +85°C
+250°C Maximum, 10 Seconds Maximum
Operating Temperature Range
Equivalent Series Resistance
Load Capacitance or Resonance Mode
Shunt Capacitance (C
0
)
Drive Level
Aging @ +25°C
Storage Temperature Range
Reflow Condition, per JEDEC J-STD-020
* Custom requirements may be available upon request. Use form C052 to detail non-standard parameters.
EQUIVALENT SERIES RESISTANCE TABLE
FREQUENCY RANGE OSCILLATION MODE ESR MAXIMUM
1.80 MHz - < 2.00 MHz
Fundamental
600 Ohms
2.00 MHz - < 2.40 MHz
Fundamental
500 Ohms
2.40 MHz - < 3.00 MHz
Fundamental
300 Ohms
3.00 MHz - < 3.70 MHz
Fundamental
200 Ohms
3.70 MHz - < 4.20 MHz
Fundamental
100 Ohms
4.20 MHz - < 4.90 MHz
Fundamental
70 Ohms
4.90 MHz - < 6.00 MHz
Fundamental
50 Ohms
6.00 MHz - < 8.00 MHz
Fundamental
40 Ohms
8.00 MHz - < 10.00 MHz
Fundamental
35 Ohms
10.00 MHz - < 12.50 MHz
Fundamental
30 Ohms
12.50 MHz - < 40.00 MHz
Fundamental
25 Ohms
24.00 MHz - < 64.00 MHz
3rd Overtone
55 Ohms
Document No. 008-0308-0
Page 3 - 6
Rev. H
Low Cost Quartz Crystal
MECHANICAL SPECIFICATIONS

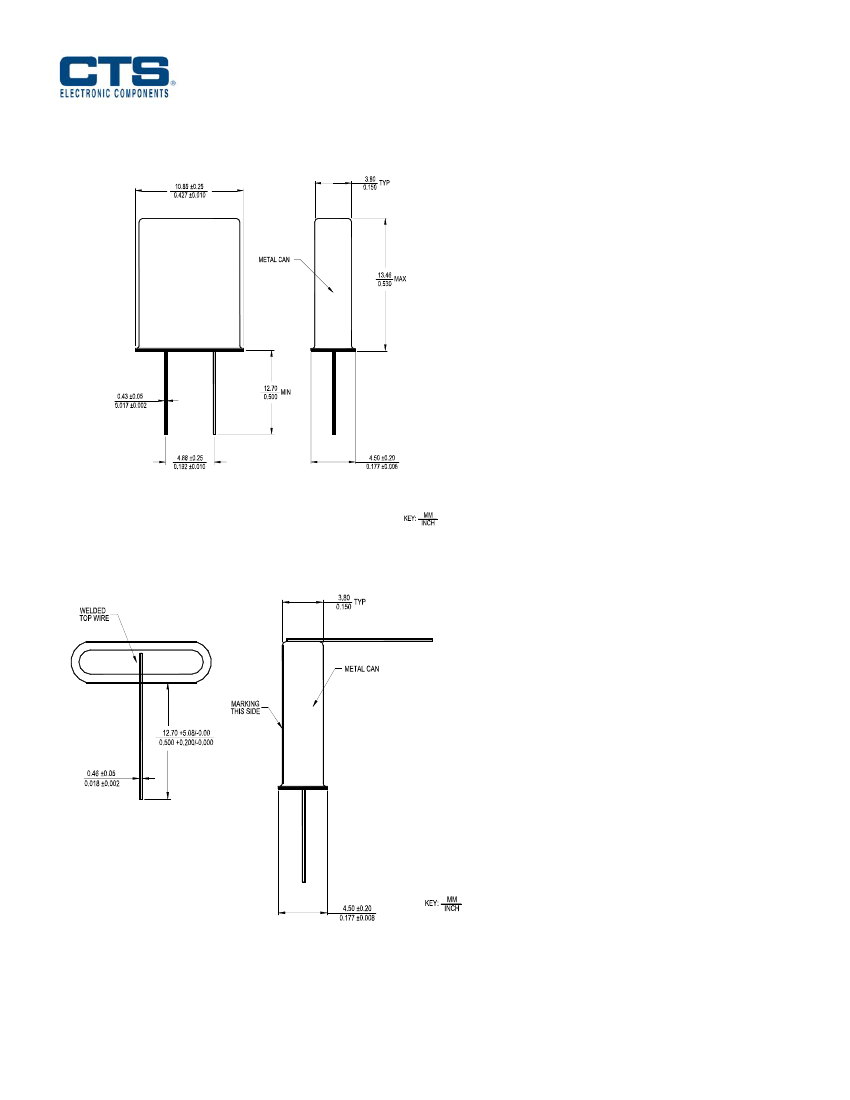

MP PACKAGE DRAWING
MARKING INFORMATION
1. MPXXXX - CTS Part Number.
[Per Ordering Information Format]
2. XXMXXXXXX – Frequency is marked with only
leading significant digits before the ‘M’ and 4 – 6
digits after the ‘M’ (including zeros).
Ex.
XMXXXXXX – 3M579545
XXMXXXXX – 14M31818
XXMXXXX – 20M0000
MP Series

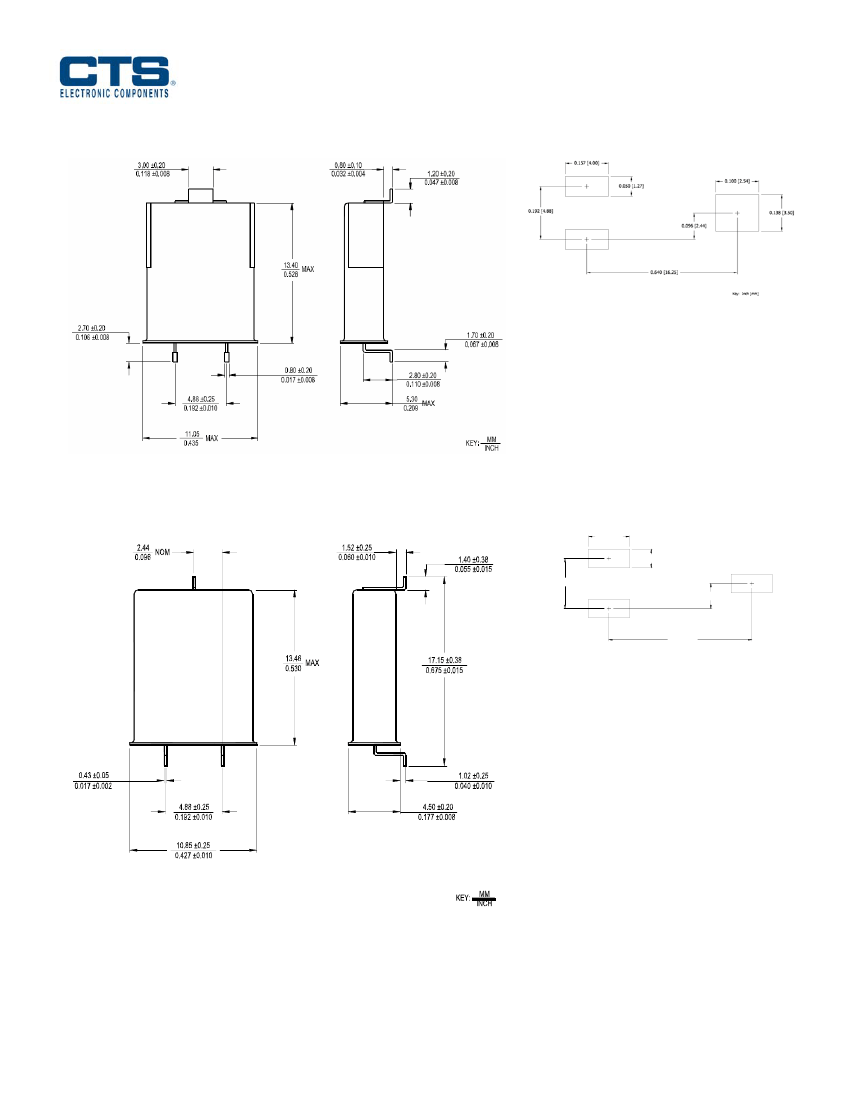

MP PACKAGE W/ WELDED TOP WIRE (TW) OPTION
OBSOLETE
Document No. 008-0308-0
MPXXXX
XXMXXXXXX
CTS** YYWW
Page 4 - 6
2. ** - Manufacturing Site Code.
3. YYWW – Date Code, YY – year, WW – week.
4. Complete CTS part number, frequency value and
date code information must appear on bag and
box labels.
NOTES
1. Lead finish (e1), SnAgCu.
Rev. H
Low Cost Quartz Crystal
MECHANICAL SPECIFICATIONS
MP-SMMC OPTION W/ METAL CLIP THIRD LEAD
SUGGESTED SOLDER PAD GEOMETRY
MP Series
MP-SM OPTION W/ WELDED TOP WIRE THIRD LEAD
Document No. 008-0308-0
MPXXXX
XXMXXXXXX
CTS** YYWW
SUGGESTED SOLDER PAD GEOMETRY
0.100 [2.54]
0.050 [1.27]
0.192 [4.88]
0.096 [2.44]
MPXXXX
XXMXXXXXX
CTS** YYWW
0.620 [15.75]
Key: Inch [mm]
OBSOLETE
Page 5 - 6
Rev. H
京公网安备 11010802033920号
EEWORLD
