CAT25-391JALF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CAT25-391JALF

CAT25-391JALF: DescriptionResistor Networks u0026 Arrays 390ohm 5% Concave 8resistors; CategoryPassive components; File Size200KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

CAT25-391JALF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CAT25-391JALF	-	-	View	Buy Now

CAT25-391JALF Overview

Resistor Networks u0026 Arrays 390ohm 5% Concave 8resistors

CAT25-391JALF Parametric

Parameter Name	Attribute value
Product Category	Resistor Networks & Arrays
Manufacturer	Bourns
RoHS	Details
Product	Arrays
Termination Style	SMD/SMT
Resistor Values	390 Ohms
Tolerance	5 %
Circuit Type	Bussed
Number of Resistors	8
Number of Pins	10
Temperature Coefficient	200 PPM / C
Operating Temperature Range	- 55 C to + 125 C
Package / Case	1608
Length	4 mm
Width	2.1 mm
Packaging	Reel
Lead Spacing	0.8 mm
Factory Pack Quantity	4000

Preview

Download Datasheet

View All

Features

■

Concave terminals

■

RoHS compliant*

■

8 bit multiple applications

■

Smallest bussed chip array

■

E 24 Series from 10 ohms to 1 megohm

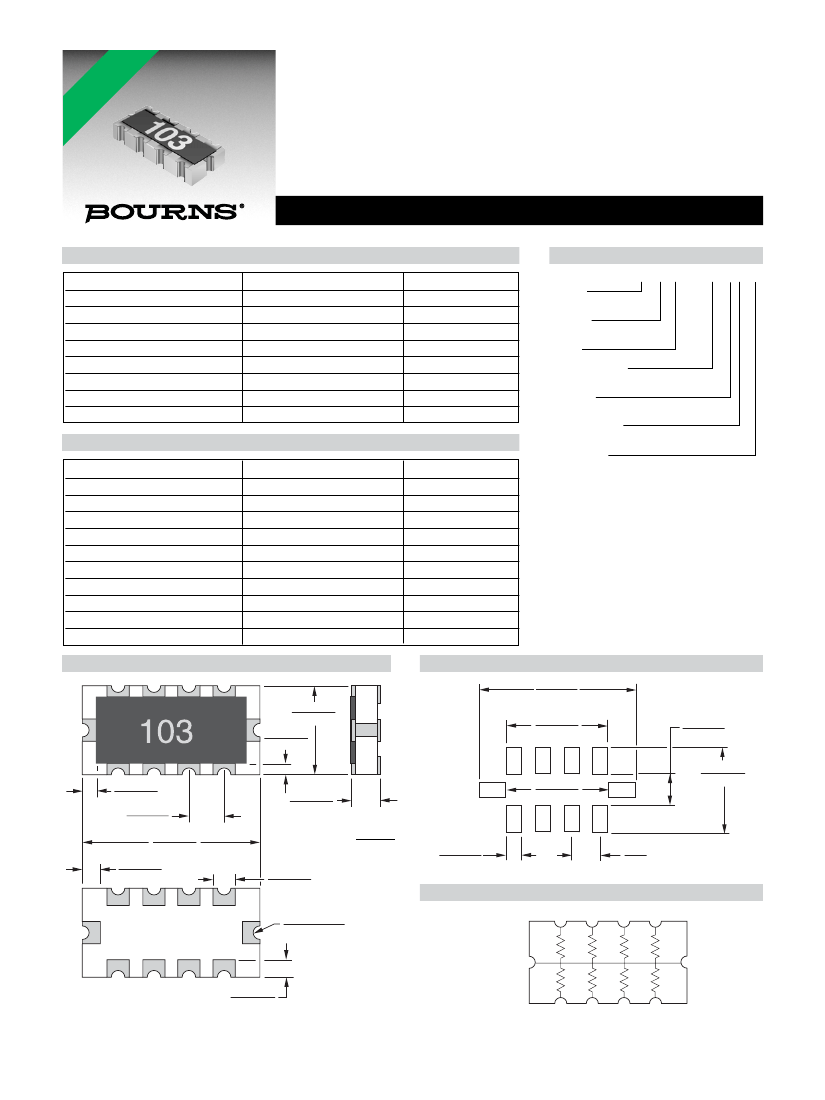

CAT25 - Thick Film Chip Resistor Arrays

Electrical Characteristics

Parameters

Number of Resistors

Resistance Range E24

Resistance Tolerance

Power Rating/Resistor

Rating Temperature

T.C.R.

Maximum Operating Voltage

Operating Temperature

CAT25

10 ohms to 1 megohm

62.5 mW

+70 °C

±200 ppm/°C

25 V

-55 °C to +125 °C

Test Method

How To Order

CA T 25 - 103 J A LF

Product

CA = Chip Array

Pin Style

T = Concave

Model

JIS-C-5202.5.1

JIS-C-5202.5.2

Resistance Value

103 = 10K ohms

Tolerance

J=5%

Electrical Circuit

A = 8 Resistors, Bussed Type

Environmental Characteristics

Speciﬁcation

Short Time Overload

Load Life

Humidity Load Life

Resistance to Soldering Heat

Terminal Strength

Temperature Cycle

Vibration

Insulation Resistance

Dielectric Withstanding Voltage

Lead Solderability

Characteristics

±(3 % +0.1 ohm)

±(5 % +0.1 ohm)

±(3 % +0.1 ohm)

±(1 % +0.1 ohm)

±(2 % +0.1 ohm)

±(1 % +0.1 ohm)

1000 megohms minimum

50 VRMS

>95 %

Test Method

JIS-C-5202.5.5

JIS-C-5202.7.10

JIS-C-5202.7.9

JIS-C-5202.6.4

JIS-C-5202.6.

JIS-C-5202.7.4

JIS-C-5202.6.3

JIS-C-5202.5.6

JIS-C-5202.5.7

JIS-C-5202.6.5

Terminations

LF = Tin-plated (RoHS compliant)

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

Outline Drawing

Land Pattern

4.8 - 5.2

(.190 - .205)

2.10 ± 0.20

(.083 ± .008)

0.25 ± 0.20

(.010 ± .008)

2.8 - 3.0

(.110 - .118)

0.9 - 1.1

(.035 - .043)

0.30 ± 0.20

(.012 ± .008)

0.80 ± 0.10

(.032 ± .004)

4.00 ± 0.20

(.157 ± .008)

0.35 ± 0.20

(.014 ± .008)

0.55 ± 0.10

(.022 ± .004)

3.3 - 3.4

(.130 - .133)

3.2 - 3.5

(.125 - .138)

DIMENSIONS:

(INCHES)

0.4 - 0.5

(.016 - .020)

0.80

(.032)

0.50 ± 0.20

(.020 ± .008)

DIA.

0.30 +0.10/-0.20

(.012 +.004/-.008)

Electrical Circuit

0.40 ± 0.20

(.016 ± .008)

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications
