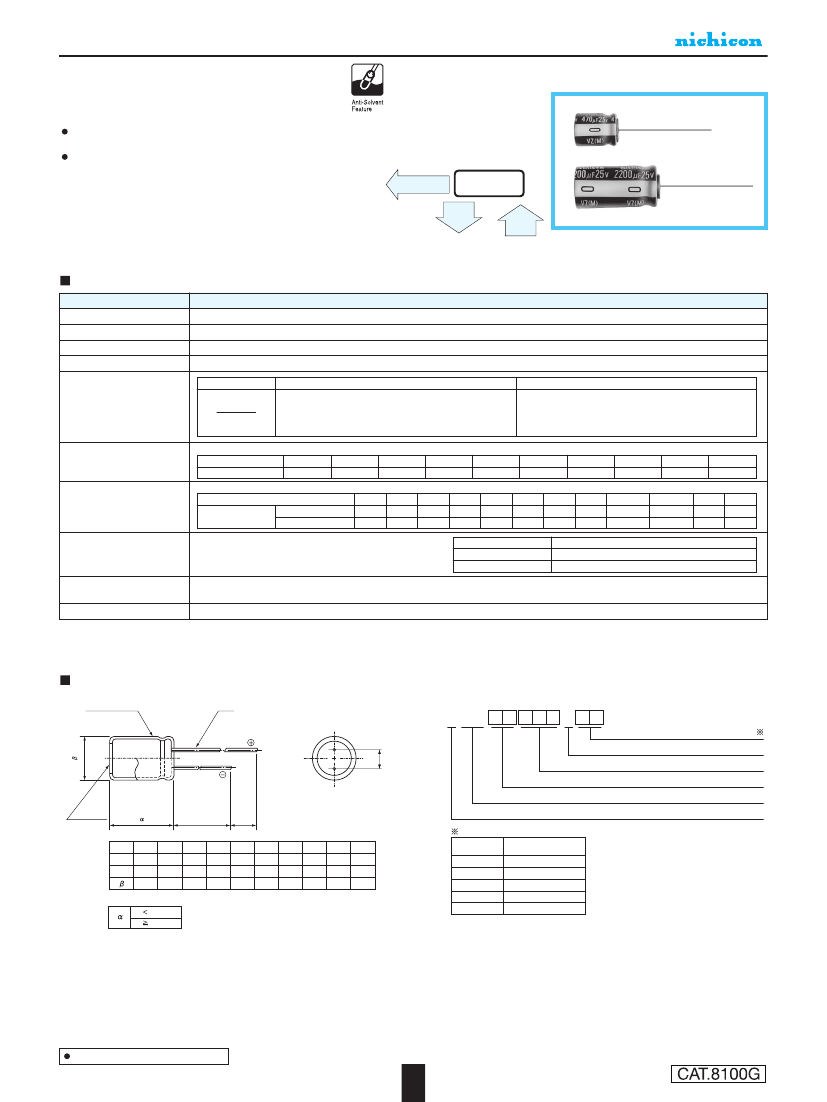

ALUMINUM ELECTROLYTIC CAPACITORS
UVZ
Wide Temperature Range
(Through 100V only)
Small case sizes as same as UVR, but operating
over wide temperature range of – 55 to +105˚C.
Compliant to the RoHS directive (2011/65/EU).
UPS
UPJ
High Rippie Current
High Reliability
UVZ
High
Temperature
Smaller
UVY
UVR
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Performance Characteristics
–55 to +105˚C (6.3 to 100V) , –40 to +105˚C (160 to 400V), –25 to +105˚C (450V)
6.3 to 450V
0.47 to 33000µF
± 20% at 120Hz, 20˚C
Rated voltage (V
)
6.3 to 100
After 1 minute's application of rated voltage at 20°C, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
160 to 450
After 1 minute's application of rated voltage at 20°C,
CV < 1000 :
I
= 0.1CV+40 (µA) or less
=
After 1 minute's application of rated voltage at 20°C,
CV > 1000 :
I
= 0.04CV+100 (µA) or less
Measurement frequency : 120Hz at 20˚C
Leakage Current
After 2 minutes' application of rated voltage at 20°C, leakage current
is not more than 0.01CV or 3 (µA), whichever is greater.
Tangent of loss angle (tan
δ)
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V
)
6.3
10
16
25
35
tan
δ
(
MAX.
)
0.28
0.24
0.20
0.16
0.14
Rated voltage (V)
Z– 25˚C / Z+20˚C
Impedance ratio
ZT / Z20 (MAX.
)
Z– 40˚C / Z+20˚C
50
0.12
50
2
3
63
2
3
63
0.10
100
2
3
100
0.08
160 to 315 350 to 450
0.20
0.25
400
6
10
450
15
—
Measurement frequency : 120Hz
Stability at Low Temperature
6.3
5
10
10
4
8
16
3
6
25
2
4
35
2
3
160 to 200 250 to 350
3
4
4
8
Endurance
The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 1000 hours at 105°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on black sleeve.
Radial Lead Type
Sleeve (P.E.T.)
Type numbering system (Example : 10V 330µF)
φ
d
1
2
3
4
5
6
7
8
9 10 11
Configuration
UV Z 1 A 3 3 1 MED
P ±
0.5
MAX
Capacitance tolerance (±20%)
Rated capacitance (330
µ
F)
Rated voltage (10V)
φD
+
Pressure
relief vent
(φ6.3up)
Series name
L
+
MAX
15
MIN
4
MIN
(mm)
Type
Configuration
φ
D
5
6.3
8 · 10
12.5 to 18
20 to 25
Pb-free leadwire
Pb-free PET sleeve
φD
P
φd
5
2.0
0.5
0.5
6.3
2.5
0.5
0.5
8
3.5
0.6
0.5
10
5.0
0.6
0.5
12.5
5.0
0.6
0.5
16
7.5
0.8
0.5
18
7.5
0.8
0.5
20
10.0
1.0
0.5
22
10.0
1.0
1.0
25
12.5
1.0
1.0
DD
ED
PD
HD
RD
(L 20) 1.5
(L 20) 2.0
•
Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
