Surface Mount Power Inductors
R*
-101K
-121K
-151K
-181K
-221K
-271K
-331K
-391K
-471K
-561K
-681K
-821J
-102J
-122J
-152J
-182J
-222J
-272J
-332J
-392J
-472J
-562J
-682J
-822J
-103J
-123J
-153J
-183J
-223J
-273J
-333J
-393J
-473J
-563J
-683J
-823J
-104J
-124J
-154J
-184J
-224J
-274J
-334J
-394J
-474J
-564J
-684J
-824J
-105J
-125J
-155J
-185J
-225J
Actual Size
Physical Parameters
Inches
Millimeters
A
0.350 to 0.370
8.89 to 9.40
B
0.180 to 0.200
4.57 to 5.08
C
0.165 to 0.185
4.19 to 4.70
D
0.050 Min.
1.27 Min.
E
0.050 to 0.070
1.27 to 1.78
F
0.200 (Ref. Only) 5.08 (Ref. Only)
Dimensions “A” and “C” are over terminals
Operating Temperature Range
–55°C to +130°C
Current Rating at 85° Ambient
45°C Rise
Maximum Power Dissipation at 90°C
0.414 W
Inductance
Measured at 1VAC with no DC Current
Incremental Current
The current at which the inductance
will be decreased by a maximum of 10% from its initial
DC value
Marking
DELEVAN, INDUCTANCE VALUE followed by a
P, and DATE CODE/LOT SYMBOL (YYWWL). Note: An
"R" before the date code/lot symbol indicates an RoHS
Compliant choke
Example: P3519-104J
DELEVAN
100uH P
1323A
Terminal Material and Final Finish
Series P3519: (Tin-Lead) Sn63Pb37 over (Copper) Cu
Series P3519R: (Tin-Silver-Copper) Sn96.5Ag3.0Cu0.5
over (Copper) Cu
Weight/Mass
0.490 Grams Maximum
Packaging
Tape & reel (24mm):
13" reel, 1500 pieces max.
SERIES P3519 FERRITE CORE
0.01
5.35
0.10
±10%
0.01
5.11
0.12
±10%
0.01
4.83
0.15
±10%
0.01
4.62
0.18
±10%
0.02
4.39
0.22
±10%
0.02
3.17
0.27
±10%
0.02
3.97
0.33
±10%
0.02
3.81
0.39
±10%
0.02
3.63
0.47
±10%
0.02
3.48
0.56
±10%
0.03
3.31
0.68
±10%
0.03
3.16
0.82
±5%
0.03
3.01
1.0
±5%
0.04
2.88
1.2
±5%
0.04
2.72
1.5
±5%
0.04
2.60
1.8
±5%
0.05
2.47
2.2
±5%
0.09
1.85
2.7
±5%
0.10
1.76
3.3
±5%
0.10
1.69
3.9
±5%
0.11
1.61
4.7
±5%
0.12
1.54
5.6
±5%
0.14
1.47
6.8
±5%
0.24
1.11
8.2
±5%
0.26
1.06
10
±5%
0.29
1.01
12
±5%
0.32
0.96
15
±5%
0.35
0.91
18
±5%
0.39
0.87
22
±5%
0.43
0.83
27
±5%
0.75
0.63
33
±5%
0.81
0.60
39
±5%
0.89
0.58
47
±5%
0.98
0.55
56
±5%
1.07
0.52
68
±5%
1.96
0.39
82
±5%
2.17
0.37
100
±5%
2.38
0.35
120
±5%
2.66
0.33
150
±5%
4.48
0.26
180
±5%
4.95
0.24
220
±5%
5.48
0.23
270
±5%
6.06
0.22
330
±5%
10.3
0.17
390
±5%
11.3
0.16
470
±5%
12.3
0.16
560
±5%
13.6
0.15
680
±5%
24.2
0.11
820
±5%
26.7
0.11
1000
±5%
29.3
0.10
1200
±5%
32.8
0.10
1500
±5%
35.9
0.09
1800
±5%
39.7
0.09
2200
±5%
13.66
12.47
11.15
10.18
9.21
8.31
7.52
6.92
6.30
5.77
5.24
4.77
4.32
3.94
3.53
3.22
2.91
2.63
2.38
2.19
1.99
1.83
1.66
1.50
1.37
1.25
1.12
1.02
0.92
0.83
0.75
0.69
0.63
0.58
0.52
0.48
0.43
0.39
0.35
0.32
0.29
0.26
0.24
0.22
0.20
0.18
0.17
0.15
0.14
0.12
0.11
0.10
0.09
Tolerances: J =
±5%
K =
±10%
(±
5% Tolerance is Standard for Values Above 0.68uH)
*Complete part # must include series # PLUS the dash #
All product specifications and data contained herein are subject to change without
notice to improve reliability, function, performance, design or otherwise.
Made In the U.S.A.
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com
12/2014
er
w
Po
SERIES
P3519R
P3519

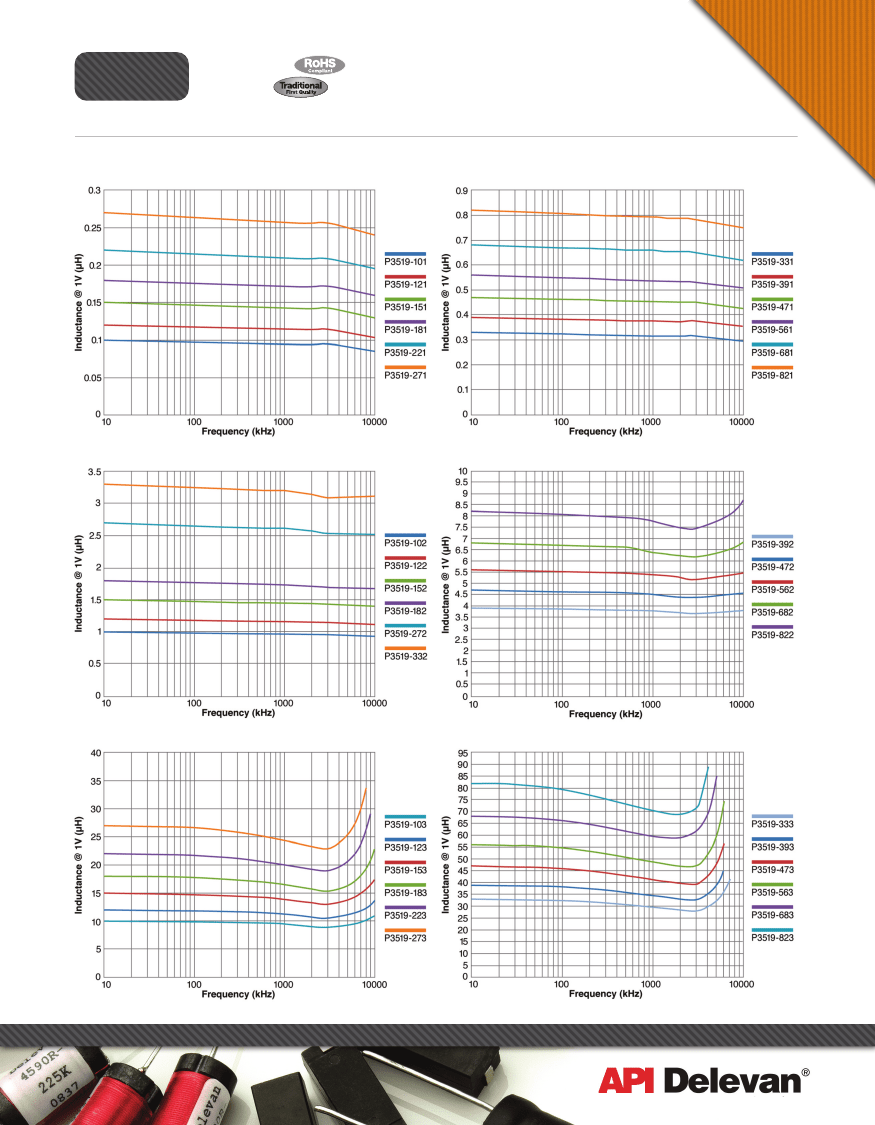

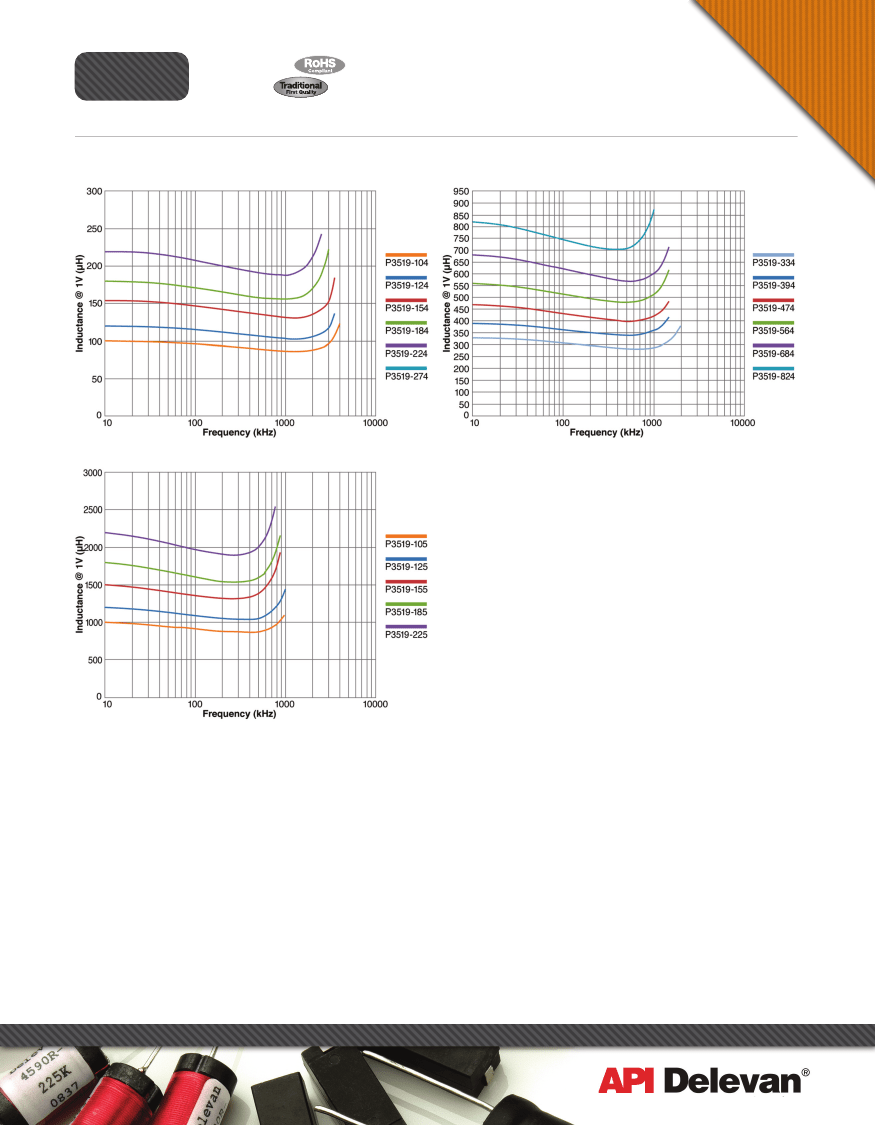

Inductance vs. Frequency
