• Advanced design provides improved withstand voltage characteristics.
• TDK's proprietary intemal electrode structure and the use of low-
dielectric-strength material result in highly reliable performance in high-
voltage applications.
• Complies with ISO8802-3 for LAN applications.
• Designed exclusively for reflow soldering.
• A slit of about 1mm on the circuit board is recommended to improve
removal of the flux after soldering.
• Ensure that this product is completely dried following washing.
• Because this product will be subjected to high voltages,use only low-
activity rosin flux (with 0.2% max. of chlorine).
• Using this product with aluminum circuit boards must be considered a
special implementation because the high heat stress levels are involved.
In case of using aluminum circuit boards, please contact TDK.
Applications
•
•
•
•
•
•
Inverter circuits with a liquid crystal backlight
LAN card
General high voltage circuits
Noise bypass for power supply
Transceiver for LAN
Hub, etc.
Cautions
Shape &
Dimensions
W
L
T
L
W
T
B
G
Body Length
Body Width
Body Height
Terminal Width
Terminal Spacing
G
B

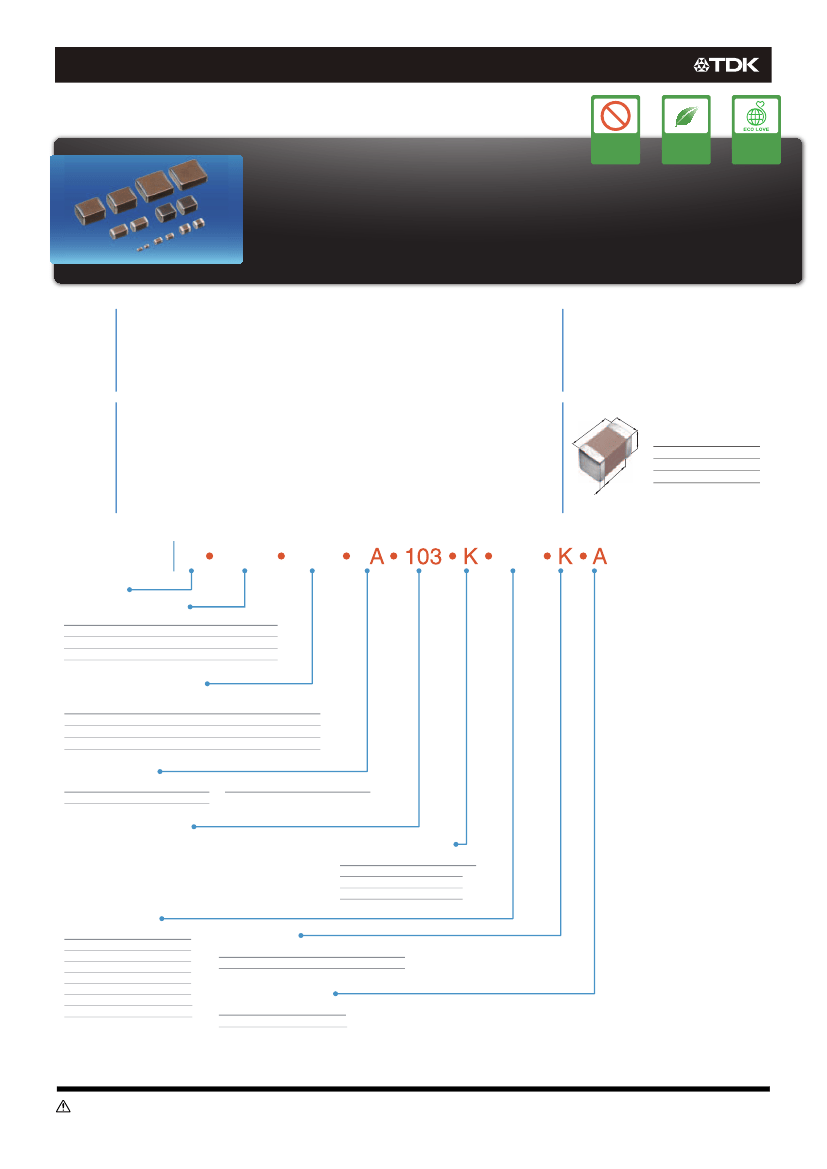

Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
C3225
C4520
C4532
C5750
Length
3.20 ± 0.40
4.50 ± 0.40
4.50 ± 0.40
5.70 ± 0.40
C 4532 X7R 3
Width
Terminal
2.50 ± 0.30 0.20 min.
2.00 ± 0.30 0.20 min.
3.20 ± 0.40 0.20 min.
5.00 ± 0.40 0.20 min.
200
Temperature Characteristics
Temperature
Characteristics
C0G
CH
JB
X7R
Temperature Coefficient or
Capacitance Change
0±30 ppm/°C
0±60 ppm/°C
±10%
±15%
Temperature
Range
-55 to +125°C
-25 to +85°C
-25 to +85°C
-55 to +125°C
Rated Voltage (DC)
Code
3A
3D
Voltage (DC)
1,000V
2,000V
Code
3F
Voltage (DC)
3,000V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first and
second significant figures of the capacitance. The third digit
identifies the multiplier.
Ex.
100=10pF; 101=100pF; 333=33,000pF
Capacitance Tolerance
Code
F
J
K
M
Tolerance
± 1pF
± 5%
± 10%
± 20%
Nominal Thickness
Code
085
110
130
160
200
230
250
280
Thickness
0.85 mm
1.10 mm
1.30 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
Packaging Style
Code
A
K
Style
178 mm Reel, 4 mm Pitch
178 mm Reel, 8 mm Pitch
Special Reserved Code
Code
A
C
Description
TDK Internal Code
TDK Internal Code
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
